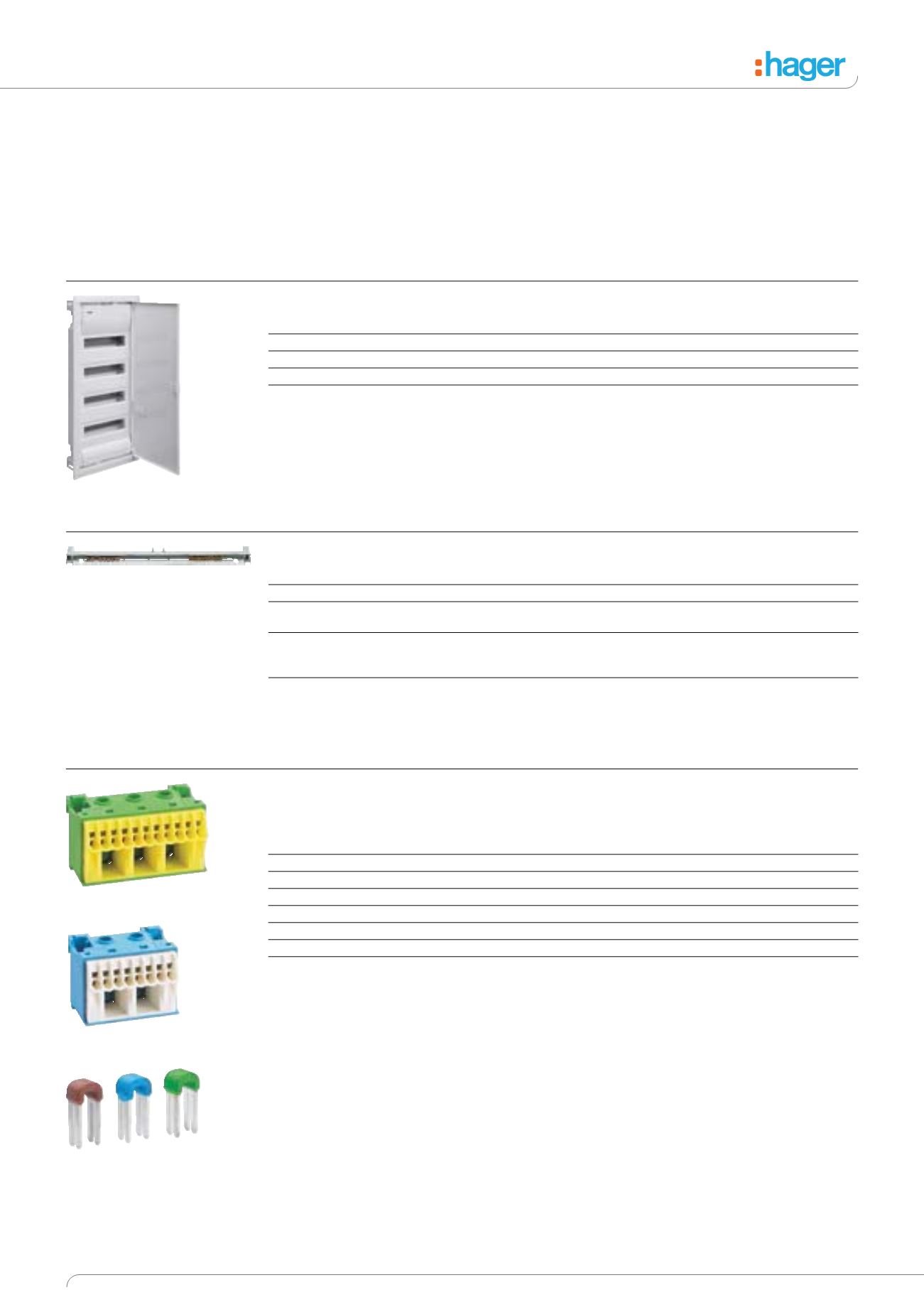

General Catalogue • Enclosures
Volta II Flush Mounting Enclosures & Accessories
IP30 Flush mounting
enclosures with doors
1-4 rows
12-48 modules
63A max total load
• Enclosure manufactured from
insulated material
• Frame and door manufactured
from metal
• Reversible door
• Delivered with earth block,
blanking clips and circuit
identification labelling
• Integrated spirit level
Note: Not suitable for single
module RCBO’s
For dimensions see page 2.20.
Volta II Enclosures
Description
Quick connect earth terminals
Cat ref.
1 Row 12 Modules
3 x 25mm
2
+ 11 x 4mm
2
VU12EP
2 Rows 24 Modules
5 x 25mm
2
+ 17 x 4mm
2
VU24EP
3 Rows 36 Modules
6 x 25mm
2
+ 20 x 4mm
2
VU36EP
4 Rows 48 Modules
8 x 25mm
2
+ 28 x 4mm
2
VU48EP
Volta II Accessories
Description
Characteristics
Cat ref.
Key lock
Supplied with 2 keys replaces original catch
VZ302N
Connection assembly
2 x (3 x 16mm
2
+ 4 x 10mm
2
)
VZ403
single phase 63A
270mm wide
Connection assembly 63A
2 x (3 x 16mm
2
+ 4 x 10mm
2
)
VZ428
1 x (4 x 16mm
2
+ 7 x 10mm
2
)
270mm wide
Mounting kit for partition walls
For mounting flush enclosures in
VZ405N
Comprising:
partition walls
• 4 support clamps
• 4 screws
Quick Connect Terminals
Description
Length
No. Quick
No. Screw
Cat ref.
Cat ref.
(mm)
Connect
Terminals
Neutral
Earth
Terminals
25mm
2
4mm
2
6 Connection Terminal Block
30
5
1
KN06N
KN06E
10 Connection Terminal Block
45
8
2
KN10N
KN10E
14 Connection Terminal Block
60
11
3
KN14N
KN14E
18 Connection Terminal Block
75
13
5
KN18N
KN18E
22 Connection Terminal Block
90
16
6
KN22N
KN22E
26 Connection Terminal Block
105
19
7
KN26N
KN26E
Pack of 10 Terminal Interconnectors
-
-
KN99N
KN99E
VZ403
KN14E
KN10N
KN99E
VU48EP
