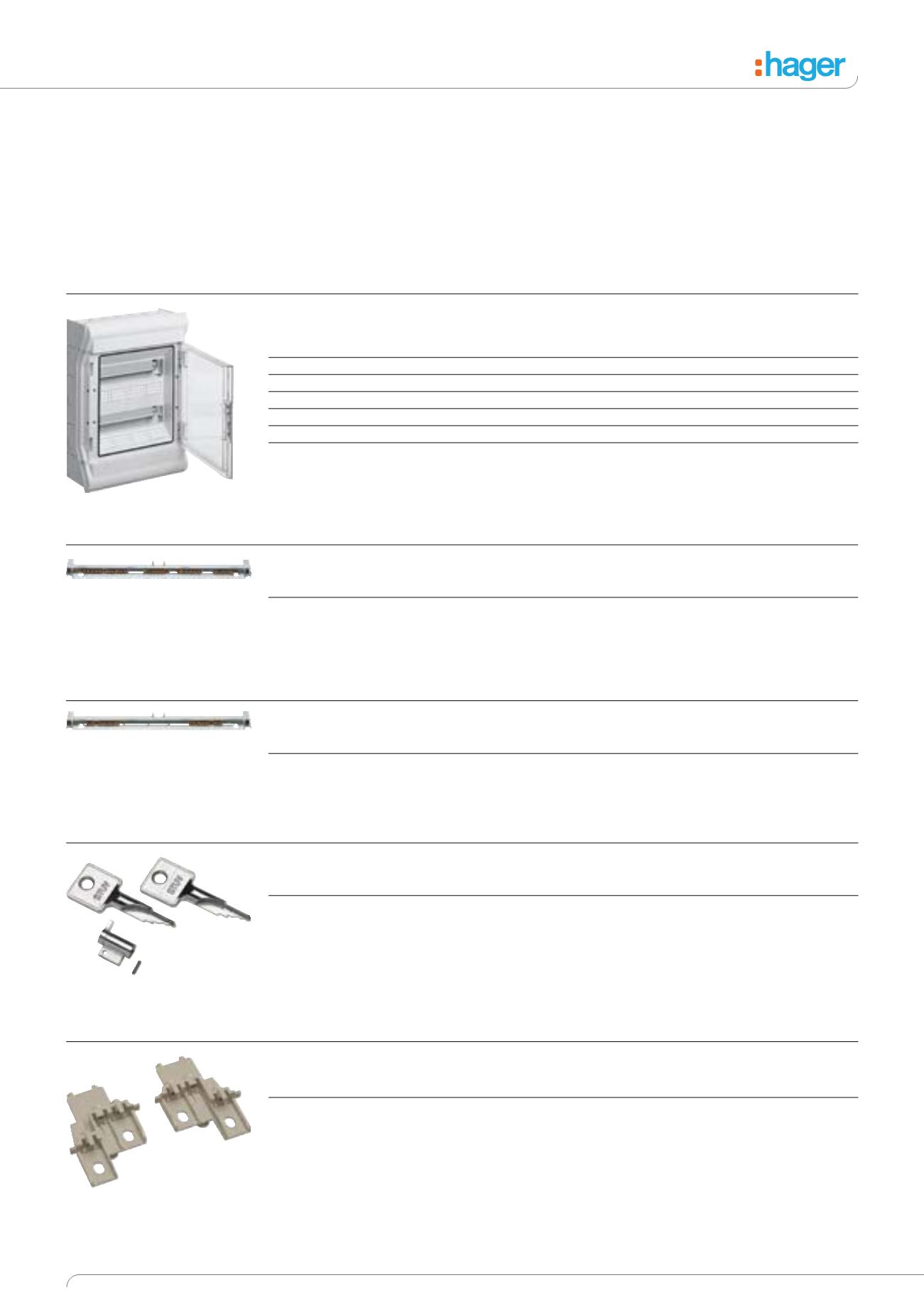

General Catalogue • Enclosures
Vector II Weather Proof Enclosures & Accessories
Enclosure with door
1 row for 3, 6, 10 and 12
modules
2 row for 24 modules
3 row for 36 modules
Adjustable depth DIN rail (except
VE103U).
Supplied with sealing plugs to
re-instate IP rating after fixing.
Front cover sealing.
Door operation
3-10 modules - vertical hinging
retained in open position at 90º
12-36 modules - horizontal
hinging.
Hinging reversible (left or right).
Colour: RAL 7035 (light grey).
Wiring ducts
12 - 36 module
enclosures/mini wiring channels
left and right ensures conductors
are neatly dressed.
IP 55
: AC 400V.
insulation class: class II
For dimensions see page 2.19.
Vector II Enclosures
Description
Moulded blanks
Cat ref.
(In front cover)
1 row, 3 modules N: 1 x 25 + 3 x 16, E: 1 x 25 + 5 x 16
2 x 1/2
VE103U
1 row, 6 modules N: 1 x 25 + 5 x 16, E: 1 x 25 + 7 x 16
2 x 1
VE106U
1 row, 10 modules N: 1 x 25 + 9 x 16, E: 1 x 25 + 11 x 16
2 x 1
VE110U
1 row, 12 modules N: 1 x 25 + 10 x 16, E: 1 x 25 + 13 x 16
VE112U
2 rows, 24 modules N: 1 x 25 + 16 x 16, E: 1 x 25 + 16 x 16
VE212U
3 rows, 36 modules N: 1 x 25 + 19 x 16, E: 1 x 25 + 19 x 16
VE312U
Sliding Support
Description
Cat ref.
1 Set = 2 Supports
VZ744
for fixing of additional terminal supports
in bottom part of enclosure (VE112U and above)
Earth and Neutral for Single Phase Connection Assembly
Description
Cat ref.
2 x (3 x 16mm
2
+ 4 x 10mm
2
) 270mm wide
VZ403
In: 63A
To fit 12 module wide enclosure only
Note: VZ744 Supports required
Terminal Support Assembly
Description
Cat ref.
3 x (3 x 16mm
2
+ 2 x 10mm
2
) 270mm wide
VZ428
N: 1 x (5 x 16mm
2
+ 6 x 10mm
2
)
In: 63A
To fit 12 module wide enclosure only
Note: VZ744 Supports required
Key Lock
Description
Cat ref.
For all enclosures with 2 keys
VZ311
VE212U
VZ311
VZ744
VZ403
VZ428
