2.7

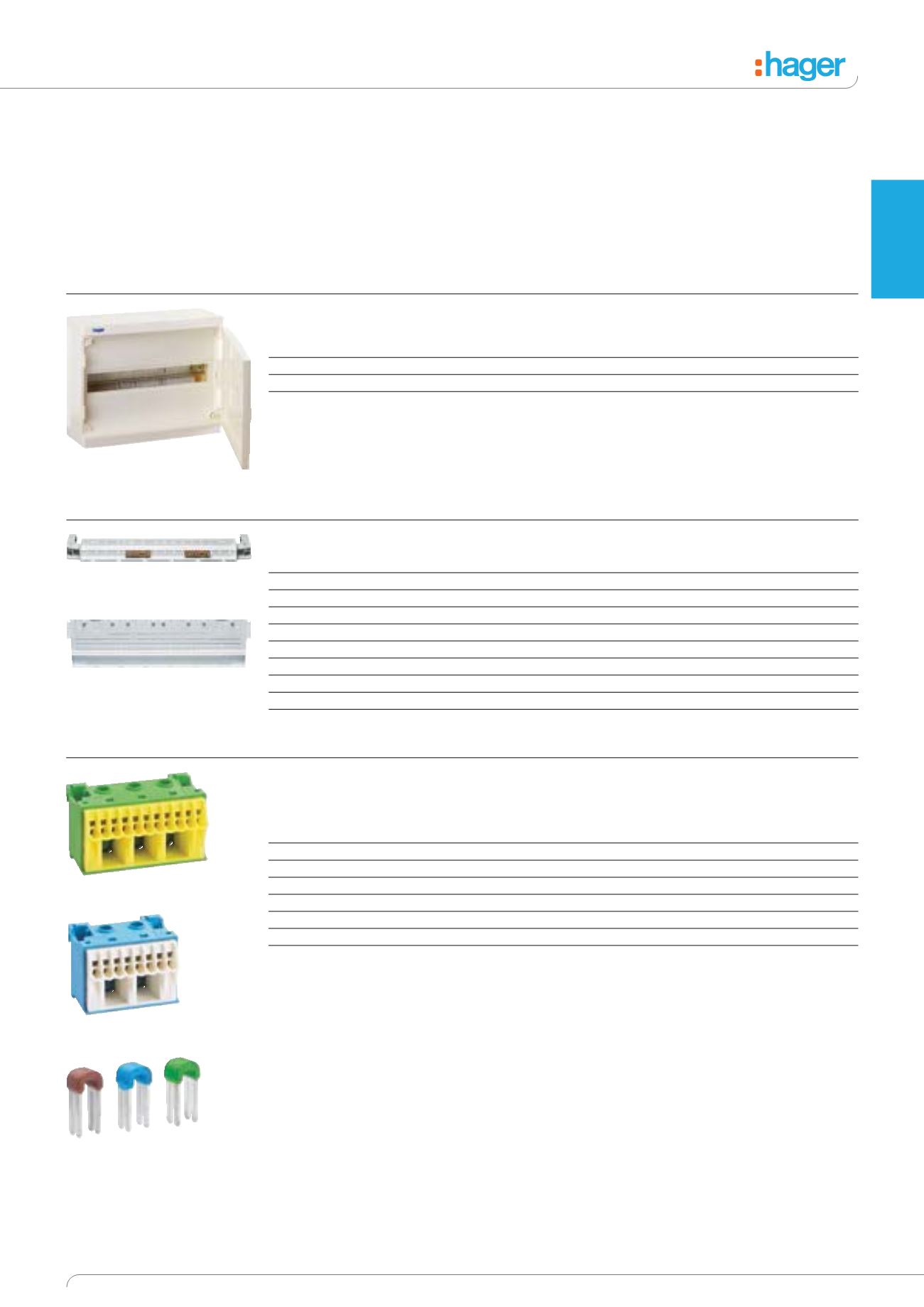

Vega Surface Mounting Enclosures & Accessories
IP40 surface mounting
enclosures
with transparent or plain doors;
1-3 rows 18 to 54 modules.
63A max. total load.
Enclosures are of an insulating
material coloured white
RAL 9016.
The enclosures feature a
removable chassis with DIN rails
for ease of installation.
Top and bottom cable entry
plates are removable and
interchangeable. The door is also
reversible with an integral flush
handle.
Options
• Door lock
Note: Not suitable for single
module RCBO’s.
For dimensions see page 2.20.
Vega Enclosures
Description
Quick connect earth terminals
Cat ref.
Cat ref.
Plain door
Glazed door
1 row, 18 modules
4 x 25mm
2
, 14 x 4mm
2
VB18B
VB18R
2 rows, 36 modules
7 x 25mm
2
, 25 x 4mm
2
VB36B
VB36R
3 rows, 54 modules
10 x 25mm
2
, 34 x 4mm
2
VB54B
VB54R
Vega Accessories
Description
Pack qty
Cat ref.
Key lock for Vega Enclosures
1
VZ310
Connection Assembly 63A 2 x (3 x 16mm
2
+ 4 x 10mm
2
)
1
VZ708
Connection Assembly 63A 2 x (3 x 16mm
2
+ 2 x 10mm
2
)
1
VZ709
Coupling pieces for joining two enclosures
1
VZ703
Replacement cable entry plates with circular cut outs
10
VZ706
Replacement cable entry plates with rectangular cut outs
10
VZ707
Blanking clips 1/2 module (8.7mm)
50
P031F
Blanking clips 1 module (17.5mm)
50
P032F
Blanking clips18 module
10
JP015
Quick Connect Terminals
Description
Length
No. Quick
No. Screw
Cat ref.
Cat ref.
(mm)
Connect
Terminals
Neutral
Earth
Terminals
25mm
2
4mm
2
6 Connection Terminal Block
30
5
1
KN06N
KN06E
10 Connection Terminal Block
45
8
2
KN10N
KN10E
14 Connection Terminal Block
60
11
3
KN14N
KN14E
18 Connection Terminal Block
75
13
5
KN18N
KN18E
22 Connection Terminal Block
90
16
6
KN22N
KN22E
26 Connection Terminal Block
105
19
7
KN26N
KN26E
Pack of 10 Terminal Interconnectors
-
-
KN99N
KN99E
KN14E
KN10N
KN99E
VB18B
VZ708
VZ707
Enclosures
