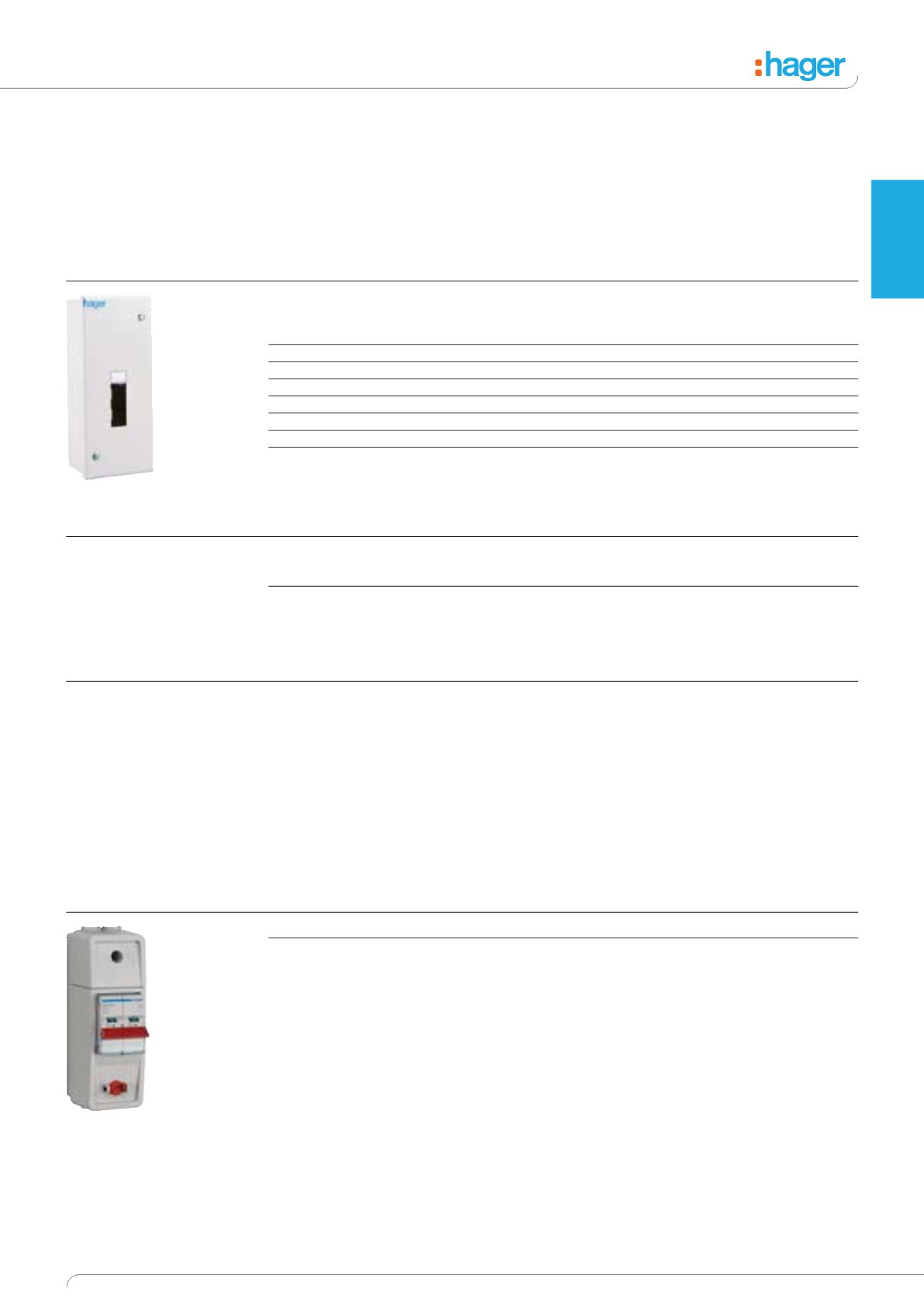

2.9
Enclosures and Accessories
Meter Box Switch
Accessories
Description
Cat ref.
Keylock with 2 keys suitable for all enclosures fitted with door - IU enclosure
IKL1
Description
Cat ref.
Meter Box Switch
VC02SW
1 row boxes 1-5 modules
This range is ideally suited for
the installation of individual
modular devices. (RCCBs,
MCBs, RCBO’s, Switch
Disconnectors etc).
The range is available without
door, with plain door or with
glazed door.
Where larger cables need to be
accommodated for switch
disconnectors etc extra cabling
space is provided in the
extended height versions.
All boxes from 2-5 modules are
fitted with an earth bar as
standard and for those with
doors the catch can be replaced
with the optional key locking
facility.
These enclosures feature:
• Ample wiring space
• Plain or glazed doors
• Optional key lock
For dimensions see page 2.21.
VC02SW is an enclosed switch
disconnector suitable for meter
box applications where an
isolating switch between the
electricity meter and consumer
unit is required.
It benefits from twin cable
clamps which have been
additionally proven to secure
insulated and sheathed meter
tales with conductor sizes
ranging from 16-35mm2. This
unique feature greatly reduces
the strain on the switch terminals
reducing the likelihood of loose
electrical connections.
The anti-tamper screw cap is
a unique feature of VC02SW,
allowing the supply authority to
simply secure the main cover
in place following installation.
The device can also be locked
in the open/off position with the
appropriate Hager accessory.
VC02SW conforms with
BS EN 60947-3:2009+A1:2012
which facilitates the installation
to comply with BS 7671 IET
Wiring Regulations, in particular
guidance given in table 53.4.
For dimensions see page 2.21.
Enclosures
Description
Cat ref.
Cat ref.
Cat ref.
Without door
Plain door
Glazed door
1 Row 1 Module Suitable for 1 Module RCBO
IU41
-
-
1 Row 2 Modules
IU2
IU2/D
IU2/GD
1 Row 2 Modules Extended Height
IU42*
IU42/D*
-
1 Row 3 Modules
IU3
IU3/D
-
1 Row 4 Modules
IU4
IU4/D
-
1 Row 4 Modules Extended Height
IU44*
IU44/D*
IU44/GD*
1 Row 5 Modules Extended Height
IU45*
-
-
Note: Recommended maximum cable capacity
* extended height = 35mm
2
all other references = 6mm
2
VC02SW
IU41
Enclosures
