9.36 General Catalogue • klik • Technical
Klik 7 Pin
Ch ssis Mount Socket
16A Rated to BS5733
Chassis Mount Range
KLPB/3
KLPJ/4
KLPP/5
KLPT/6

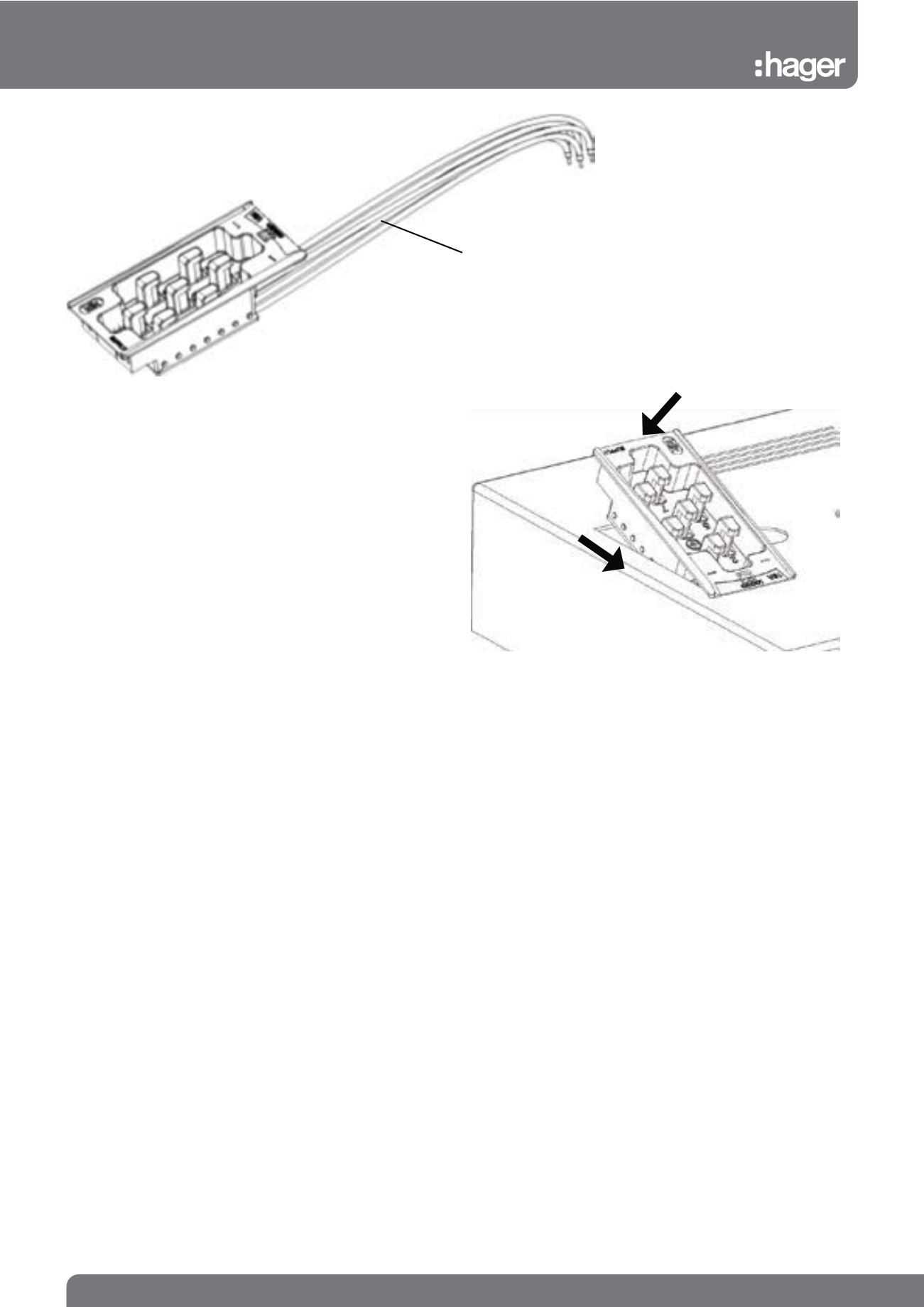

Installation:
Create aperture in Luminaire if not already existing.
1. Insert cables through aperture
2. Locate fixed clips of socket in position at one end of aperture and
push in.
3. Push down bottom end of connector until it clips down onto
luminaire
Aperture Size: 97mmx42mm (≤1.2mm wall)
Single core 1.00mm2 conductors.
3.
2.
Terminating Cables:
KLPB/3 (Standard)
Brown - Switched line
Blue - Natural
Green/Yellow - CPC
KLPJ/4 (Standard + Emergency)
Brown - Switched Line
Blue - Neutral
Green/Yellow - CPC
Black - Emergency Line
KLPP/5 (Digital)
Brown - Line
Blue - Neutral
Green/Yellow - CPC
Orange - DA+
White - DA-
KLPT/6 (Digital + Emergency)
Brown - Line
Blue - Neutral
Green/Yellow - CPC
Orange - DA+
White - DA-
Black - Emergency Line
