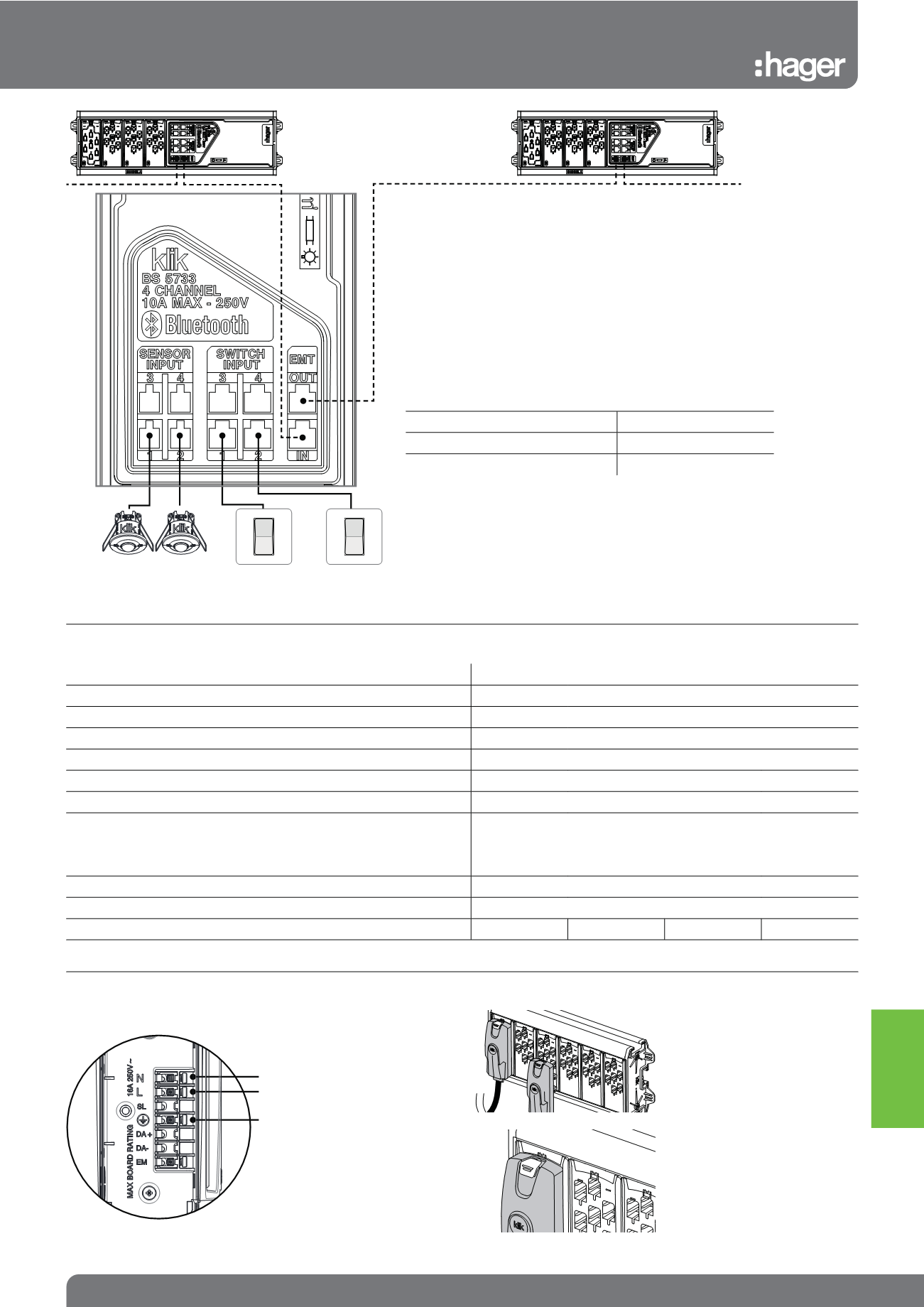

9.41
Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
Supply input connection
Pluggable
16A
LOCKED
16A
LOCKED
16A
LOCKED
16A
LOCKED
16A
LOCKED
PRESS
RELEASE
RELEASE
RELEASE
16A
LOCKED
PRESS
16A
LOCKED
16A
LOCKED
16A
LOCKED
PRESS
•
Connecting the supply lead:
plug in and push down
•
Disconnecting the supply lead:
press button and push up.
Plug colour coding
White: Luminaire Lead
Red: Luminaire & Emergency
Black: Link Lead
Hard wired
Neutral
Line
CPC
Klik 7 in
Lighting Connection Module
Up to 4 switch inputs
per LCM
Up to 4 sensor inputs per
LCM (part ref: KLCM-OS)
•
Plug-in sensor and switch control
•
Any port can be configured via the KlikLink App.
•
Grouping LCMs via RJ45 leads for corridor hold and groups for emergency
test
•
Programmed via the KlikLink app. Download from the AppStore.
Wiring accessories from the Sollysta Grid range
Centre off retractive switch module WMGS13R
White moulded Grid Plates
WMGPx (1,2,3,4,6 & 8) G
Grid Frames
WMGFx (1,2 & 3/4) G
Number of channels
4
Number of outputs per channel
3 (hard wired LCM has 4 outputs on channel A)
Number of sensor inputs
4 (KLCM-OS)
Number of switch inputs
4
Supply Voltage
230V AC 50Hz
Rated current
10A (total load)
Rated current each connector
10A
Complies with
BS 5733:2010,
BS EN 60669-2-5
BS EN 61535:2009 - (Excluding clauses 10.1 and 10.3 due to
Aluminium enclosure)
IP protection
IP20
Connection for programming
Bluetooth Smart (Bluetooth 4) (only available on Apple iPad)
Dimensions
Height 145mm Width 440mm Depth 58mm Weight 1.9kg
Technical Characteristics
Lighting
Connection
& Control
