General Catalogue • klik • Technical
Klik 7 in
Lighting Control Module

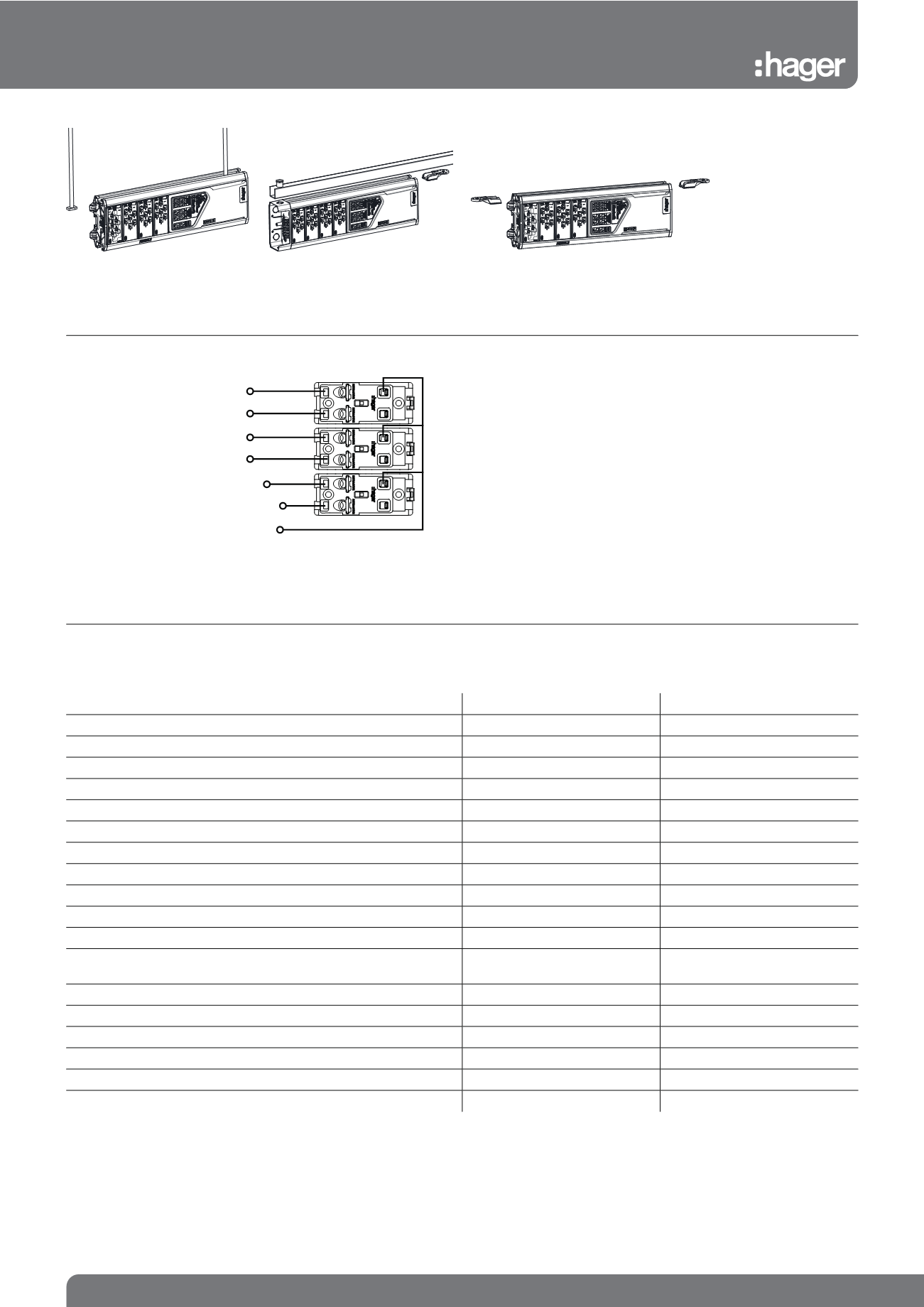

Fixing Methods
Drop Rods
Direct: e.g. nail gun or screw fixing
(not possible for hard-wire KLCM413W)
Trunking
(Not possible for plug-in
KLCM412P)
Switch inputs - 1 to 4 (retractive wall switch ref: WMGS13R)
Emergency test in & out
Occupancy Sensor Technical Characteristics
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown
Brown/White
Override - All Outputs On
Override - All Outputs Off
Corridor Hold Line
Emergency Test (Timer 1)
Emergency Test (Timer 2)
Emergency Test (Timer 3)
Common
Not Used.
COM
LOOP
N
L1
L2
COM
LOOP
N
L1
L2
COM
LOOP
N
L1
L2
Orange/White
Scene 1
Orange
Scene 2
Green/White
Scene 3
Blue
Scene 4
Brown/White
On/Dim Up
Blue/White
Off/Dim Down
Brown
0V (Common)
Green
12V (Not Used, must not be connected.)
Technical Characteristics
KLCM-3OS
KLCM-5OS
Supply Voltage
SELV (12VDC)
SELV (12VDC)
Detection Area
360º 5m to 15m
360º 15m
Receiver Class
2
2
Parasitic Power
534uA
874uA
Duration of lighting output operation
Via KlikLink App & LCM
Via KlikLink App & LCM
Luminocity threshold
Via KlikLink App & LCM
Via KlikLink App & LCM
Recommended installation height
2.5m
2.5m
Operating temperature
-20ºC to +50ºC
-20ºC to +50ºC
Storage temperature
-35ºC to +70ºC
-35ºC to +70ºC
Insulation class
II
II
Protection rating
IP41
IP41
Standards
BS EN55015:2013, BS
EN61547:2009
BS EN55015:2013, BS
EN61547:2009
Maximum installation altitude
2000m
2000m
Polution degree
2
2
Connection
RJ11 6P4C
RJ11 6P4C
Dimensions
High: 70mm, Diameter: 101mm High: 70mm, Diameter: 101mm
Weight
110 grams
110 grams
Mounting hole diameter
85mm
85mm
