Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689

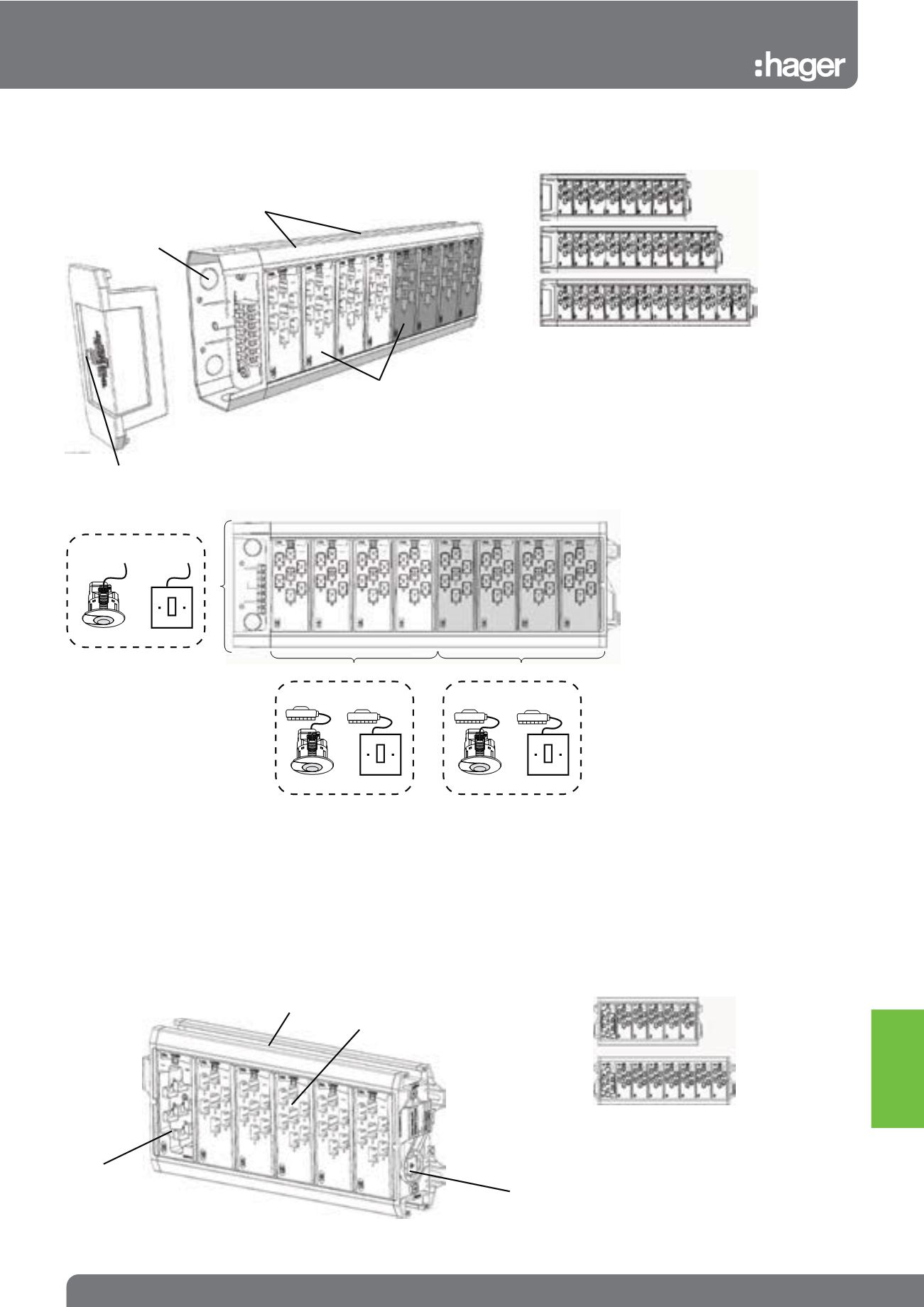

Dual Channel Lighting Marshalling Boxes (LMB) - Fixed Wiring
16A Rated LMB Complying to BS 5733
Dual Supply Lighting Marshalling Boxes (LMB) - Pluggable.
2 x 16A Rated LMB Complying to BS 5733
Designed for use with dual supply where independent control of
each supply is required.
•
Dual supply - Essential & Non-essential from one box.
•
Independent control of each supply
•
Wall switch* override & dimming
*When wall switch is used it must be connected on the same
side as the sensor.
Control
Channel Nut
Slots Top & Rear
20mm Cut-out
(x4)
Retained Cover
Screw
Nail gun/screw
fixing accessory.
1 plug in supply
on both sides.
(No wiring
required)
Channel nut
slot top
Multi function connector -
Luminaire, occupancy sensors
etc. in any compatible connector
Multi-function
Connectors - Luminare,
Occupancy Sensors,
Switches etc.
KLMB244W
KLMB255W
KLMB266W
KLMB255DSP
KLMB277DSP
Klik 7 Pin
Lighting Marshalling Boxes
+/or
+/or
+/or
cctA Control
cctA Control
cctB Control
cctA
cctB
1. cctA can be controlled by
using pluggable sensors and or
pluggable switch. Alternatively
hard wired sensors and/or
switches can be used.
2. cctB must use pluggable
sensors and/or switches for
control.
Lighting
Connection
& Control
