6.7
Presence Detectors
Used for automatic lighting
control or heating of the
premises based on occupancy
and lighting level.
Principal applications - Offices,
corridors, conference rooms,
classrooms, etc
Functions - ON/OFF control, Up/
Down control, heating
control, scene selection, time
delay and priority setting, setting
dimming levels, Master/slave
function.
The bi-directional detector head
can be oriented at 90° to adapt
the zone of detection depending
on the configuration of the room.
A large area of detection - with
the help of two integrated
sensors, these products are able
to detect movements in a large
area and detect presence
(person working in office) in a
smaller area.
Products delivered with BCU
(coupling unit to the bus)
2 Versions of Detectors
• 2 channel detector with On/
Off control AND
• 1 channel lighting regulator
detector (for maintaining
constant light)
Installation
Programming is carried out by
configuration device TX100GB
via media coupler/ETS.
For technical details see page
6.29.

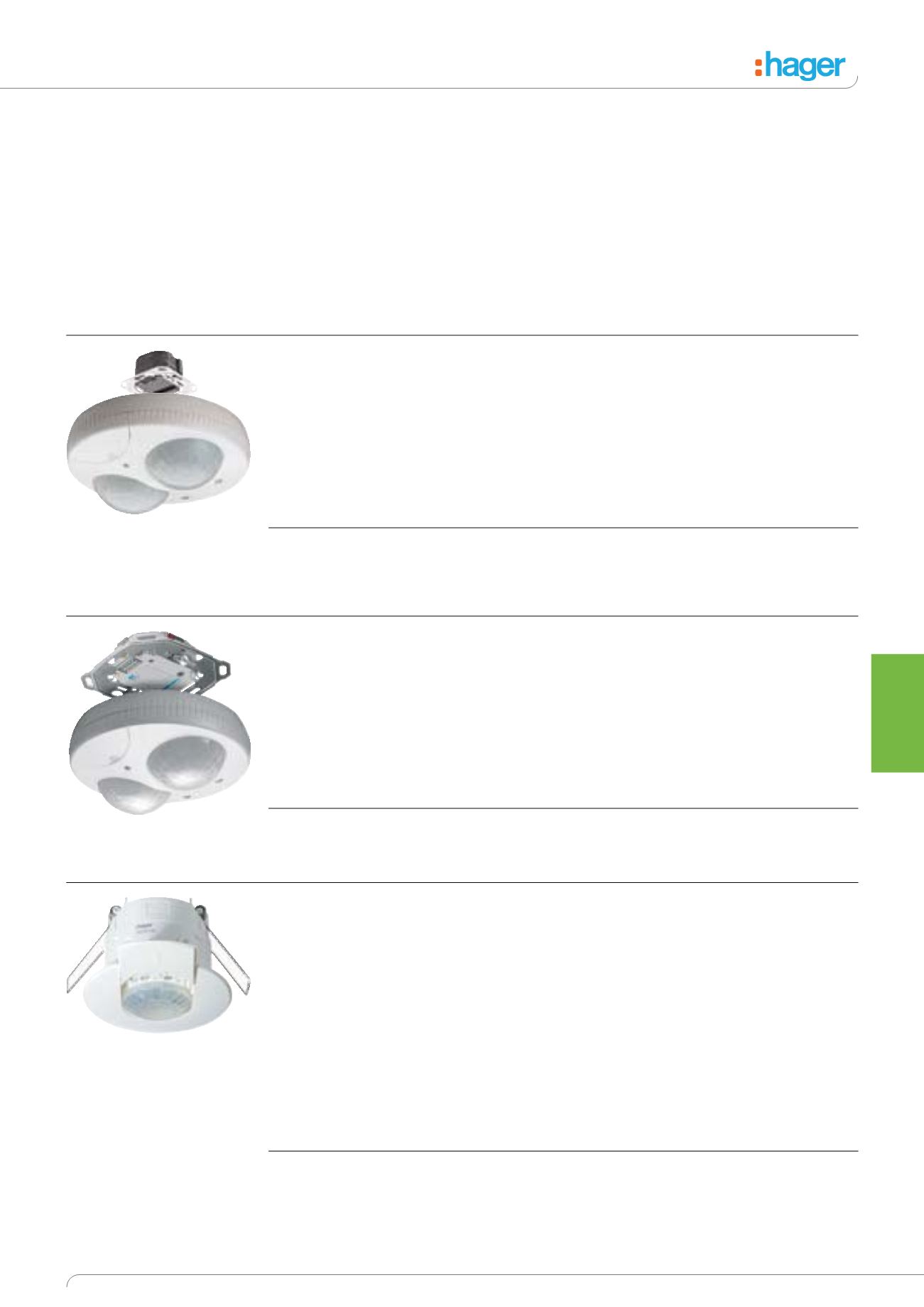

2 Channel Presence Detector 360º
Channel 1: Switching based on presence and lux level. Switching takes place when presence is detected
and the lux level is below the set point. Lux level settings - 5, 100, 200, 300, 500, 800, On permanent,
Delay off time - 1min to 30min Application - switching off lighting, blinds, curtains or shutters.
Channel 2: Switching based on presence only. Uses both delay on and delay off for switching. Delay off 30
sec > 10 mins - Delay on = 30 secs Delay off 10 mins ≤ 60 mins - Delay on = 5 - 60 mins
Application: heating, ventilation, etc.
Description
Dimensions
Supply
Cat ref.
dia. x depth (mm)
Light intensity from 5 to 1200 lux
110 x 31
Bus 30V DC
TX510
Time delay for lighting
Time delay for presence
Area covered - 13x7m at 2.5m height
1 Channel Presence Detector 360º
Associated with Tebis dimmers, it is possible to maintain light intensity in a room at a constant level as
long as there is presence in the room irrespective of changes in the natural lighting.
3 Operating Modes
• Mode 1 - Dimming inactive (only presence info used)
• Mode 2 - Dimming active as per light setting on product potentiometer
• Mode 3 - Dimming active. Lighting instruction can be changed by long push on communicating PB of
presence detector
Description
Dimensions
Supply
Cat ref.
dia. x depth (mm)
Light intensity from 5 to 1200 Lux
110 x 31
Bus 30V DC
TX511
Time delay for lighting
Area covered - 13 x 7m at a height of 2.5m
1 Channel Presence Detector 360º
Occupancy sensors TCC510S are presence detectors designed to detect low amplitude movements
(movements from body or arms). Detection is by means of the pyroelectric IR sensor located under
detection lens.
The occupancy sensor measures the brightness in the room on a continuous basis and compares it to the
level preset on the potentiometer (or by means of the remote control EE807) by ETS parameter.
These products are part of the Tebis installation system.
Configuration
• E-mode TX100 V.2.6.0 or >: detailed description in User’s Instructions supplied with the configurer.
• S-mode ETS : Application software STCC510S. Database and description available from manufacturer.
Lux and time delay settings via EEK001 or potentiometers located on the device
Description
Dimensions
Supply
Cat ref.
dia. x depth (mm)
Light intensity from 5 to 1200 Lux
110 x 31
Bus 30V DC
TCC510S
Time delay for lighting
Area covered - 13 x 7m at a height of 2.5m
TX511
TCC510S
TX510
Tebis KNX
