6.5
Time Switches
Control commands are
transmitted directly onto the
bus without the need for output
controls. Wiring is simplified as
power supply is taken direct from
the bus. Time switches are used
in control of lighting, heating,
shutters movement, domestic
appliances, sockets, etc. in order
to improve comfort and saving
energy.
Functions
• 7 day programmer, 56 steps of
program, minimum setting
step of 1 minute
• Possible to program impulses
(1s to 30min)
• Automatic change of schedule
for summer/winter
Programming Key EG005
For programming the time switch
• Copy or saving the program
• Making circuit On or Off
temporarily (blinking)
• Permanent priority settings On
or Off (manual)
Sofware
• For programming from PC or
on the product not connected
in the system
• 5 years functioning reserve
with lithium battery
• Bar graph display of day
profile
Other Functions
• Impulse programming (1s to
30min)
• Presence simulation
• Back light screen
• Holiday mode - priority setting
On or Off between two dates
• Possible to lock keyboard and
programming by EG004 key
TXA023
• Can be synchronized on radio
via signal DCF77 with help of
EG001 antenna.
• Via bus, master timer can set
time and date of TXA023
Installation
Programming is carried out by
configuration device TX100GB
via media coupler or by ETS.
For technical details see page
6.27.

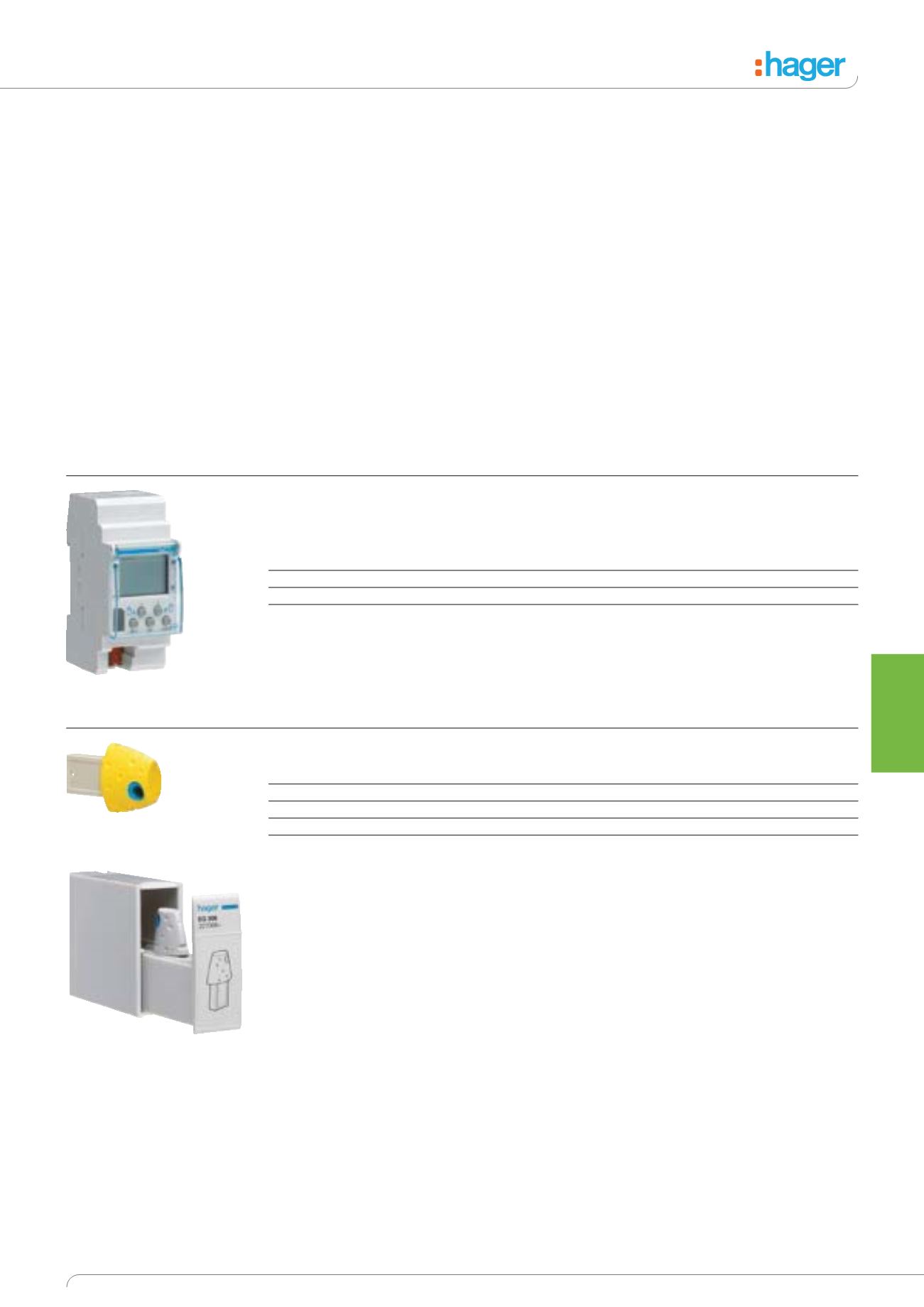

Time Switches
2 channel 7 day Function - ON/OFF, Up/Down, heating control scene selection, master or slave clock
function. Product setting on current hour and day.
Description
Supply
Width
Cat ref.
Weekly Time Switch
Bus 30V DC
2 Mod
TXA022
Weekly Time Swtich with DCF Capability
Bus 30V DC
2 Mod
TXA023
Antenna for TXA023
-
-
EG001
Accessories
Description
Cat ref.
Locking Key (to stop unauthorised changing of the program)
EG004
Blank Programming Key (to save program from switch or software)
EG005
USB Adaptor and Interface Software (for transferring the program from the PC to the key)
EG003G
Storage Key Module (holds 3 keys)
EG006
TXA022
EG004
EG006
