4.33

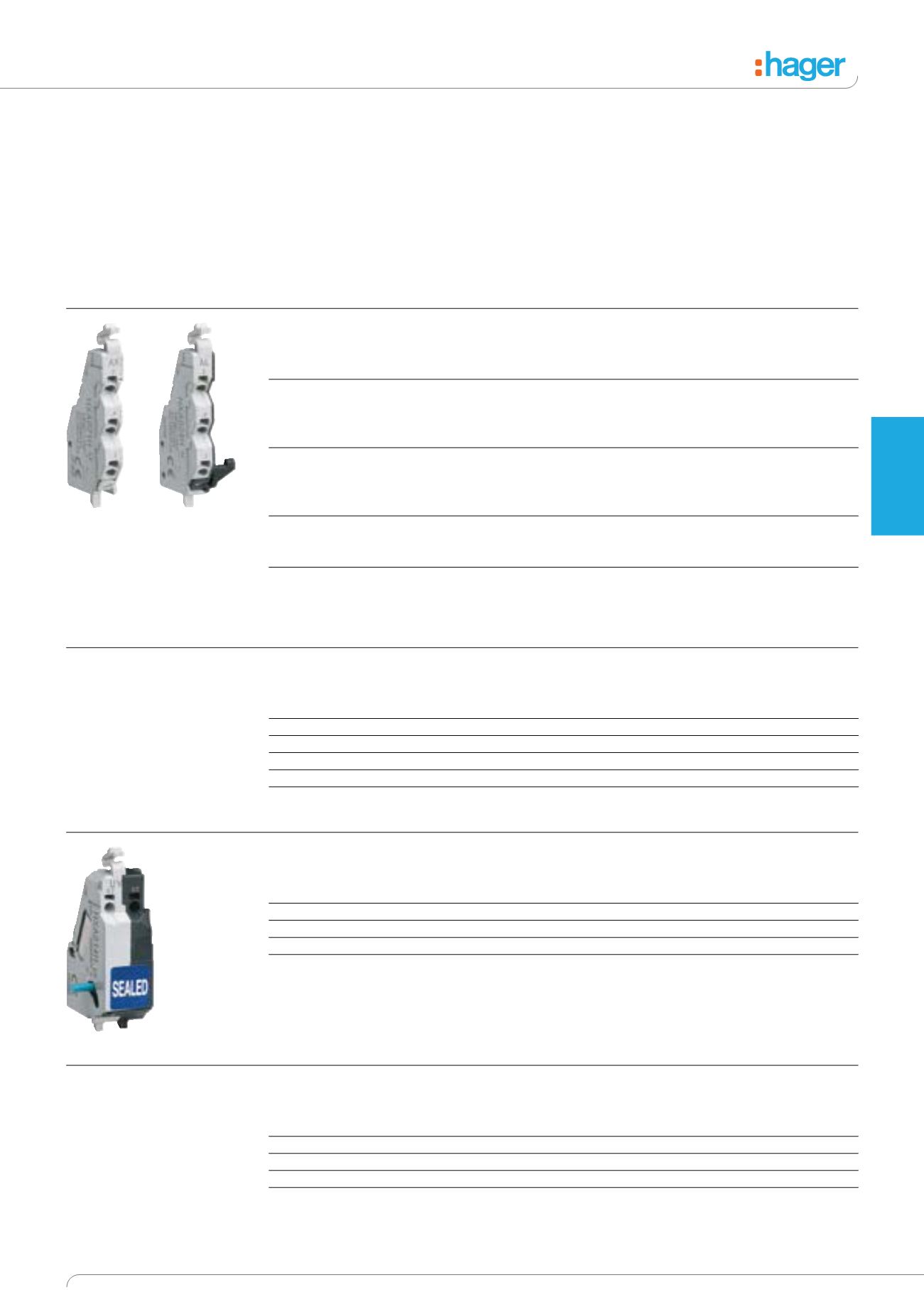

Accessories for x160
Indication contacts
• 1 changeover switch (ON/OFF):
indicates the position of the
MCCB “open” or “close”.
• 1 changeover alarm contact:
indicates MCCB tripped.
Coil connection
Connection capacity:
0.75 mm
2
flexible or rigid cables
The cable capacity of the
terminals is 0.5 to 1.25 mm
2
.
Shunt trip
Remote tripping of MCCBs
Operating voltage: 0.7 to 1.1 x
U n
Under voltage release
Enables tripping of MCCBs or
moulded case switches when
voltage level drop between 35
and 70% of U n . Pick up voltage
0.85 x U n
Direct rotary handle
• padlockable
• equipped with front cover and
handle
• fixing without any additional
screw.
Description
Ref.
1 Changeover contact (On/Off)
HXA021H
250V AC / 3A
125V DC / 0.4A
1 NO+ 1NC
1 Changeover alarm contact
HXA024H
250 V AC / 3A
125 V DC / 0.4A
NO + 1 NC
Low level contact (On/Off)
HXA025H
125V AC
NO + 1 NC
Low Level alarm contact
HXA026H
125 V AC
NO + 1 NC
Description
Ref.
24V DC
HXA001H
48V DC
HXA002H
100-120V AC
HXA003H
200-240V AC
HXA004H
380-450V AC
HXA005H
Description
Ref.
24V DC
HXA011H
100-120V AC
HXA013H
200-240V AC
HXA014H
380-450V AC
HXA015H
Description
Ref.
24V DC
HXA051H
100-120V AC
HXA053H
200-240V AC
HXA054H
380-450V AC
HXA055H
Auxiliary Contacts
Shunt Trips - SH
Undervoltage Releases - UV
Delayed Undervoltage Releases - DUVR
HXA024H
HXA021H
HXA014H
Protection
Devices
