4.31

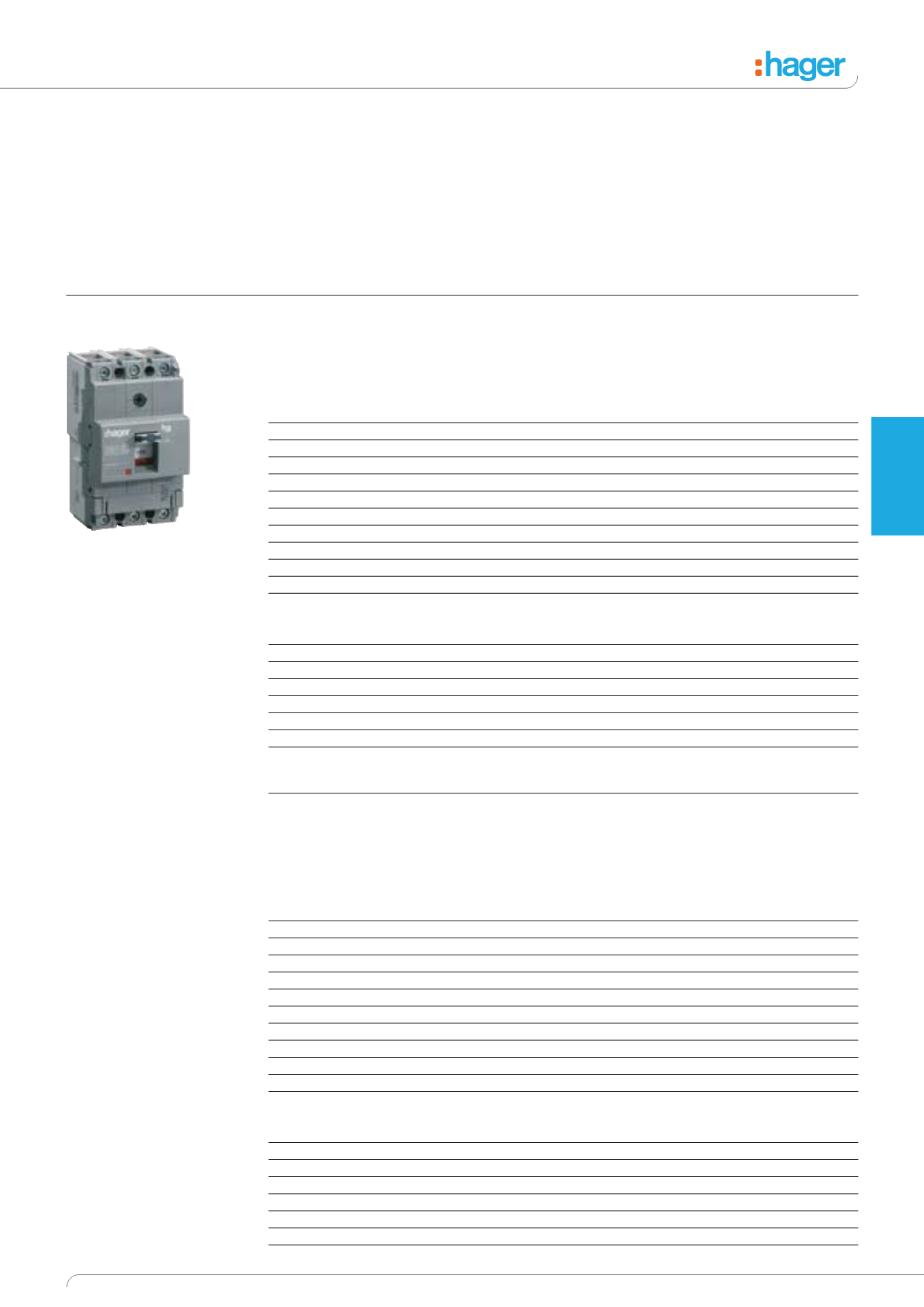

MCCBs x160
Moulded case circuit breakers
x160
Thermal magnetic trip unit, 2
versions:
• Z version: fixed thermal and
fixed magnetic
• U version: adjustable thermal
and fixed magnetic
1P and 3P.
Access to mechanical test
button on cover. Lockable cover
protects MCCB settings.
Integrated padlocking handle
Ø 4mm,
*160A devices should not be
used
Connection capacity
95 mm
2
rigid cables
70 mm
2
flexible cables
Cage terminals
Complies with BS EN 60947-2.
Moulded case switches comply
with BS EN 60947-3.
For technical details see table on
page 4.60.
Moulded Case Circuit Breakers x160 18KA - Fixed Thermal
Ref 1P.
Ref 3P.
MCCBs x160 18kA - 16A
HDA014Z HDA016Z
MCCBs x160 18kA - 20A
HDA018Z HDA020Z
MCCBs x160 18kA - 25A
HDA023Z HDA025Z
MCCBs x160 18kA - 32A
HDA030Z HDA032Z
MCCBs x160 18kA - 40A
HDA038Z HDA040Z
MCCBs x160 18kA - 50A
HDA048Z HDA050Z
MCCBs x160 18kA - 63A
HDA061Z HDA063Z
MCCBs x160 18kA - 80A
HDA078Z HDA080Z
MCCBs x160 18kA - 100A
HDA098Z HDA100Z
MCCBs x160 18kA - 125A
HDA123Z HDA125Z
MCCBs x160 18kA - 160A
-
HDA160Z
Moulded Case Circuit Breakers x160 18KA - Adjustable Thermal
Ref 1P.
Ref 3P.
MCCBs x160 18kA - 25A
-
HDA025U
MCCBs x160 18kA - 40A
-
HDA040U
MCCBs x160 18kA - 63A
-
HDA063U
MCCBs x160 18kA - 80A
-
HDA080U
MCCBs x160 18kA - 100A
-
HDA100U
MCCBs x160 18kA - 125A
-
HDA125U
MCCBs x160 18kA - 160A
-
HDA160U
Moulded Case Circuit Breakers x160 25KA - Fixed Thermal
Ref 1P.
Ref 3P.
MCCBs x160 18kA - 16A
HHA014Z HHA016Z
MCCBs x160 18kA - 20A
HHA018Z HHA020Z
MCCBs x160 18kA - 25A
HHA023Z HHA025Z
MCCBs x160 18kA - 32A
HHA030Z HHA032Z
MCCBs x160 18kA - 40A
HHA038Z HHA040Z
MCCBs x160 18kA - 50A
HHA048Z HHA050Z
MCCBs x160 18kA - 63A
HHA061Z HHA063Z
MCCBs x160 18kA - 80A
HHA078Z HHA080Z
MCCBs x160 18kA - 100A
HHA098Z HHA100Z
MCCBs x160 18kA - 125A
HHA123Z HHA125Z
MCCBs x160 18kA - 160A
-
HHA160Z
Moulded Case Circuit Breakers x160 25KA - Adjustable Thermal
Ref 1P.
Ref 3P.
MCCBs x160 18kA - 25A
-
HHA025U
MCCBs x160 18kA - 40A
-
HHA040U
MCCBs x160 18kA - 63A
-
HHA063U
MCCBs x160 18kA - 80A
-
HHA080U
MCCBs x160 18kA - 100A
-
HHA100U
MCCBs x160 18kA - 125A
-
HHA125U
MCCBs x160 18kA - 160A
-
HHA160U
Breaking capacity
Icu / Ics : 18 kA
(400/415 V AC)
Fixed thermal
1x I n
fixed magnetic
> 10 x I n
Adjustable thermal
0.63 - 0.8 - 1 x I n
fixed magnetic
> 10 x I n
breaking capacity
Ics : 20 kA
Icu : 25 kA
(400/415 V AC)
fixed thermal
1x I n
fixed magnetic
> 10 x I n
adjustable thermal
0.63 - 0.8 - 1 x I n
fixed magnetic
> 10 x I n
Moulded Case Circuit Breakers x160 18kA
Moulded Case Circuit Breakers x160 25kA
HDA125Z
Protection
Devices
