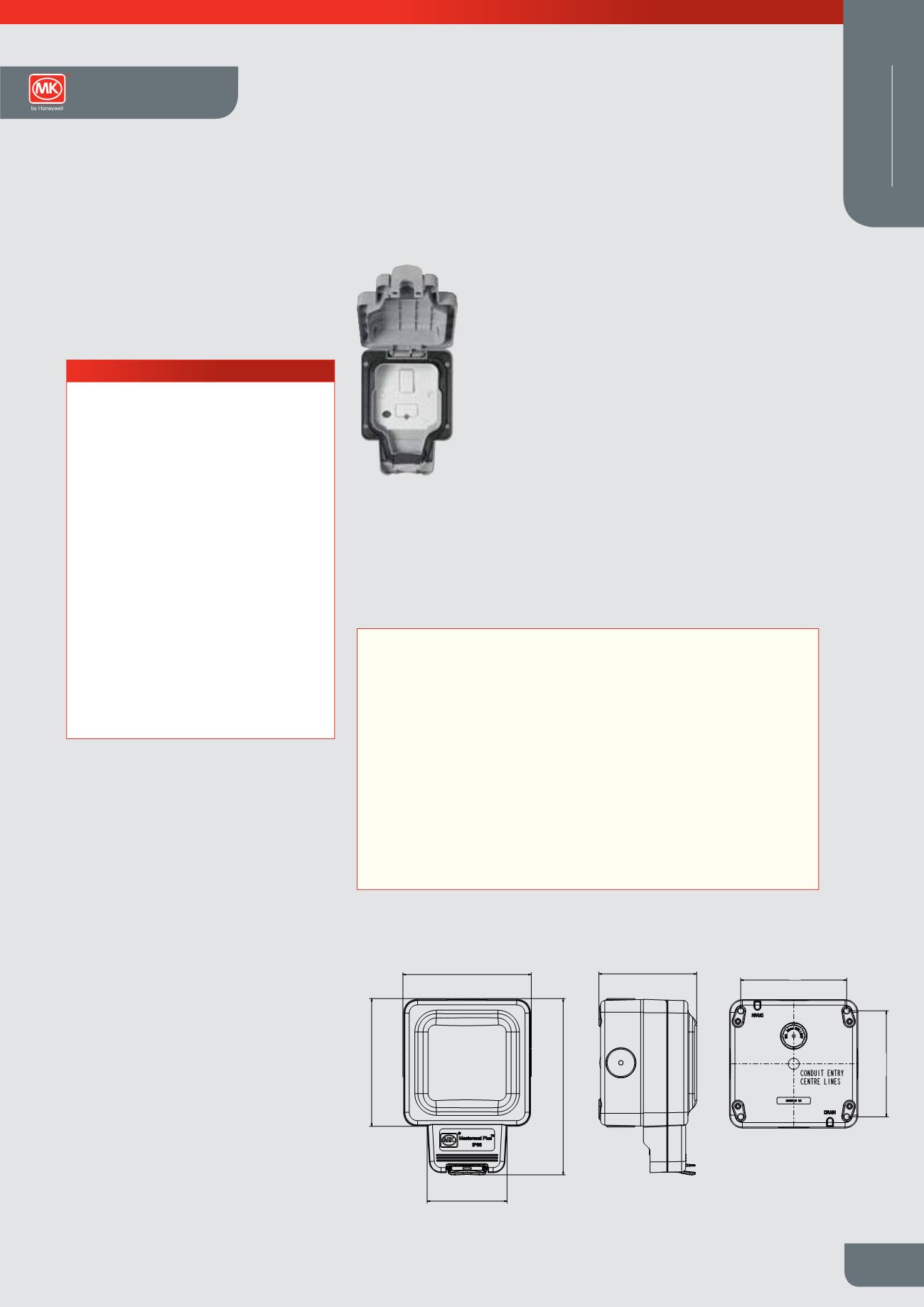

WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
INGRESS PROTECTED
IP66
547
13A Connection Units
Description
Masterseal Plus
TM
connection units are specifically designed for use outdoors or in
areas heavily exposed to dust and/or splashing water. Constructed from extremely
robust polycarbonate, the range is sealed to IP66 against dust, water and is impact
resistant and will completely protect and provide a safe connection to any appliance.
Standards and approvals
All Masterseal Plus
TM
Connection Units comply
with BS 1363 Part 4:1995. All units are fitted
with a 13A fuse link to BS 1362.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
Connection units – 13 amp
TERMINAL CAPACITY
Supply terminal
2 x 6mm
2
stranded
3 x 4mm
2
3 x 2.5mm
2
3 x 1.5mm
2
LOAD TERMINALS
1 x 1.5mm
2
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP66
MAX. INSTALLATION ALTITUDE
2000 metres
Impact Resistance
All Masterseal Plus
TM
products have an impact
resistance equivalent to a 500g object falling
from a height of 40cm.
Boxes
Rear entry back boxes are supplied for ‘tamper
proof’ surface mounted situations or flush
mounting when used with Flush Mounting
Bezels (K56502). These boxes must also be
used if cable or conduit enters the enclosure
from the rear.
Installation
Masterseal Plus connection units can be wall or
bench mounted. Do not use on a trailing lead.
117
89
73
116
160
FEATURES
l
IP66 protected to BS EN 60529:1992
l
Ideal for gardens, workshops, industry,
commercial, public areas, farm
buildings, ponds, pools etc
l
Easy to install: fixed gasket, captive
backed out terminal screws, clearly
marked top access angled terminals,
push fit knockouts and conduit entries,
rear drill holes
l
Patented gel seal provides durable
water and dust tight seal for improved
protection
l
Improved catch eases opening and
closing during use
l
Manufactured from polycarbonate for
impact protection
l
Screw fitted fuse carrier
l
Fuse carrier lockable in open position
l
Captive fuse carrier
l
3mm minimum switch contact gap
l
Double pole switching
l
Moulded ‘on’ indicator flash on switches
will not rub off
Dimensions (mm)
95
20
95
Fixing Dimensions
Masterseal Plus™
