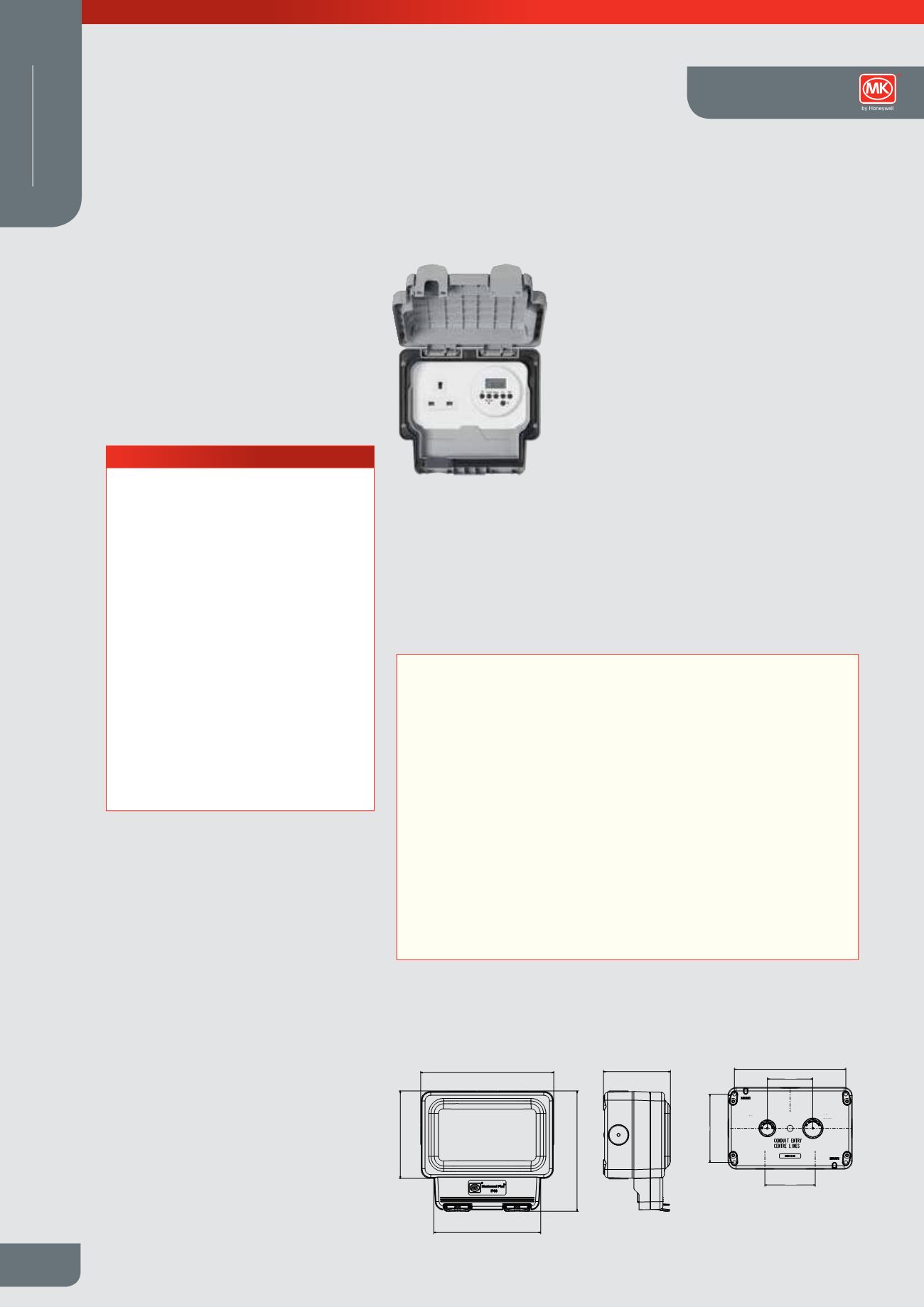

Timer Socket Outlet
Description
This socket outlet, switched by a single pole timer module is specifically designed for
use outdoors or in areas heavily exposed to dust and/or splashing water. Constructed
from extremely robust polycarbonate, the product is sealed to IP66 against dust
and water, and is impact resistant. The product ensures a very high degree of
protection for virtually any 13A plug* to BS 1363, allowing safe connection to electrical
appliances, which can be switched on and off at pre-determined times.
Standards and approvals
Socket outlet complies with
BS 1363 Part 2:1995.
Enclosure conforms to BS EN 60529 IP66
Timer module complies with IEC 60730-1
IEC 60730-2-7, EN 55014-1:2000, EN 55022,
EN 61000-3-2, EN 61000-4-2, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
TECHNICAL SPECIFICATION
ELECTRICAL
SUPPLY VOLTAGE
230V a.c.
SUPPLY FREQUENCY
50Hz
CURRENT RATING FOR SOCKET OUTLET
(RESISTIVE) 13A
TERMINAL CAPACITY
Supply Line, Neutral and Earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
0°C to +40°C
IP RATING
IP66
MAX. INSTALLATION ALTITUDE
2000 metres
FEATURES
l
Single 13A rated socket outlet
switched via the Single Pole timer
module
l
Weekly Electronic Timer
l
24 hour clock
l
Multi-function Liquid Crystal Display
(LCD)
l
6 ON/OFF programmes per day
l
Individual day selection as well as 4
block day selections
l
Supplied with a LOOP terminal in
the back box, which has 5 entries for
cables
l
Override button to switch the load ON/
OFF directly, bypassing the timer
l
Patented gel seal provides durable
water and dust tight seal for improved
protection
l
Sealed when in use with virtually any
standard 13 Amp plug, including those
with moulded on plug tops
l
Improved catch eases opening and
closing during use
l
Manufactured from polycarbonate for
impact protection
l
3 pin operated safety shutter on
socket outlets
l
Products are available in grey, black
and white
Timer module
The product employs an electronic timer module,
which switches the Supply Line to the socket
outlet, via a single pole relay. 6 ON/OFF cycles
per day can be programmed via the buttons
on the face of the timer module. Days in the
week can be set individually or set to repeat in 4
separate blocks as follows:
1.
Monday to Friday
2.
Saturday and Sunday
3.
Monday to Saturday
4.
Monday to Sunday
An Override button is available to switch the load
ON/OFF directly, bypassing the timer.
Boxes
Rear entry back box is supplied for surface
mounted situations or flush mounting when
used with Flush Mounting Bezel (K56503).
These boxes must also be used if cable or
conduit enters the enclosure from the rear.
* When in doubt, please use an MK 13A plug
Fixing Dimensions
177
89
142
116
160
71.00
64.00
156
25
20
96
Dimensions
