FEATURES
Lead connectors
l
Manufactured with a
thermoplastic elastomer cover
and polypropylene inserts
l
Integral cable grips
l
Retaining lugs to prevent
accidental disconnection
Trailing sockets
l
Manufactured from tough ABS/
Polycarbonate with rubber cover.
FC153 is all-rubber construction
l
All internal component parts are
retained in the base for ease of
wiring
l
Visible red nylon shutters
Portable sockets
l
Manufactured from high impact
resistant ABS/Polycarbonate
l
Equal length wire stripping for
ease of wiring
l
Visible red nylon shutters
l
Optional wall mounting holes

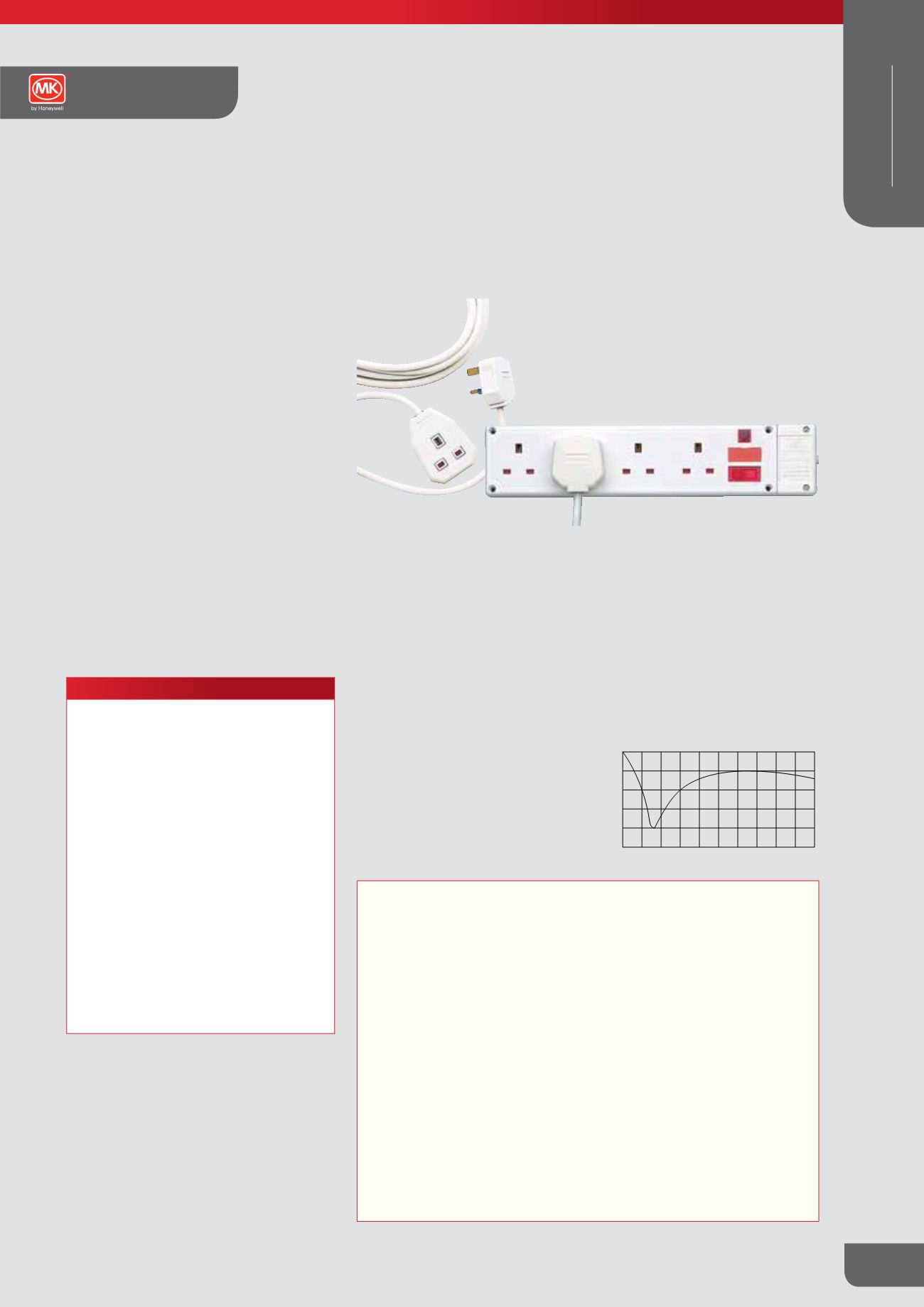

Lead Connectors, Extension Leads, Portable Sockets and
Cable Couplers
0
-10
-20
-30
-40
-50
3 6 9 12 15 18 21 24 27 30
Frequency MHz
Attenuation dB
Standards and approvals
2 pin Duraplug
®
lead connectors comply with
BS 5733:2010.
3 pin Duraplug
®
lead connectors comply with
BS 5733:2010.
All 13A Duraplug
®
trailing socket outlets comply
with BS 1363/A Part 2:1995.
15A Round pin Duraplug
®
trailing socket outlets
comply with BS 5733:2010 and BS 546 for plug
pin aperture and engagement face dimensions.
All 13A Duraplug
®
portable socket outlets
comply with BS 1363/A Part 2:1995.
Cable Couplers comply with BS 5733:2010.
(BS 1363 pin centres for 13A, BS 546 pin
centres for 5A and 15A).
Replacement fuses where fitted are to BS 1362.
Cables to BS EN 50525-2-11 (H05VV-F).
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
As ‘Product range’ table
TERMINAL CAPACITIES
Lead connector – 1.0mm
2
conductor
Trailing/Portable socket – 1.5mm
2
conductor
MAX. CABLE CAPACITY
Lead connector – LCP102: 2-core insulated cable with
1.0mm
2
conductors, LCP103: 3-core insulated cable
with 1.0mm
2
conductors. 11mm overall diameter
Trailing/Portable sockets – 3-core insulated cable
with 1.5mm
2
conductors, 11mm overall diameter
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
MAX. INSTALLATION ALTITUDE
2000 metres
Installation
Duraplug
®
products should not be allowed to
lie in excessively damp areas, e.g. wet grass,
puddles etc. Care must be taken to avoid
contact with petroleum spirits.
For added safety trailing sockets should be used in
conjunction with a residual current device (RCD).
Description
A range of tough, rewirable lead connectors for use with extension leads for
domestic, garden and light workshop applications. Two pin lead connectors are only
for use with double insulated class 2 appliances. Three pin lead connectors must be
used with earthed appliances.
Filtered socket only
Protects electronic equipment by filtering mains borne interference such as Voltage
spikes. This product complies with the LV (72/23/EEC) directive.
Filtered Response Characteristics
Mains filter rated at 250v RMS and 0.15μF
Varistar (Transient Voltage Suppressor)
has a more constant voltage 275v ac
Clamping voltage @ 40A: 665v
Milliwatt constant: 800
