WIRING DEVICES
Technical Hotline
+44 (0)1268 563720
INGRESS PROTECTED
IP66
545
FEATURES
l
Suitable for most residential,
commercial and light industrial
applications
l
Active and passive control circuit
applications
l
Comply fully with current Wiring
Regulations if installed correctly
l
Double pole switching
l
Flexible and versatile in use
l
Ideal for use with equipment subject
to wet weather or high humidity
l
They are a.c. and pulsating d.c. fault
current sensitives
l
Products are available in grey, black
and white
116
Description

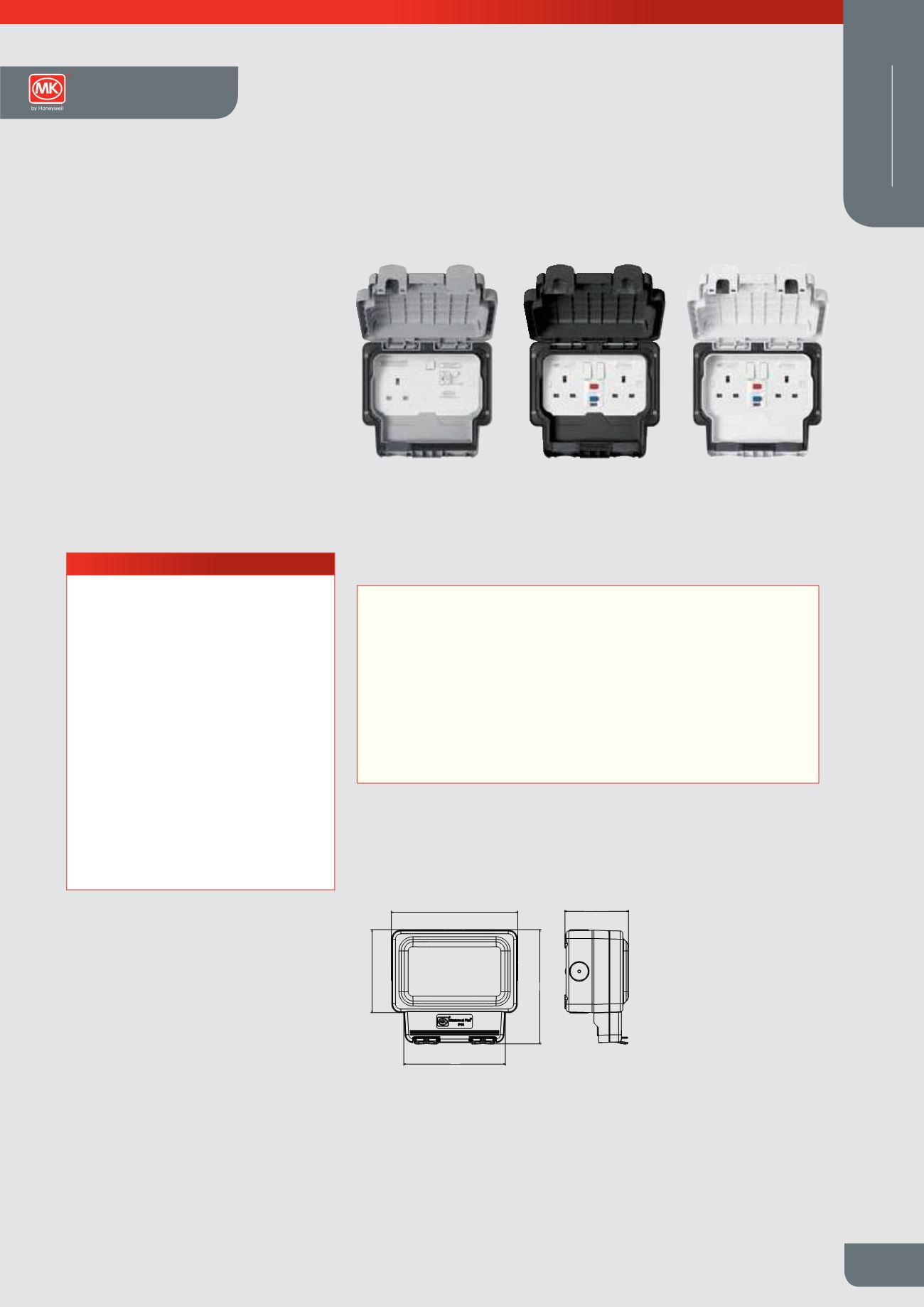

Sentrysocket provides a high level of protection for portable equipment when used
in damp environments or outdoors.
Sentrysocket
Compliance with EC Directives,
Standards and approvals
All Sentrysockets comply with the following EC
Directives and are CE marked:
Low Voltage Directive Electromagnetic
Compatibility Directive (89/336/EEC)
Sentrysocket RCD Single Sockets also comply
with the requirements of the following standards:
BS 7288:1990
BS EN 50082-1:1992
Sentrysocket RCD Double Sockets also comply
with the requirements of the following standards:
BS 7288:1990
BS EN 61543:1996
TECHNICAL SPECIFICATION
ELECTRICAL
RATED VOLTAGE
240V a.c.
CURRENT RATING
13A resistive
RATED TRIPPING CURRENT
30mA
TERMINAL CAPACITY
1 Gang: 3 x 4mm
2
2 Gang: 2 x 4mm
2
PHYSICAL
AMBIENT OPERATING TEMPERATURE
0°C to +40°C
IP RATING
IP66
MAX. INSTALLATION ALTITUDE
2000 metres
Dimensions (mm)
Single and double Sentrysockets are identical in size and shape.
The following dimensions apply
Masterseal Plus
TM
Sentrysocket is suitable for
surface mounting only.
160
142
177
89
Active control circuits
Incorporate a ‘Re-set’ mechanism and are mains
failure sensitive, ie they will function under all the
normal conditions expected of an RCD, but will
also trip in the event of a power cut or a sudden,
dramatic reduction in mains voltage. This makes
them ideal for use where it would be hazardous
for equipment to suddenly energise after return of
mains power, such as use with rotating machinery
and heat developing apparatus.
Passive control circuit
Incorporates a ‘Stay-set’ mechanism and is
mains failure proof, ie it will function under all the
normal conditions expected of an RCD and will
not trip in the event of a power cut. This makes it
suitable for use with freezers or in inaccessible or
unmanned locations.
Masterseal Plus™
