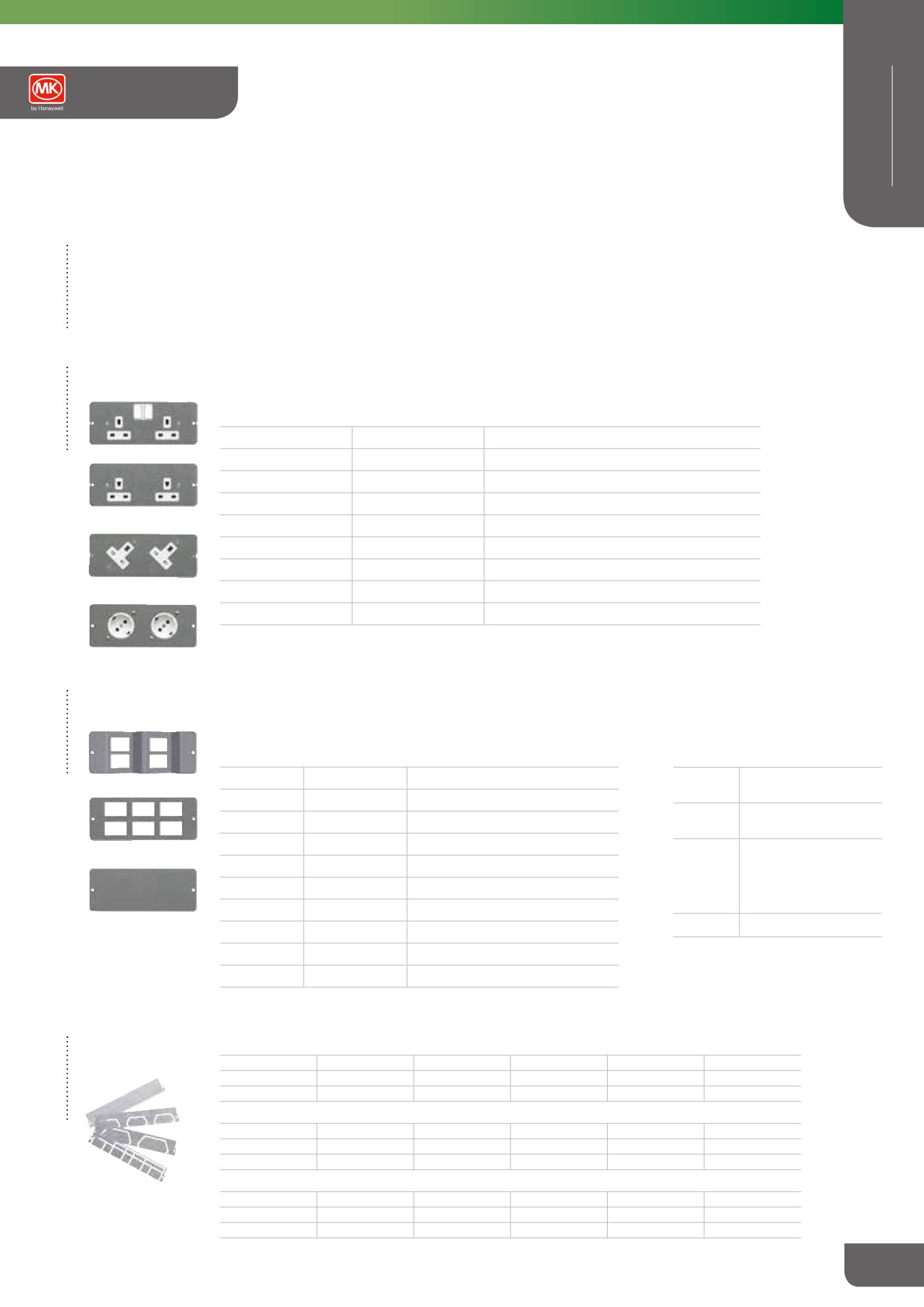

Accessory Plates
Accessory plates are common to most ranges, they will fit all Onix Plus
™
, Cablelink Plus Single Pan, and Screed
floorboxes. Standard Plates are for use with 265 x 265mm, 340 x 265mm and 340 x 340mm Floorboxes. Compact
Plates are for use with 200 x 200mm Floorboxes only. Both Standard and Compact Plates are supplied in Light Grey
(LGY) finish.
Serviced Power Plates
Standard Part No.
Compact Part No.
Description
CXP10730*
=
CXPC10730*
=
2G 13A Switch Socket Outlet
CXP10730NS*
=
CXPC10730NS*
=
2G 13A Switch Socket Outlet Non-Standard (T Pin)
CXP10731*
=
CXPC10731*
=
2G 13A Socket Outlet
CXP10731NS*
CXPC10731NS*
2G 13A Socket Outlet Non Standard (T Pin)
CXP10745
CXPC10745*
2G 13A Angled Socket Outlet
CXP10735*
CXPC10735
2G 13A 30mA Passive RCD Switch Socket Outlet**
CXP10760
2G 13A Switch Socket Outlet – Side Wired
CXP10720
3G 13A Socket Outlet
CXP10740
CXPC10740
2G 16A 2P+E German Socket Outlet (non UK)**
* For Clean Earth wiring – add suffix ‘CE’ e.g CXP10730CE. Clean Earth switched power plates are identified with red rockers.
=
Plates are supplied with the MK Electric 3-pin safety shutter. Compact Plates (power and data) are for use with 200 x 200mm bases.
**Minimum 45mm wiring space required. If 2 socket plates are required in the 200 x 200 base, then only CXPC10745 / CXPC10745CE can be used.
CXP10731NS
CXP10730
CXP10745
CXP10740
Side plate
CUBP200-01 CUBP200-02 CUBP200-03 CUBP200-04 CUBP200-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE
25 / 20
60 / 25
90 / 35
UP TO 100X38
NO. PER PLATE
2/2
2
1
Side plate
CUBP265-01 CUBP265-02 CUBP265-03 CUBP265-04 CUBP265-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE
25 / 20
60 / 25
90 / 35
UP TO 225X38
NO. PER PLATE
3/2
3
2
Side plate
CUBP340-01 CUBP340-02 CUBP340-03 CUBP340-04 CUBP340-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE
25 / 20
60 / 25
90 / 35
UP TO 300X38
NO. PER PLATE
4/4
4
3
see page 421 for information regards PVCu ducting, see page 422 for metal ducting. * Knockouts 20mm and 25mm.
Side Adaptor
Plates
Standard
Part No.
Compact
Part No.
Description
CXP20200 CXPC20200
2 x LJU6C Apertures
CXP20201
*
CXPC20201*
4 x LJU6C Apertures
CXP20215
=
CXPC20215
=
4 x LJU6C Wave Apertures
CXP20205 CXPC20205
4 x Krone Apertures
CXP20301 CXPC20301
6 x LJU6C Apertures
CXP30501 CXPC30501
2 x Euro 50 x 50mm Apertures
CXP30503
1 x Euro 150 x 50mm Aperture
CXP30502 CXPC30502
2 x 45 x 45mm Apertures
CXP20500
=
CXPC20500
=
4 x ST Fibre Connector Apertures
CXP30201 CXPC30201
Blank Plate
* Data apertures are supplied as knockouts. = Additional floor depth restrictions apply when using these plates - See page 685 for details.
Compact Plates (power and data) are for use with 200 x 200mm bases.
Unserviced Data Plates
CXP20215
CXP20301
CXP30201
Optional Extras
Part No. Description
NXLC-
01GRY
Cord Cap – Grey
(RAL 7011)
NXLC-
01BEG
Cord Cap – Beige
(RAL 1019)
CUBA-1
Plate Height
Adjustment Kit +/- 10mm.
Suitable for 265 x 265mm
and 340 x 340mm boxes
only
CX-10
Earthing Kit, pack of 10
