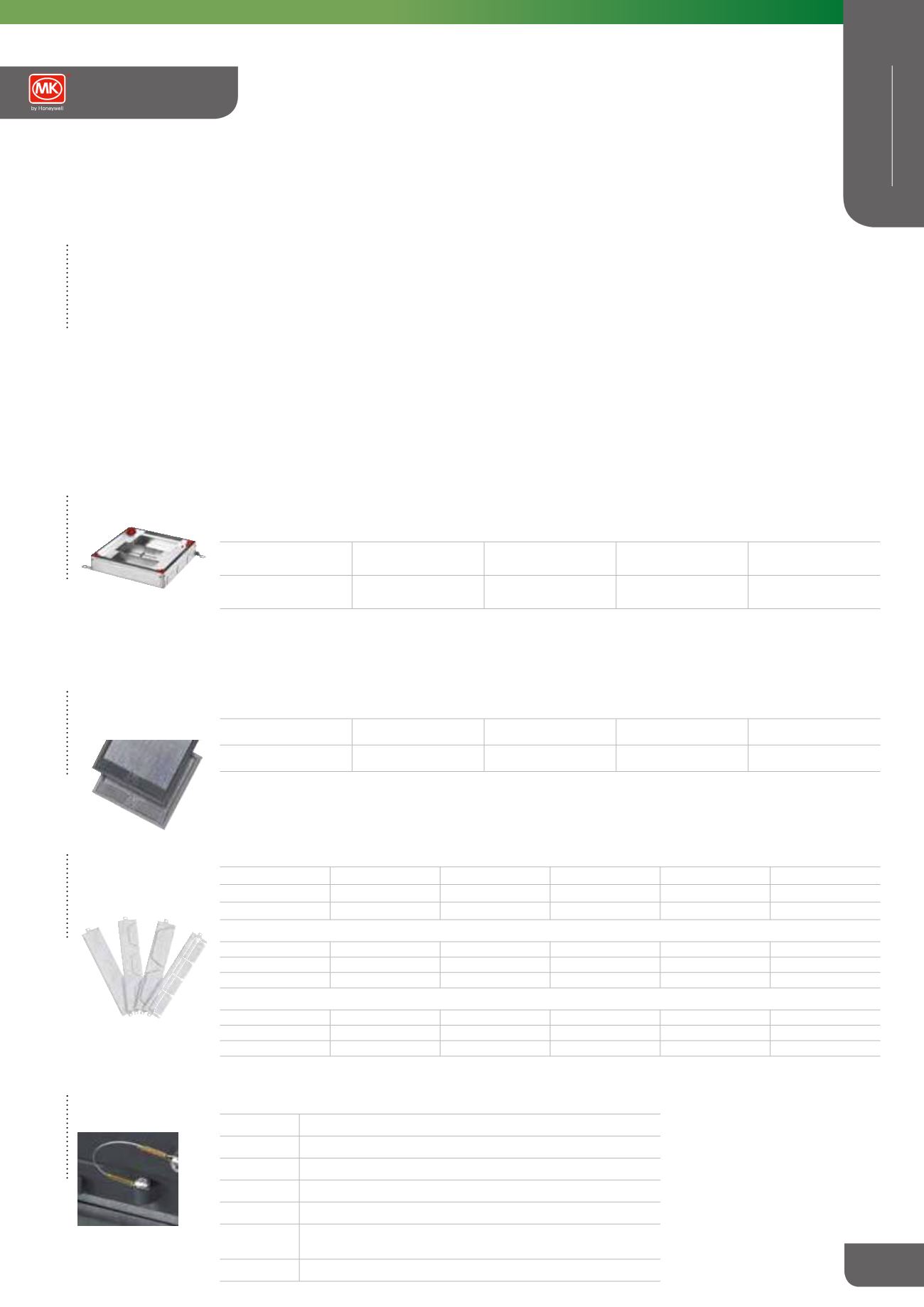

Screed Outlet Boxes
The Service Outlet Box should be positioned directly on the structural floor slab. The box provides location and connection
facilities for power and data service outlets.
Service Outlet Box Selector Guide
l
Service Outlet Boxes are ordered as two parts – “Base” and “Frame and Lid”
l
Base – identify screed depth, number of compartments required and preferred box size
l
Frame and Lid – choose trim colour and lid recess depth
l
Side Adaptor Plates – choose alternative to PVC ducting plates if required
l
Accessory Plates – select from wide range of power and data options – see page 423
Frame/Lid Size
100 X 200MM 200 X 200MM 265 X 265MM 340 X 265MM
RECESS: 8MM
CXL100-8GRY
CXL200-8GRY*
CXL265-8GRY*
CXL340-8GRY*
RECESS: 12MM**
CXL200-12GRY
CXL265-12GRY
CXL340X-12GRY
* Lockable option available – add suffix ‘L’ e.g CXL265-8GRYL. Floorboxes must never be locked whilst in use. Not supplied with key.
An optional 2mm lid packer is available when used with thinner carpet tiles – see Optional Extras below.
If a 12mm lid is required for use in 80-110mm screed, please add ‘X’ e.g. CXL265X-12GRY.
** For 12mm recess depth lids use Onix Plus
TM
base, see page 405 i.e NXB265UK-3.
Base size
Compartment
100 x 200MM*
1
200 x 200MM
2
265 x 265MM
3
340 x 265MM
4
SCREED 55-80MM
35MM WIRING SPACE
CUB100UK-1
CUB200UK-2
CUB265UK-3
CUB340UK-4
SCREED 80-110MM
35MMWIRING SPACE
CUB100XUK-1
CUB200XUK-2
CUB265XUK-3
CUB340XUK-4
Increased wiring space of 45mm below the plate is required to achieve Cat 6 & Cat 6A compliance. Wiring space can also be reduced to 25mm when used in shallow screed depths.
Both require the use of a plate height adjustment kit - part number CUBA-1.
Disposable steel screed lid (recyclable) supplied as standard. If screed depth is 55mm, reduce wiring space to 25mm by use of suitable CUBA kit, floor covering must be 8mm thick
when compressed, and use side wired socket outlets – see page 423. Supplied with 4 x PVC Ducting side plates. Number of knockouts varies by size: 100 x 200mm –
1 x 60 x 25mm, 265 x 265mm – 3 x 60 x 25mm and 340 x 265mm – 3 x 90 x 35mm. *These boxes will only accept CXP10745
Base
Part No.
Description
CX-01
Cable Retainers – pack of 10
CX-02
Lid Tether Kit – pack of 5
CX-03GRY
Cord Cap for 100 x 200mm Lid – Grey
CX-04GRY
Cord Cap for 265 x 265 and 340 x 265mm Lid – Grey
CX-05
Ratchet levelling kit
CUBA-1
Plate Height Adjustment Kit +/- 10mm.
Suitable for 265 x 265mm and 340 x 265mm boxes only
CRXKEY
Lock Key – pack of 2
Optional Extras
LID TETHER
Side Adaptor
Plates
Side plate
CUBP200-01
CUBP200-02
CUBP200-03
CUBP200-04
CUBP200-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE (MM)
25 / 20
60 / 25
90 / 35
UP TO 100X38
NO. PER PLATE
2/2
2
1
Side plate
CUBP265-01
CUBP265-02
CUBP265-03
CUBP265-04
CUBP265-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE (MM)
25 / 20
60 / 25
90 / 35
UP TO 225X38
NO. PER PLATE
3/2
3
2
Side plate
CUBP340-01
CUBP340-02
CUBP340-03
CUBP340-04
CUBP340-08
APERTURE TYPE
BLANK BLANK
ROUND CONDUIT*
PVC
PVC
METAL DUCTING
APERTURE SIZE (MM)
25 / 20
60 / 25
90 / 35
UP TO 300X38
NO. PER PLATE
4/4
4
3
See page 421 for information regards PVCu ducting, page 422 for metal ducting. * Knockouts 20mm and 25mm.
Frames
and Lid
MK Electric Catalogue
417
FLOOR SYSTEMS
SCREEDED
Technical Hotline
+44 (0)1268 563720
Screed System
