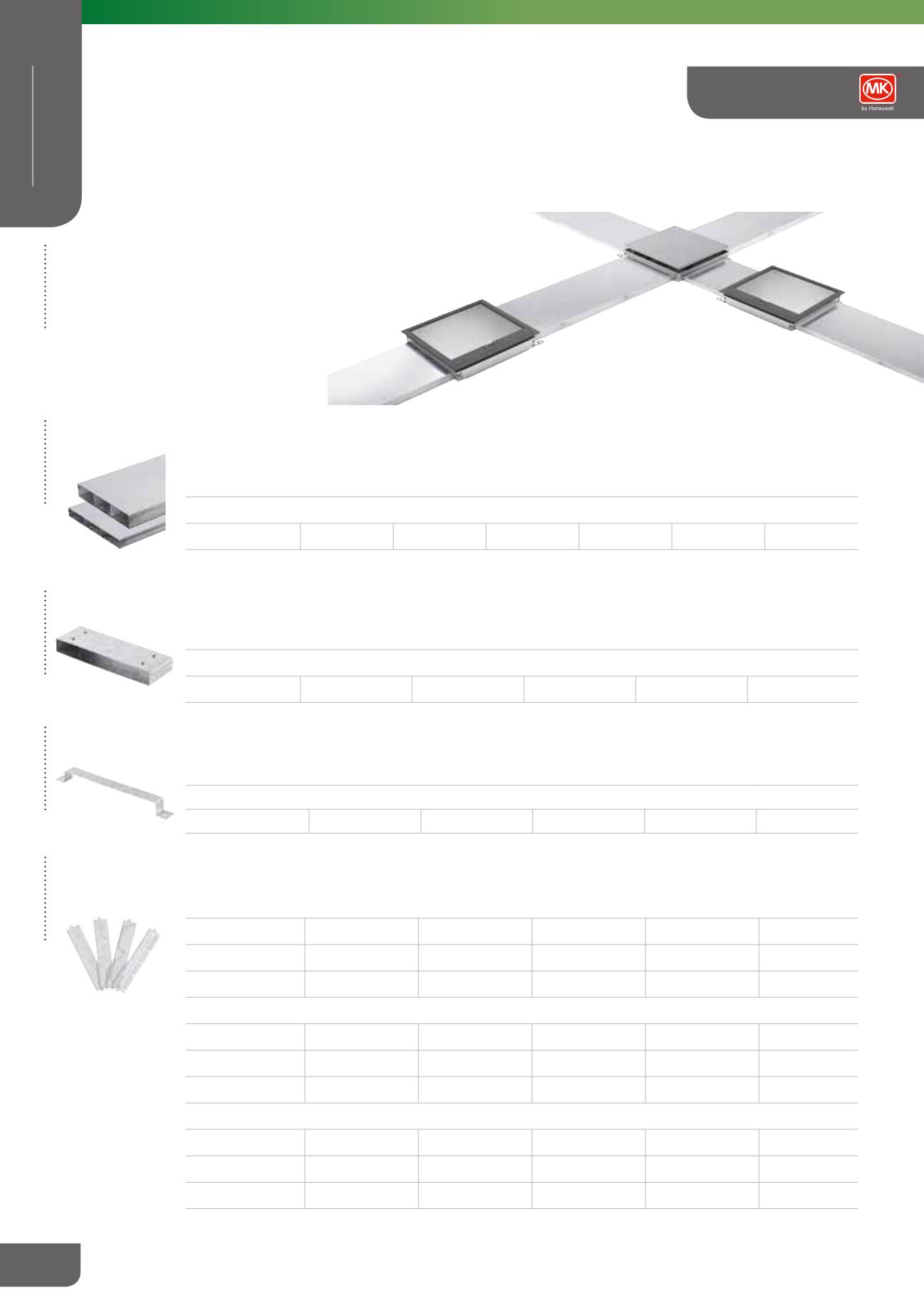

MK Electric Catalogue No. 49

422 / 759

Ducting Width
Compartment
100MM
1
225MM
2
225MM
3
250MM
3
275MM
3
300MM
3
Ducting Height
38MM CUD100-38-1 CUD225-38-2 CUD225-38-3 CUD250-38-3 CUD275-38-3 CUD300-38-3
Supplied in lengths of 2.44m.
Metal Ducting
Joint Sleeves
Fixing Clips
Metal Ducting System
Metal Ducting Systems are offered as an alternative to PVCu systems.
l Provide greater cable protection
l Provides EMC Screening
l Manufactured from pre-galvanised sheet steel
Side Adaptor
Plates
Ducting Width 100MM 225MM 250MM 275MM 300MM
Ducting Height
38MM CUDJ100-38 CUDJ225-38 CUDJ250-38 CUDJ275-38 CUDJ300-38
Ducting Width 100MM 225MM 250MM 275MM 300MM
Ducting Height
38MM CUDF100-38 CUDF225-38 CUDF250-38 CUDF275-38 CUDF300-38
Side plate CUBP200-01 CUBP200-02 CUBP200-03 CUBP200-04 CUBP200-08
APERTURE TYPE BLANK BLANK ROUND CONDUIT* PVC PVC METAL DUCTING
APERTURE SIZE (MM) 25 / 20 60 / 25 90 / 35 UP TO 100X38
NO. PER PLATE 2/2 2 1
Side plate CUBP265-01 CUBP265-02 CUBP265-03 CUBP265-04 CUBP265-08
APERTURE TYPE BLANK BLANK ROUND CONDUIT* PVC PVC METAL DUCTING
APERTURE SIZE (MM) 25 / 20 60 / 25 90 / 35 UP TO 225X38
NO. PER PLATE 3/2 3 2
Side plate CUBP340-01 CUBP340-02 CUBP340-03 CUBP340-04 CUBP340-08
APERTURE TYPE BLANK BLANK ROUND CONDUIT* PVC PVC METAL DUCTING
APERTURE SIZE (MM) 25 / 20 60 / 25 90 / 35 UP TO 300X38
NO. PER PLATE 4/4 4 3
See page 421 for information regards PVCu ducting, page 422 for metal ducting.
* Knockouts 20mm and 25mm.
422
FLOOR SYSTEMS
SCREEDED
Screed System
