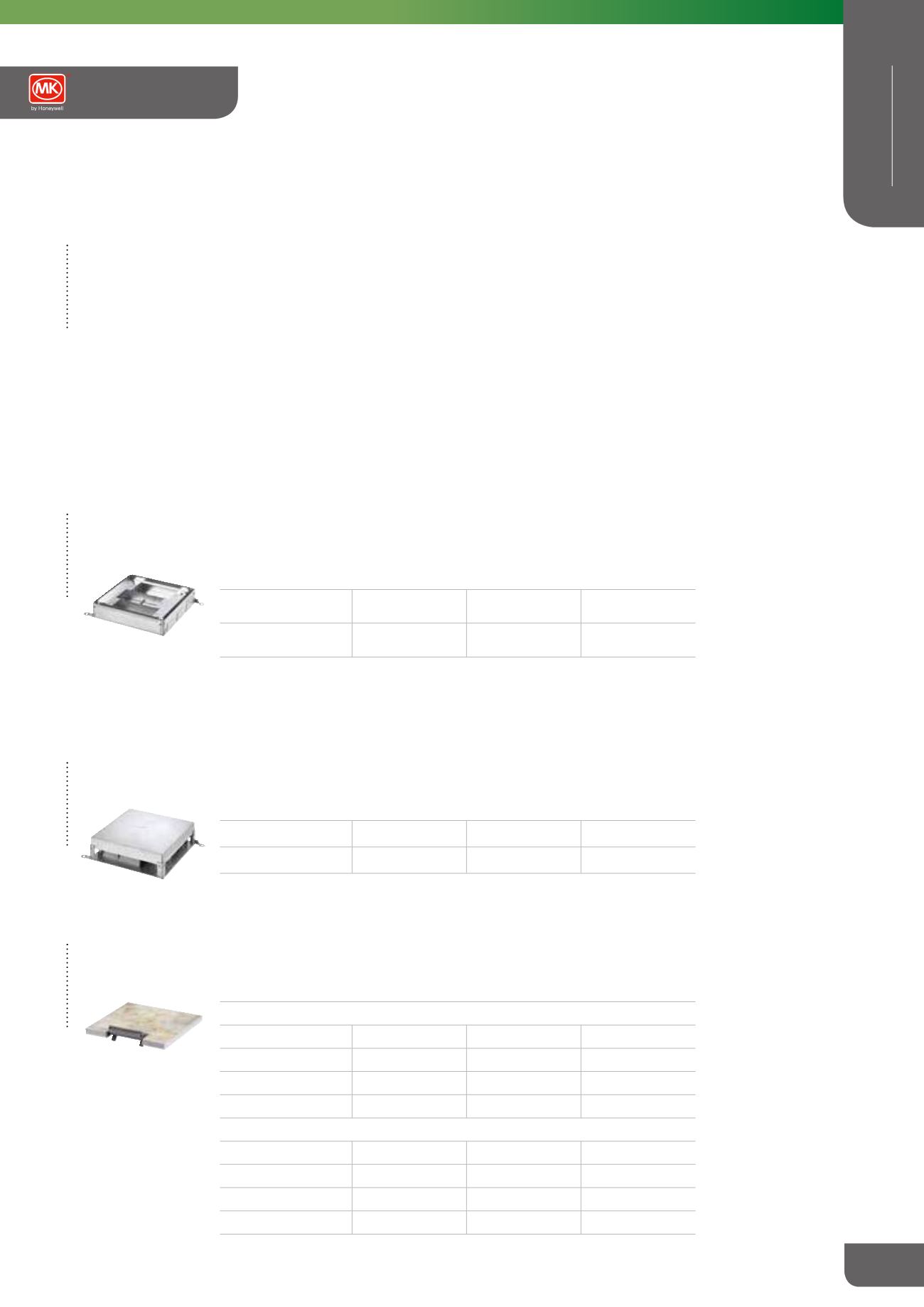

Onix Plus
™
Boxes, Cord Outlet and Blank Lids
The Base Units are installed prior to screeding. Designed for use with the Cablelink Plus Screed Ducting System – see
page 422 for more details. Blank Lid is suitable for wet wash applications.
Onix Plus Box Selector Guide
l
Service Outlet Boxes and Junction Boxes are ordered as two parts, “Base” and “Lid”
l
Junction Boxes – are supplied as a base and cable flyover
l
Base – identify screed depth, number of compartments required and preferred box size
l
Lid – choice of lid type. Cord Outlet Lid or Blank Lid. Cord caps must be ordered separately
l
Accessory Plates – select from wide range of power and data options, see page 423 for details
l
Alternative deeper Junction Boxes and Screed Base Unit depths are available - please contact Technical Services for details
Screed Base
Units: Standard
Base size
Compartment
200 x 200mm
2
265 x 265mm
3
340 x 340mm
4
SCREED 55-80MM
35MM WIRING SPACE
NXB200UK-2
NXB265UK-3
NXB340UK-4
SCREED 80-110MM
35MM WIRING SPACE
NXB265XUK-3 NXB340XUK-4
Wiring space can also be reduced to 25mm when used in shallow screed depths. Both require the use of a plate height adjustment
kit – part number CUBA-1. For 200 x 200mm base, use ‘Compact’ power and data plates only – see page 423.
Supplied with four PVC side adaptor plates. Number of apertures varies by size: 200 x 200mm – 2 x 60 x 25mm,
265 x 265mm – 3 x 60 x 25mm and 340 x 340mm – 3 x 90 x 35mm. See page 423 for alternative plates.
If screed depth is 55-65mm, reduce wiring space to 25mm by use of suitable CUBA kit and use side entry power socket outlets –
see page 423.
Junction Boxes
Size
200 x 200mm 265 x 265mm 340 x 340mm
55-80MM
NXJ200UK
NXJ265UK
NXJ340UK
80-110MM
NXJ200XUK
NXJ265XUK
NXJ340XUK
Supplied complete with a disposable steel screed lid and cable flyover as standard. LIDS MUST BE ORDERED SEPARATELY.
Supplied with four side adaptor plates, 4 x PVC ducting plates. Number of apertures varies by size:
200 x 200mm – 2 x 60 x 25mm, 265 x 265mm – 3 x 60 x 25mm and 340 x 340mm – 3 x 90 x 35mm. See page 411 for alternative plates.
Box Lids: Cord
Outlet Lid
Size
200 x 200mm 265 x 265mm 340 x 340mm
Depth 55-80mm
RECESSS DEPTH 15MM
NXLC200-15
NXLC265-15
NXLC340-15
RECESSS DEPTH 20MM
NXLC200-20
NXLC265-20
NXLC340-20
RECESSS DEPTH 25MM
NXLC200-25
NXLC265-25
NXLC340-25
RECESSS DEPTH 30MM
NXLC200-30
NXLC265-30
NXLC340-30
Depth 80-110mm
RECESSS DEPTH 15MM
NXLC200X-15
NXLC265X-15
NXLC340X-15
RECESSS DEPTH 20MM
NXLC200X-20
NXLC265X-20
NXLC340X-20
RECESSS DEPTH 25MM
NXLC200X-25
NXLC265X-25
NXLC340X-25
RECESSS DEPTH 30MM
NXLC200X-30
NXLC265X-30
NXLC340X-30
Cord outlet lid is not suitable for wet wash applications. Supplied as stainless steel lid.
Cord caps must be ordered separately. Lids are supplied with frame and fittings.
