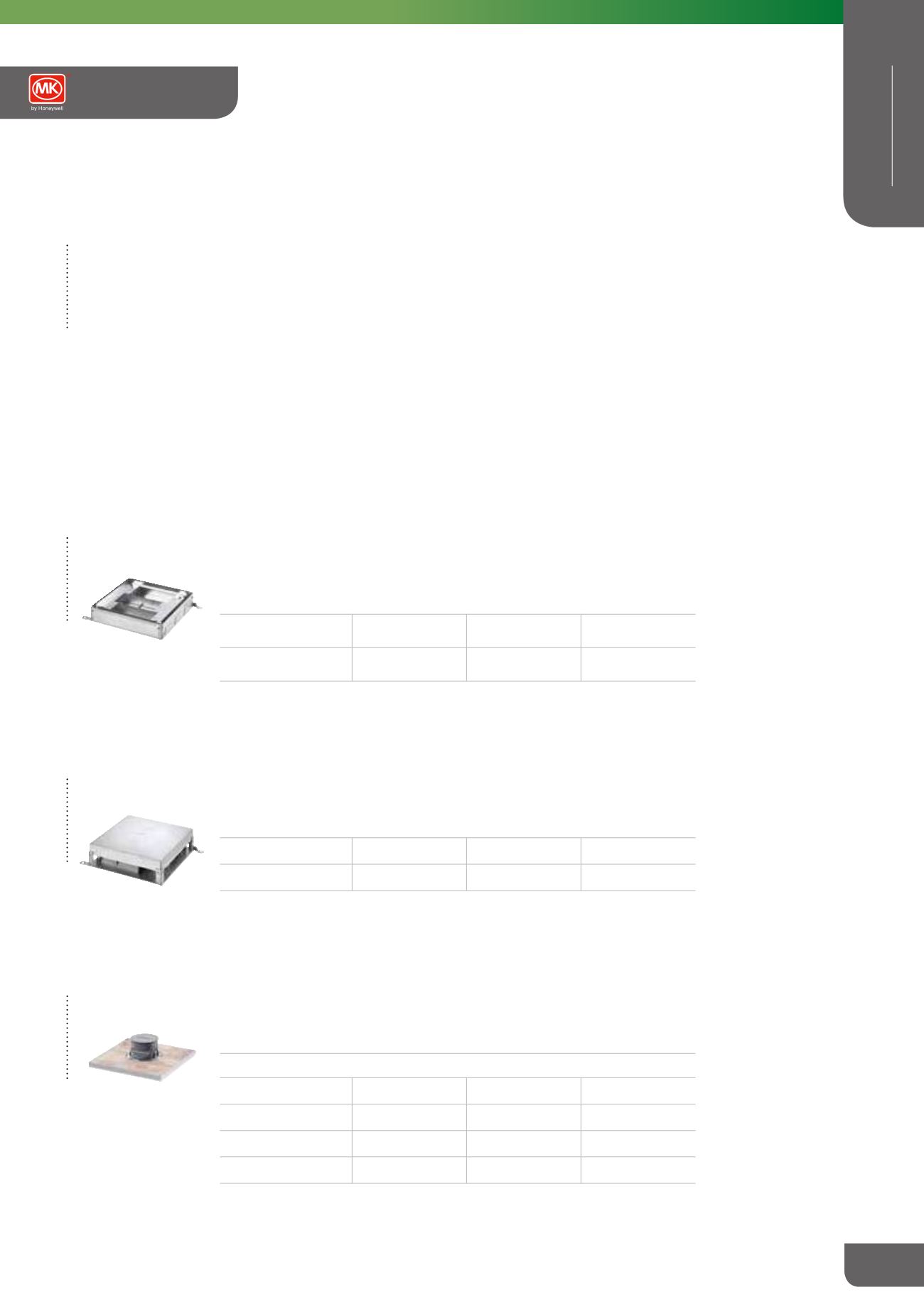

Onix Plus
™
Boxes and Snorkel Lids
The Base Units are installed prior to screeding. Designed for use with the Cablelink Plus Screed Ducting System
(see page 422 for more details). Snorkel design allows floor to be washed even when in use – IP44 when not in use,
IP2 x when in use.
Onix Plus Box Selector Guide
l
Service Outlet Boxes and Junction Boxes are ordered as two parts – “Base” and “Lid”
l
Base – identify screed depth, number of compartments required and preferred box size
l
Lid – choice of lid type, available with and without snorkel
l
Junction Box – supplied complete with disposable steel screed lid and cable flyover
l
Accessory Plates – select from wide range of power and data see page 423 for details
l
Alternative deeper Junction Boxes and Screed Base Unit depths are available - please contact Technical Services for details
Box Lid: Snorkel Lid
Size
200 x 200mm 265 x 265mm 340 x 340mm
Depth 80-110 MM
RECESS DEPTH 15MM
NXLS200X-15
NXLS265X-15
NXLS340X-15
RECESS DEPTH 20MM
NXLS200X-20
NXLS265X-20
NXLS340X-20
RECESS DEPTH 25MM
NXLS200X-25
NXLS265X-25
NXLS340X-25
RECESS DEPTH 30MM
NXLS200X-30
NXLS265X-30
NXLS340X-30
See page 685 to determine the minimum screed depth/finished floor depth combination required to enable the snorkel lid to close.
All supplied as stainless steel lid with snorkel. Lids are supplied with frame and fittings.
Screed Base Units: Standard
Base size
Compartment
200 x 200mm
2
265 x 265mm
3
340 x 340mm
4
SCREED 55-80MM
35MM WIRING SPACE
NXB200UK-2
NXB265UK-3
NXB340UK-4
SCREED 80-110MM
35MM WIRING SPACE
NXB265XUK-3 NXB340XUK-4
Wiring space can also be reduced to 25mm when used in shallow screed depths. Both require the use of a plate height adjustment
kit - part number CUBA-1. For 200x200mm base, use ‘Compact’ power and data plates only – see page 423.
Supplied with PVC ducting side plates. Number of ducting knockouts varies by size: 200 x 200mm – 2 x 60 x 25mm,
265 x 265mm – 3 x 60 x 25mm and 340 x 340mm – 3 x 90 x 35mm. see page 423 for alternative plates.
If screed depth is 55-65mm, reduce height by use of CUBA-1 and use side entry power socket outlets – see page 423.
Junction Boxes
Size
200 x 200mm 265 x 265mm 340 x 340mm
55-80MM
NXJ200UK
NXJ265UK
NXJ340UK
80-110MM
NXJ200XUK
NXJ265XUK
NXJ340XUK
Disposable steel screed lid and cable flyover supplied as standard.
LIDS MUST BE ORDERED SEPARATELY.
Supplied with four side adaptor plates, 4 PVC ducting plates. Number of ducting knockout varies by size:
200x200mm – 2 x 60 x 25mm, 265 x 265mm – 3 x 60 x 25mm and 340 x 340mm – 3 x 90 x 35mm. see page 411 for alternative plates.
Increased screed depth junction boxes available on request.
