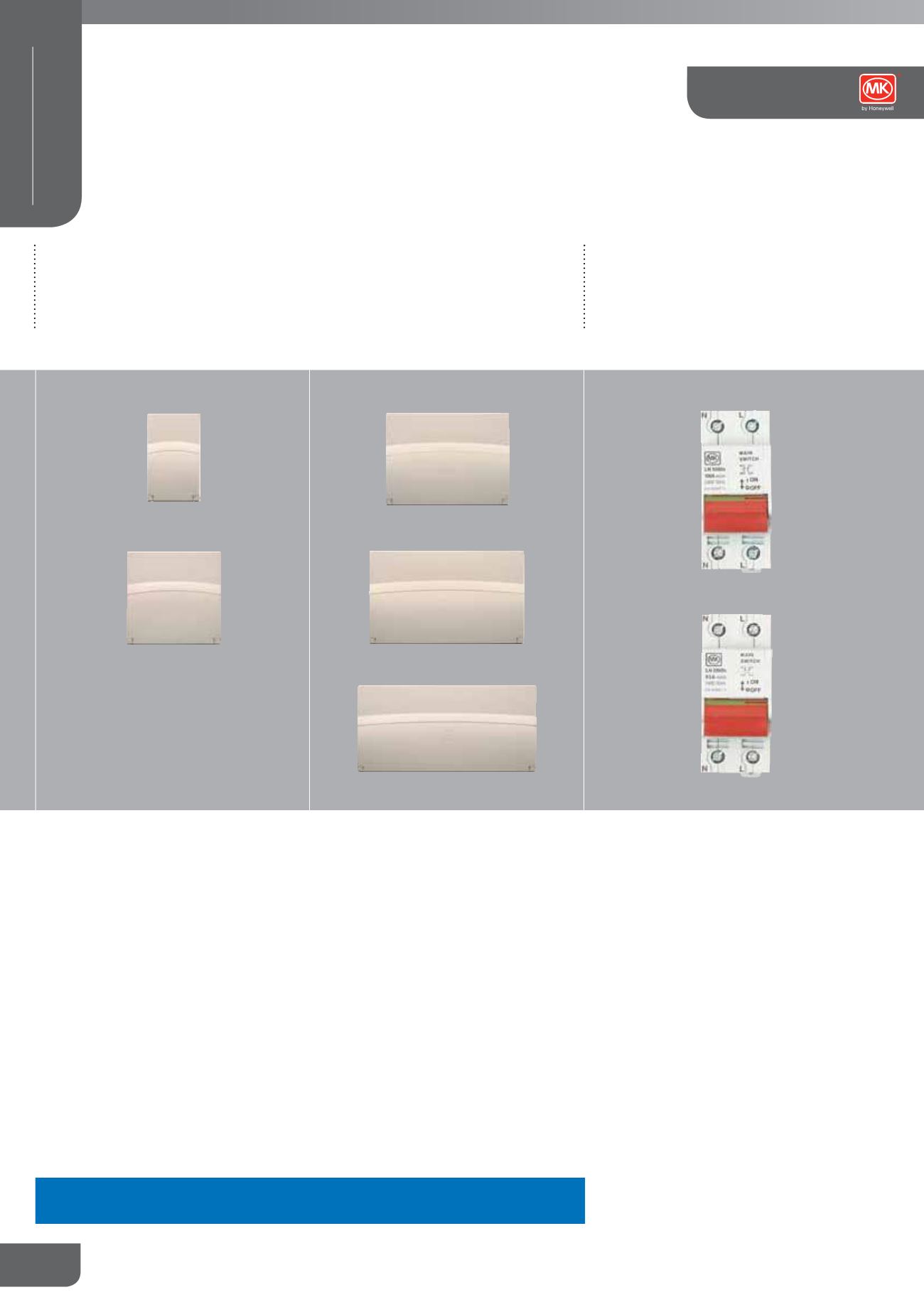

MK Electric Catalogue No. 49

278 / 759

K5604SMAG 1
4 WAY ENCLOSURE
ACCEPTS 4 ONE MODULE PRODUCTS
(1 INTEGRAL NEUTRAL BAR)
K5608SMAG 1
8 WAY ENCLOSURE
ACCEPTS 8 ONE MODULE PRODUCTS
(1 INTEGRAL NEUTRAL BAR)
All units are magnolia coloured.
All units feature a robust base together with an all over front
cover and moulded lid in an impact resistant, flame retardant
thermoplastic. Cable entry points are located on top, bottom, side
and rear surfaces.
DIMENSIONS: Width Height Depth
K5604sMAG 140 x 230 x 110mm
K5608sMAG 234 x 230 x 110mm
K5612sMAG 306 x 230 x 110mm
K5616sMAG 378 x 230 x 110mm
K5621sMAG 468 x 230 x 110mm
MAIN INCOMER MAXIMUM RATING
K5604sMAG and K5504sMAG: 63A
All other consumer units: 100A
K5612SMAG 1
12 WAY ENCLOSURE
ACCEPTS 12 ONE MODULE PRODUCTS
(2 INTEGRAL NEUTRAL BARS
FITTED WITH LINK)
K5616SMAG 1
16 WAY ENCLOSURE
ACCEPTS 16 ONE MODULE PRODUCTS
(3 INTEGRAL NEUTRAL BARS
FITTED WITH LINK)
K5621SMAG 1
21 WAY ENCLOSURE
ACCEPTS 21 ONE MODULE PRODUCTS
(4 INTEGRAL NEUTRAL BARS
FITTED WITH LINKS)
K5687SMAG17ED 1
Degree of protection to BS EN 60529 to IP2XC.
Precautions must be taken to maintain the IP rating, e.g. use of
cable glands and knockouts.
BS EN 60439-3:1999
INSULATED
SURFACE
K5604sMAG
K5608sMAG
FACTORY BUILT SERVICE: MK can save you time and money by pre-assembling
consumer units with your required Sentry components
K5612sMAG
K5616sMAG
K5621sMAG
Consumer Units Switch
Disconnectors
Double Pole
TWO MODULE
5500s 5
100A 230V
5560s 5
63A 230V
Suitable for installation in Sentry Consumer Units and two or four
module enclosures. Accepts direct to busbar or cable-in / cable-out
connection.
CATEGORY OF DUTY:
AC22A for switching of resistive and inductive loads.
Positive contact status indication in accordance with 17th Edition IEE
Wiring Regulations
(537.2.2.2 and 537.3.2.2)
DIMENSIONS:
81 x 36 x 76mm
CABLE CAPACITY:
50mm²
BS EN 60947-3:1999
5560s
5500s
278
CIRCUIT PROTECTION
Sentry
