MK Electric Catalogue No. 49

276 / 759

SPLIT-LOAD
SINGLE RCD ARRANGEMENTS
METAL
SURFACE
K5682 SMET 1
12 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
63A 30mA RCD
ACCEPTS A FURTHER 8 ONE MODULE
PRODUCTS
K5689 SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
63A 30mA RCD
ACCEPTS A FURTHER 12 ONE MODULE
PRODUCTS
All units are white coloured.
All units are pre-fitted with a switch disconnector
and RCD together with all the necessary
split-load cabling. The flexibility of design allows
the RCD to be positioned to suit the required
configuration of RCD protected and non-protected
circuits, subject to the rating of either the switch
or RCD not being exceeded. MK recommends
the use of RCBO’s for non RCD protected circuits
to comply with the 17th Edition Amendment 3
Wiring Regulations.
DIMENSIONS: Width Height Depth
4 WAY 144 x 244 x 116mm
8 WAY 238 x 244 x 116mm
12 WAY 310 x 244 x 116mm
16 WAY 382 x 244 x 116mm
21 WAY 472 x 244 x 116mm
MAIN INCOMER RATING:
4 way enclosures: 63A
8, 12, 16 & 21 way enclosures: 100A
Degree of protection to BS EN 60529 to IP2XC.
Precautions must be taken to maintain the IP
rating, e.g. Use of cable glands and knockouts.
BS EN 61439-3
K5662 SMET 1
12 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
80A 30mA RCD
ACCEPTS A FURTHER 8 ONE MODULE
PRODUCTS
K5685 SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
80A 30mA RCD
ACCEPTS A FURTHER 12 ONE MODULE
PRODUCTS
K5684 SMET 1
21 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
80A 30mA RCD
ACCEPTS A FURTHER 17 ONE MODULE
PRODUCTS
K5666SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
2 X 63A 30mA RCD’S
ACCEPTS A FURTHER 10 ONE MODULE
PRODUCTS
K5688SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
2 X 80A 30mA RCD’S
ACCEPTS A FURTHER 10 ONE MODULE
PRODUCTS
K5686SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
1 X 63A & 1 X 80A 30mA RCD’S
ACCEPTS A FURTHER 10 ONE MODULE
PRODUCTS
K5683SMET 1
21 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
2 X 63A 30mA RCD’S
ACCEPTS A FURTHER 15 ONE MODULE
PRODUCTS
K5687SMET 1
21 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
2 X 80A 30mA RCD’S
ACCEPTS A FURTHER 15 ONE MODULE
PRODUCTS
K5681SMET 1
21 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
1 X 63A & 1 X 80A 30mA RCD’S
ACCEPTS A FURTHER 15 ONE MODULE
PRODUCTS
All units are white coloured.
All units are pre-fitted with a switch disconnector
and RCD together with all the necessary
split-load cabling. The flexibility of design allows the
RCD to be positioned to suit the required
configuration of RCD protected and non-protected
circuits, subject to the rating of either the switch
or RCD not being exceeded. MK recommends the
use of RCBO’s for non RCD protected circuits to
comply with the 17th Edition Amendment 3 Wiring
Regulations.
DIMENSIONS: Width Height Depth
4 WAY 144 x 244 x 116mm
8 WAY 238 x 244 x 116mm
12 WAY 310 x 244 x 116mm
16 WAY 382 x 244 x 116mm
21 WAY 472 x 244 x 116mm
MAIN INCOMER RATING:
4 way enclosures: 63A
8, 12, 16 & 21 way enclosures: 100A
Degree of protection to BS EN 60529 to IP2XC.
Precautions must be taken to maintain the IP rating,
e.g. Use of cable glands and knockouts.
BS EN 61439-3
Cover mounted blanks are supplied with ALL consumer units
(2 off x 1 for 4, 8 & 2 way enclosures and 2 off x 2 for 16 & 21 way enclosures)
SPLIT-LOAD
DUAL RCD ARRANGEMENTS
METAL
SURFACE
Consumer Units

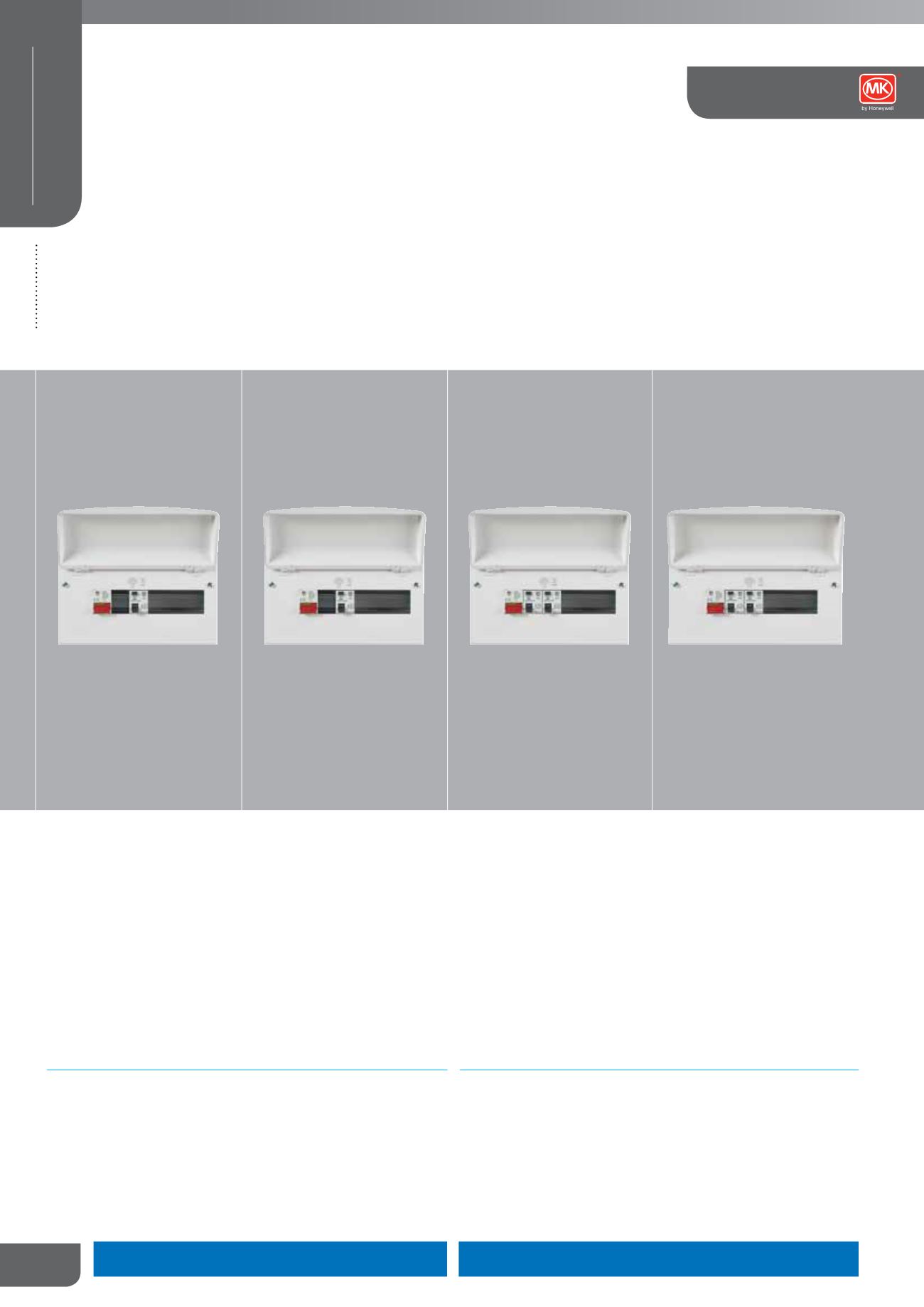

K5682sMET K5662sMET K5666sMET K5687sMET
FACTORY BUILT SERVICE: MK can save you time and money by pre-assembling
consumer units with your required Sentry components 276
CIRCUIT PROTECTION
Sentry
