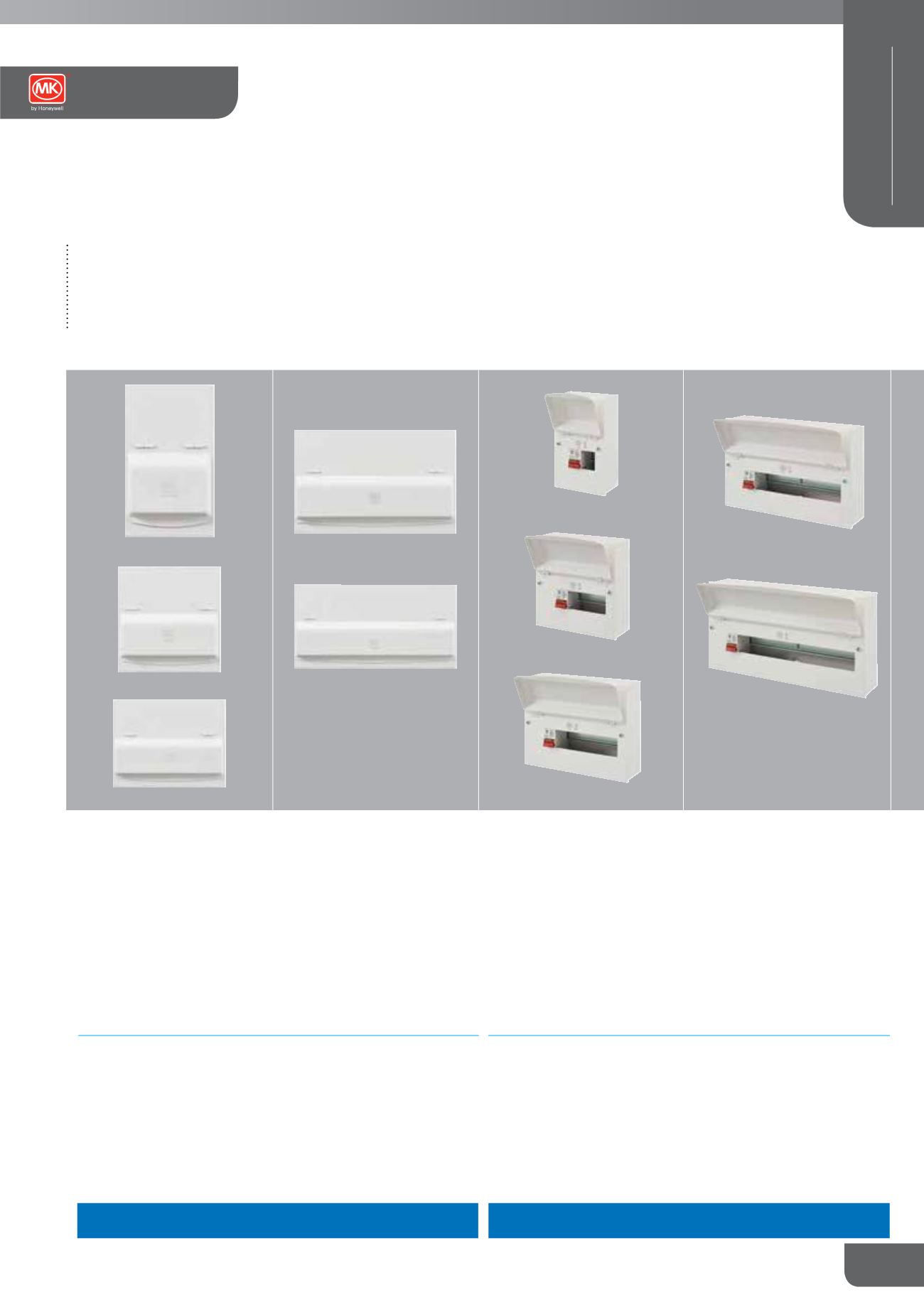

MK Electric Catalogue No. 49

275 / 759

Consumer Units
METAL
ENCLOSURE ONLY
SURFACE
METAL
ENCLOSURE + SWITCH
DISCONNECTOR
SURFACE
K5604SMET 1
4 WAY ENCLOSURE
ACCEPTS 4 ONE MODULE PRODUCTS
(1 INTEGRAL NEUTRAL BAR)
K5608SMET 1
8 WAY ENCLOSURE
ACCEPTS 8 ONE MODULE PRODUCTS
(1 INTEGRAL NEUTRAL BAR)
K5612SMET 1
12 WAY ENCLOSURE
ACCEPTS 8 ONE MODULE PRODUCTS
(2 INTEGRAL NEUTRAL BARS FITTED
WITH LINKS)
All units are white coloured.
All units feature a robust galvanized metal base,
lid & door.
The DIN rail embodies a useful alignment and
fixing mechanism that allows quick installation.
Cable entry points are located on top, bottom,
side and rear surfaces.
DIMENSIONS: Width Height Depth
4 WAY 144 x 244 x 116mm
8 WAY 238 x 244 x 116mm
12 WAY 310 x 244 x 116mm
16 WAY 382 x 244 x 116mm
21 WAY 472 x 244 x 116mm
MAIN INCOMER RATING:
4 way enclosures: 63A
8, 12, 16 & 21 way enclosures: 100A
Degree of protection to BS EN 60529 to IP2XC.
Precautions must be taken to maintain the IP
rating, e.g. Use of cable glands and knockouts.
BS EN 61439-3
FACTORY BUILT SERVICE: MK can save you time and money by pre-assembling consumer
units with your required Sentry components
K5616SMET 1
16 WAY ENCLOSURE
ACCEPTS 16 ONE MODULE PRODUCTS
(3 INTEGRAL NEUTRAL BARS FITTED
WITH LINKS)
K5621SMET 1
21 WAY ENCLOSURE
ACCEPTS 21 ONE MODULE PRODUCTS
(3 INTEGRAL NEUTRAL BARS FITTED
WITH LINKS)
K5704SMET 1
4 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
ACCEPTS A FURTHER 2 ONE MODULE
PRODUCTS
K5708SMET 1
8 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
ACCEPTS A FURTHER 6 ONE MODULE
PRODUCTS
K5712SMET 1
12 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
ACCEPTS A FURTHER 10 ONE MODULE
PRODUCTS
K5716 SMET 1
16 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
ACCEPTS A FURTHER 14 ONE MODULE
PRODUCTS
K5721 SMET 1
21 WAY ENCLOSURE
100A SWITCH DISCONNECTOR
ACCEPTS A FURTHER 19 ONE MODULE
PRODUCTS
All units are pre-fitted with a switch disconnector
DIMENSIONS: Width Height Depth
4 WAY 144 x 244 x 116mm
8 WAY 238 x 244 x 116mm
12 WAY 310 x 244 x 116mm
16 WAY 382 x 244 x 116mm
21 WAY 472 x 244 x 116mm
MAIN INCOMER RATING:
4 way enclosures: 63A
8, 12, 16 & 21 way enclosures: 100A
Degree of protection to BS EN 60529 to IP2XC.
Precautions must be taken to maintain the IP
rating, e.g. Use of cable glands and knockouts.
BS EN 61439-3
Cover mounted blanks are supplied with ALL consumer units
(2 off x 1 for 4, 8 and 12 way enclosures and 2 off x 2 for 16 and 21 way enclosures)
K5604sMET
K5608sMET
K5612sMET
K5616sMET
K5621sMET
K5704sMET
K5708sMET
K5712sMET
K5716sMET
K5721sMET
