CONSUMER UNIT SELECTION GUIDE
STEP 1
Determine the type of consumer unit configuration required. e.g Split Load,
Standard or combination of split load / single RCD or dual RCD. For each Switch
Disconnector or RCD to be used allow 2 modular ways.
STEP 2
Determine the number of outgoing circuits required. e.g Cooker, Lighting, Ring Main
etc. For each circuit to be protected by an MCB or RCBO allow 1 modular way.
STEP 3
Determine what control products are required. e.g Bell Transformer, Time Delay
Switch, contactors, timeswitches etc.
STEP 4
Determine the number of ‘spare’ modular ways required for future upgrades. For
each ‘spare’ modular way select 1 Sentry blank module – 5544s or K5545sMAG
(cover mounted blanks supplied with consumer units. See page 286).
STEP 5
Now add together the total number of modular ways required.
STEP 6
Select from our range of Insulated, Metal, Flush or stacked consumer units (using
standard consumer units plus stacking kits). Choose the type and size most
appropriate for your requirements.

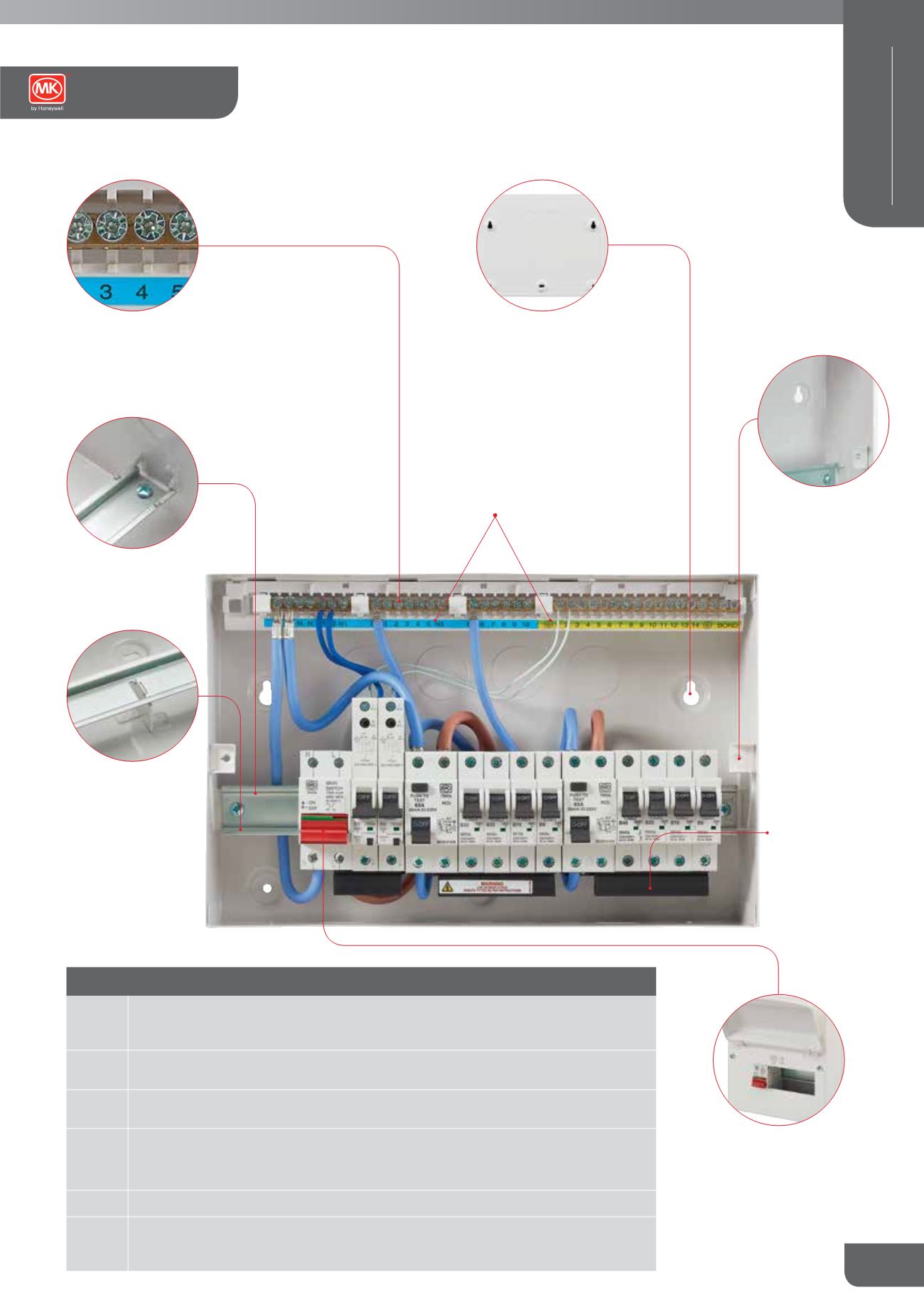

Easily removable Din Rail
Simplifying and easing first fix
Floating busbar
system
For maximum
installation flexibility
including acceptance
of control modules
Backed out and captive
combi-head screws
Allows simple and speedy installation
Fixing holes
Tripod fixing to cope
with uneven surfaces
NEW
: 10mm
Increased Height
Additional wiring space
NEW
: Supporting
Din Rail
“T” Bar
Additional support
to prevent bowing
and twisting which
has been raised for
improved cable routing
Colour coded earth and
neutral terminal locked
At top of unit for ease of wiring
Offset Incomer
Provides additional wiring
space making mains input
connections easier
