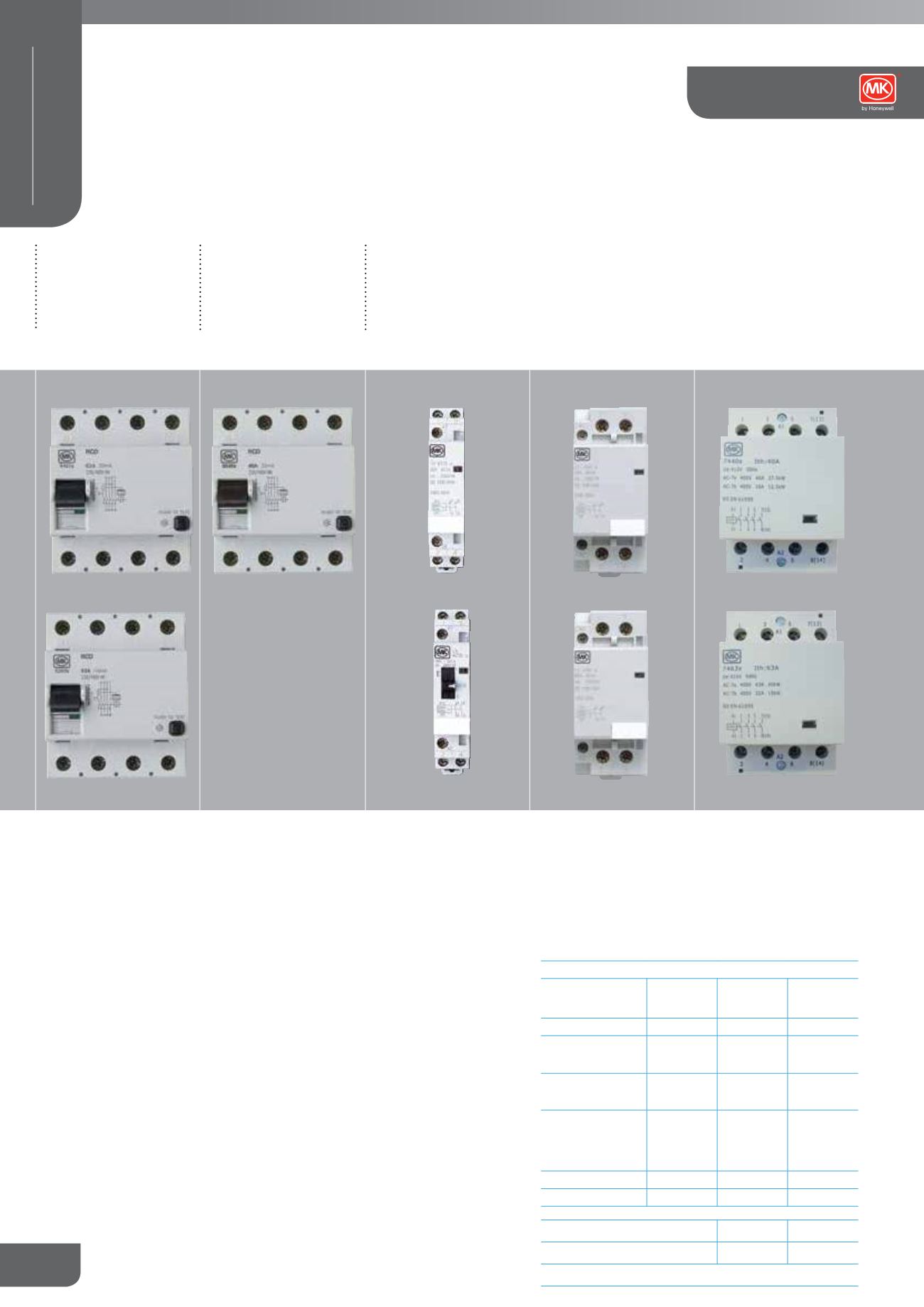

CONTACTOR RATINGS:
List no
6220s
6420s
6720s
7240s
7440s
7263s
7463s
RATED CURRENT
I
th
20A
40A
63A
HEATING
Single phase 230V
Three phase 400V
5.4kW
16kW
8.6kW
26kW
13.6kW
41kW
MOTORS
Single phase 230V
Three phase 400V
1.1kW
4kW
2.2kW
7.5kW
4kW
11kW
LIGHTING
Incandescent and
Halogen lamps:
Fluorescent Lamps:
(Electronic Ballast)
2,800W
2,000W
7,000W
4,200W
10,000W
6,300W
VOLTAGE RATING
(coil)
230V 50Hz
230V 50Hz
230V 50Hz
CABLE CAPACITY
6mm
2
rigid
25mm
2
rigid 25mm
2
rigid
BS EN 61095
DIMENSIONS:
6220S:
84 x 18 x 66mm
6420S:
84 x 36 x 66mm
6720S:
84 x 18 x 66mm
7240S:
84 x 36 x 66mm
7263S:
84 x 36 x 66mm
7440S:
84 x 54 x 66mm
7463S:
84 x 54 x 66mm (including half module blank)
Contactors
ONE MODULE
TWO MODULE
THREE MODULE
6420s
1
20A
FOUR POLE
7240s
1
40A
DOUBLE POLE
7263s
1
63A
DOUBLE POLE
7440s
1
40A
FOUR POLE
7463s
1
63A
FOUR POLE
6220s
6720s
7240s
7440s
7463s
7263s
6220s
1
20A
DOUBLE POLE
6720s
1
20A
DOUBLE POLE
WITH MANUAL OVERRIDE
Suitable for installation in Sentry
Consumer Units and two or four
module enclosures. Automatically
switches higher loads than possible
with a time switch eg; off peak tariffs.
A manual override enables the
temporary setting of the contactor in
either the on or off position in addition
to normal automatic operation.
When a contactor is mounted
alongside an MCB of greater than 10
amp current rating or two contractors
are mounted alongside an MCB or
side by side, it is necessary to insert
a blank module between them (list
no.5544s)
63 AMP
FOUR MODULE
Industrial 10kA RCD
Pulsating d.c.
Fault Current
Sensitive, Four Pole
Type A
FOUR MODULE
6463s
1
63A 230/400V
30mA TRIPPING CURRENT
6363s
1
63A 230/400V
100mA TRIPPING CURRENT
6263s
1
63A 230/400V
300mA TRIPPING CURRENT
6640s
1
40A 230/400V
30mA TRIPPING CURRENT
Suitable for installation in Sentry two
or four module enclosures.
Positive contact status indication
in accordance with 17th Edition IET
Wiring Regulations
(537.2.2.2 and 537.3.2.2)
DIMENSIONS:
85 x 72 x 75mm
CABLE CAPACITY:
50mm
2
BS EN 61008:1995
6640s
6463s
6363s
Industrial 10kA
RCDs Four Pole
Type AC
