289 / 759

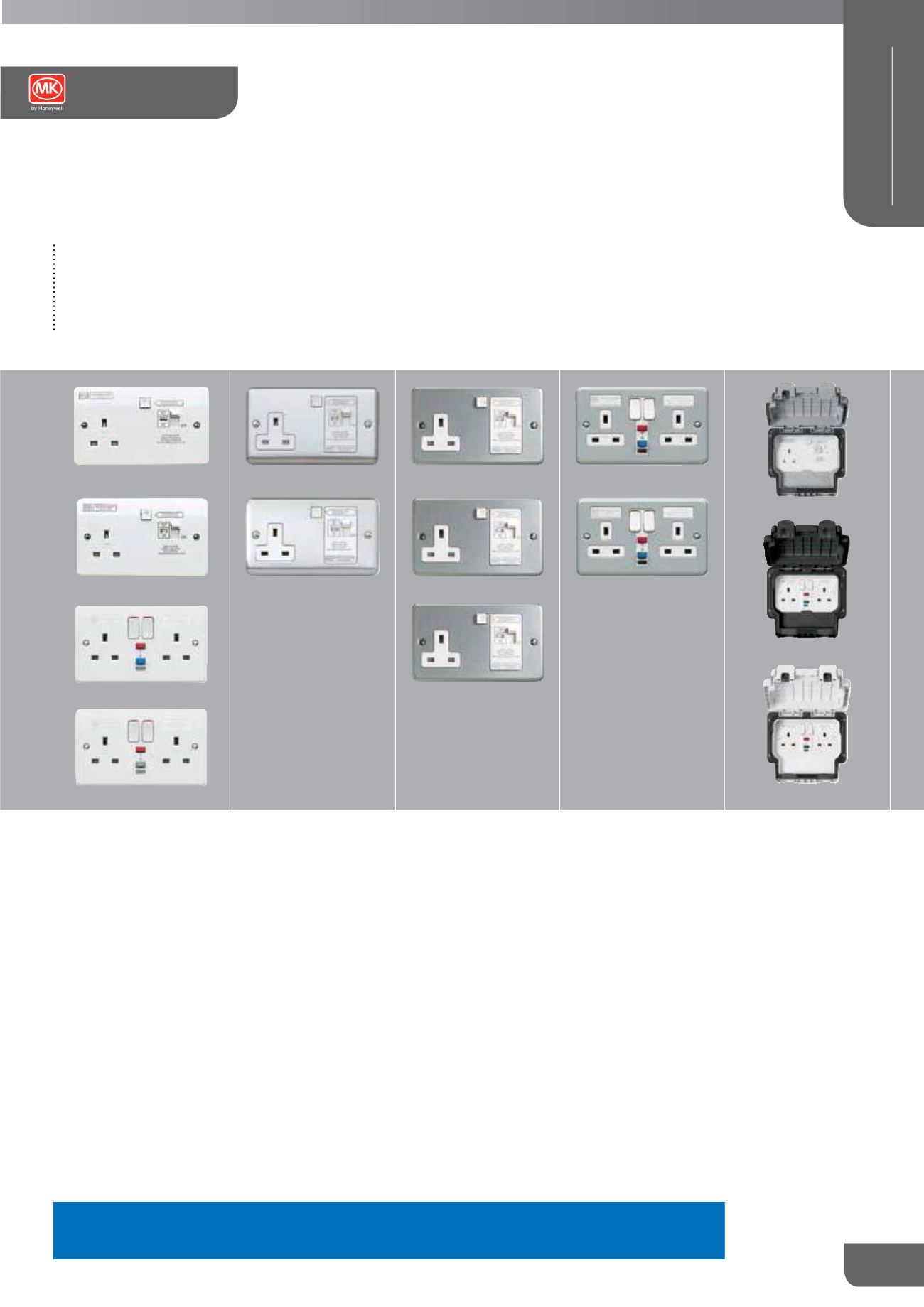

RCD Protected
Switchsocket Outlets
13 AMP
LOGIC PLUS
FLUSH
K6300WHI
1
1 GANG DP, 30mA RATED,
TRIPPING CURRENT,
ACTIVE CONTROL CIRCUIT
K6303WHI
1
1 GANG DP, 30mA RATED,
TRIPPING CURRENT, PASSIVE
CONTROL CIRCUIT
K6231WHI
1
2 GANG SP, 30mA RATED,
TRIPPING CURRENT,
ACTIVE CONTROL CIRCUIT
K6233WHI
1
2 GANG SP, 30mA RATED,
TRIPPING CURRENT,
PASSIVE CONTROL CIRCUIT
MOUNTING BOXES
Flush: 886ZIC – 35mm deep
Boxes must have a minimum depth
of 30mm
SURFACE
K2140WHI, 30mm deep, products have
up to 15mm thick frontplates
DIMENSIONS
86 x 146mm
FIXING CENTRES
120.6mm
BS 7288:1990
K6300WHI
K6231WHI
K6233WHI
K6102ALM
1
1 GANG DP
10mA RATED TRIPPING
CURRENT
ACTIVE CONTROL CIRCUIT
K6302ALM
1
1 GANG DP
30mA RATED TRIPPING
CURRENT
ACTIVE CONTROL CIRCUIT
K63O5ALM
1
1 GANG DP
30mA RATED TRIPPING
CURRENT
PASSIVE CONTROL CIRCUIT
DIMENSIONS
86 x 147 x 54mm
KNOCKOUTS
8 x 20mm
Three in top side, two in bottom side,
one in each end and one in base
SPARE BOX
K897ALM
BS 7288:1990
K6102ALM
K6302ALM
K6305ALM
METALCLAD PLUS
SURFACE
K6231ALM
1
2 GANG SP
30mA RATED TRIPPING
CURRENT
ACTIVE CONTROL CIRCUIT
K6233ALM
1
2 GANG SP
30mA RATED TRIPPING
CURRENT
PASSIVE CONTROL CIRCUIT
DIMENSIONS
86 x 147 x 54mm
KNOCKOUTS
8 x 20mm
Three in top side, two in bottom side,
one in each end and one in base
SPARE BOX
K897ALM
BS 7288:1990
K6231ALM
K6233ALM
MASTERSEAL PLUS
IP66
SURFACE
K56301GRY
1
K56301WHI
1
K56301BLK
1
1 GANG DP
30mA RATED TRIPPING
CURRENT ACTIVE CONTROL
CIRCUIT
K56231GRY
1
K56231WHI
1
K56231BLK
1
2 GANG SP
30mA RATED TRIPPING
CURRENT ACTIVE CONTROL
CIRCUIT
K56233GRY
1
K56233WHI
1
K56233BLK
1
2 GANG SP
30mA RATED TRIPPING
CURRENT
PASSIVE CONTROL CIRCUIT
Fixing holes are for No.8 woodscrews
(not supplied).
Supplied with an earth terminal in
the back box. The Sentrysocket has
5 entries. Suitable for supply voltage
of 240V a.c.
Standard Shutters
DIMENSIONS
157 x 175 x 89mm
BS 7288:1990
IP66 BS EN 60529:1992
K56301GRY
K56231BLK
K56231WHI
K6301BSS
1
K6301BRC
1
K6301PCR
K6301SAG
1
1 GANG DP
30mA RATED TRIPPING
CURRENT
ACTIVE CONTROL CIRCUIT
K6304BRC
1
K6304BSS
1
1 GANG DP
30mA RATED TRIPPING
CURRENT
PASSIVE CONTROL CIRCUIT
MOUNTING BOXES
Flush: 886ZIC – 35mm deep
Boxes must have a minimum depth
of 30mm
SURFACE
with knockouts: K897ALM
without knockouts: K830ALM
DIMENSIONS
86 x 146mm
FIXING CENTRES
120.6mm
BS 7288:1990
ALBANY PLUS
FLUSH
K6301BRC
K6304BSS
K6303WHI
All SENTRYSOCKETS ARE PULSATING D.C. AND A.C. FAULT CURRENT SENSITIVE PRODUCTS:
It is important to ensure that the correct control circuit , active or passive, is selected for each application.
Suitable for supply voltage of 240V a.c.
289
Technical Hotline
+44 (0)1268 563720
CIRCUIT PROTECTION
Sentrysocket
®
