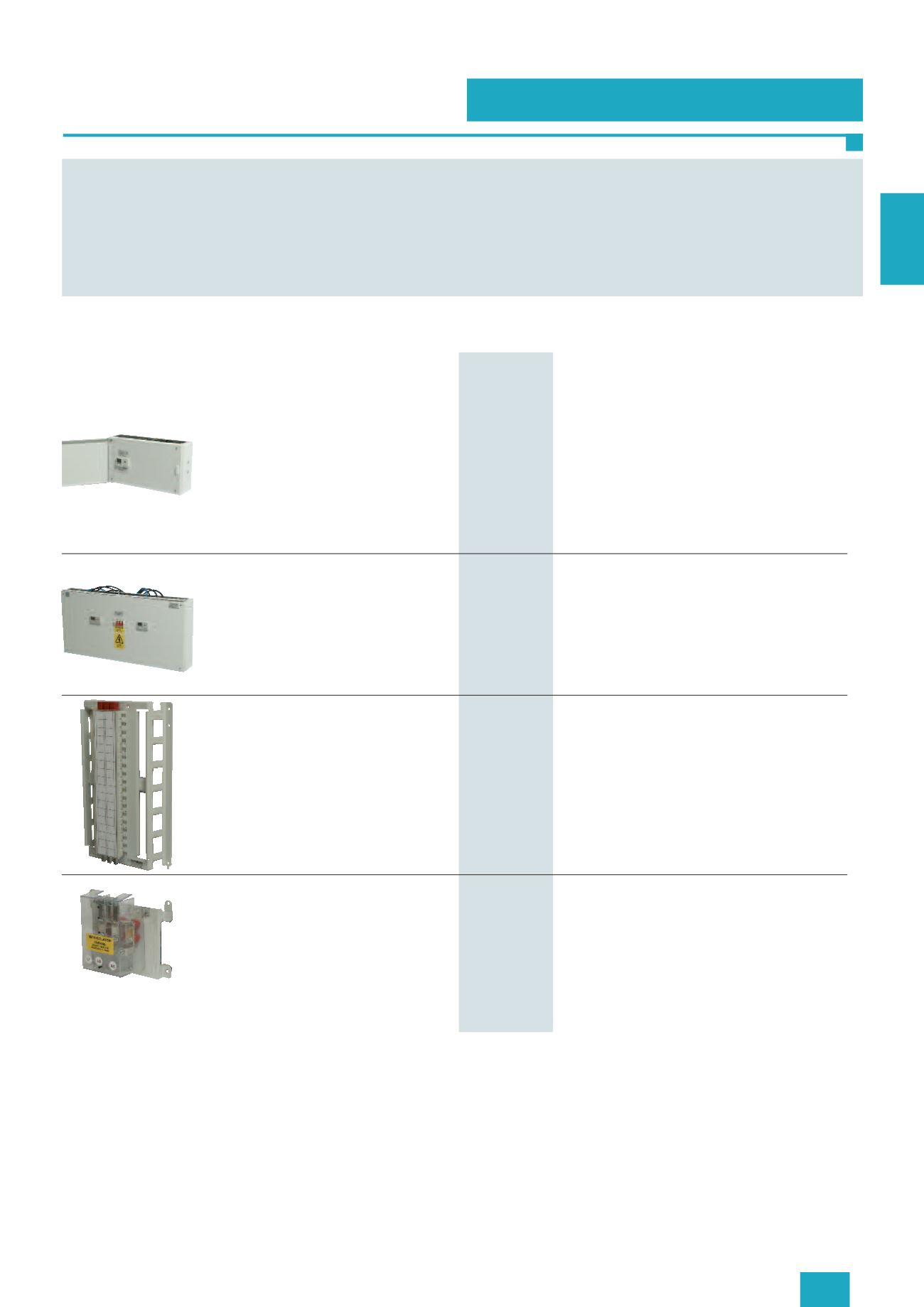

Add-on Metering & Pan Assemblies
Distribution Boards
Pan assembly Technical Data:
• Type Tested & ASTA Certified to IEC 61439-2
• 16kA for 0.1 second short circuit rating
• 25kA Conditional short circuit rating (Icc) to
IEC 61439-2 when used with 5SY8 mcb's
• Rated voltage 230/400V 50/60Hz
ALPHA BS II
Outgoing
External Dimensions Order No
ways
H x W x D (mm)
Contains: Digital meter offering Amps,Volts, kWh readout
plus pulsed output. 3 ct's, fuses & associated wiring
Internal dia of ct’s - 21mm
Add-on Meter Pack in Enclosure
200A ct op. 3ph 4w Energy Meter Pack - Std
200A ct op. 3ph 4w Energy Meter Pack - MID
Dims:
245
430 155
8GP1 990-4DA10
8GP1 991-4DA10
Contains: Common 200A TP Sw Disconnector, 2 Digital
meters offering Amps,Volts, kWh readout plus pulsed
output. ct's, fuses & associated cable loom
Horizontal Lighting & Power Board Metering
200A ct op.Twin 3ph 4w Energy Meter Pack - Std
200A ct op.Twin 3ph 4w Energy Meter Pack - MID
Dims:
735
860 155
8GP1 992-4DA10
8GP1 993-4DA10
List
Pack
Price
Weight
Price
Unit
Group 1 item (kg)
1
045
1
045
1
045
1
045
250A Pan Assemblies
Fault Rating: 25kA Conditional (Icc).
Incoming Kits for the above
4 way
154 224
8 way
262 224
12 way
370 224
16 way
478 224
20 way
586 224
24 way
694 224
8GP1 940-4DA41
8GP1 940-4DA43
8GP1 940-4DA44
8GP1 940-4DA45
8GP1 940-4DA46
8GP1 940-4DA47
1
045
0.85
1
045
1.70
1
045
2.54
1
045
3.38
1
045
4.23
1
045
5.09
125A Direct Conection Kit (10 kA)
200A TP Switch Disconnector Kit
200A TP mccb Kit
250A Direct Connection Kit - 120mm² cable
8GP1 855-0DA10
8GP1 933-0DA20
8GP1 933-0DA18
8GP1 933-0DA17
1
045
1.04
1
045
4.29
1
045
4.29
1
045
4.08
1
