Small enclosures, basic enclosures
Basic enclosures
2010
CA08103002Z-EN
www.eaton.com20/95

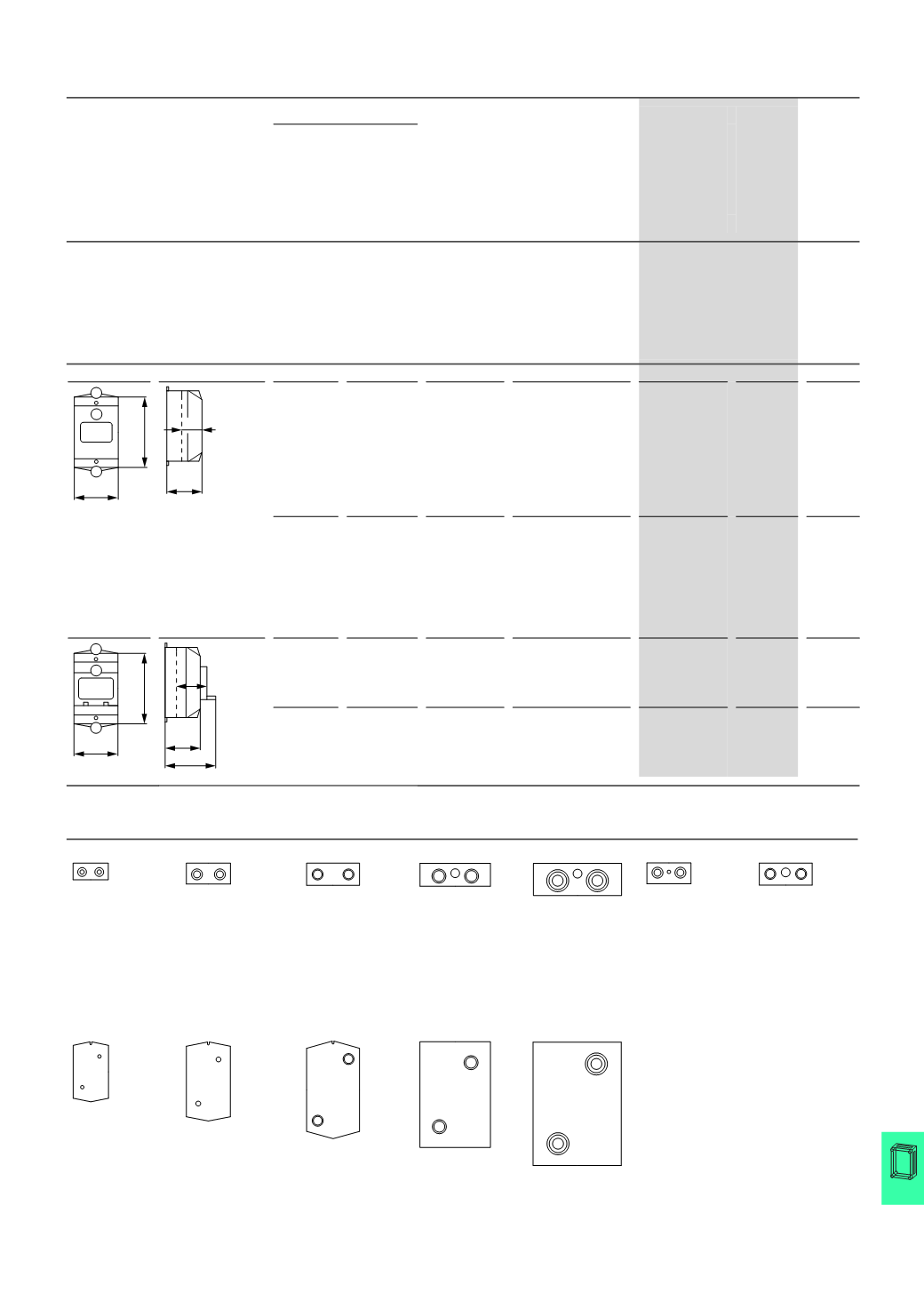

Dimensions
Enclosure depth:
Dimensions from top:
1.
Mounting depth for
mounting plate
2.
Mounting depth for
mounting rail 7.5 mm
height
3.
Enclosure depth
Mounting depth
Features
Part no.
Article no.
Price
See price
list
Std. pack
For
mounting
plate
For 7.5 mm
mounting rail
mm
mm
mm
CI-K2 basic enclosures
•
Protection type IP30, material characteristic glass-fibre reinforced polycarbonate
•
Enclosure base RAL 9005, black/enclosure top only RAL 7035, light grey
•
Metric cable entry knockouts top, bottom and in the back plate
•
Push-through cable entry diaphragm with CI-K2
•
Hard metric knockouts with CI-K2H
•
Control cable entry
•
Indicator light L-. can be mounted in base knock out M20/M25
–
–
46
With standard
cutout
dimensions
Standard cutout dimen-
sionsandmountingrailfor
mounting devices requir-
ing 2 to 4 space units.
Push-through cable
entry membrane. Close
off of unused space
units (max. 2) using
blanking strips VST1,
￫Page 20/98
CI-K2-80-A
211107
1
off
–
46
With standard
cutout
dimensions
Standard cutout
dimensions and mounting
rail for mounting devices
requiring 2 to 4 space
units. Hard metric knock-
outs. Close off of unused
space units (max. 2) using
blanking strips VST1,
￫Page 20/98
CI-K2H-80-A
229309
1
off
–
70
With hinged
cover
Transparent hinged cover
for mounting devices
requiring 2 to 4 space
units. Push-through cable
entry diaphragm.
CI-K2-80-K
211108
1
off
–
70
With hinged
cover
Transparent hinged cover
for mounting devices
requiring 2 to 4 space
units. Hard metric
knockouts.
CI-K2H-80-K
229310
1
off
Notes
Diaphragm grommets, cable glands ￫Chapter 16:
Accessories for panel construction
L
M
N
O
P
q
R
Knockouts
Knockouts
Knockouts
Knockouts
Knockouts
Knockouts
Knockouts
2
X M20 or push-
throughmembraneup
to max. ⌀ 12 mm
2
x M25 or push-
through membrane up
to max. ⌀ 16 mm
CI-K2H: 2 x M25/20
2
x M25/20
2
x M32/25
2
x M50/40/25
2
x M25 or push-
through membrane
up to max. ⌀ 16 mm
and 1 push-through
membrane up to
max. ⌀ 8 mm
CI-K2H: 2 x M25/20
2
x M25/20
1
x M20
1
x M20
1
x M20
S
T
U
V
W
Back plate:
Back plate:
Back plate:
Back plate:
Back plate:
2
x push-through
membrane up to max.
⌀ 8mm
2
x push-through mem-
brane up to max. ⌀
11
mm
2
x M25/20
2
x M32/25
2
x M50/40/25
(
not for CI-K2H)
100
160
T
Q
M
46
80
Q
M
T
100
160
80
70
115
CI-K2
HPL20095EN
