20/92 Small enclosures, basic enclosures
Small enclosures
2010 CA08103002Z-EN
CI-K
Smallenclosures

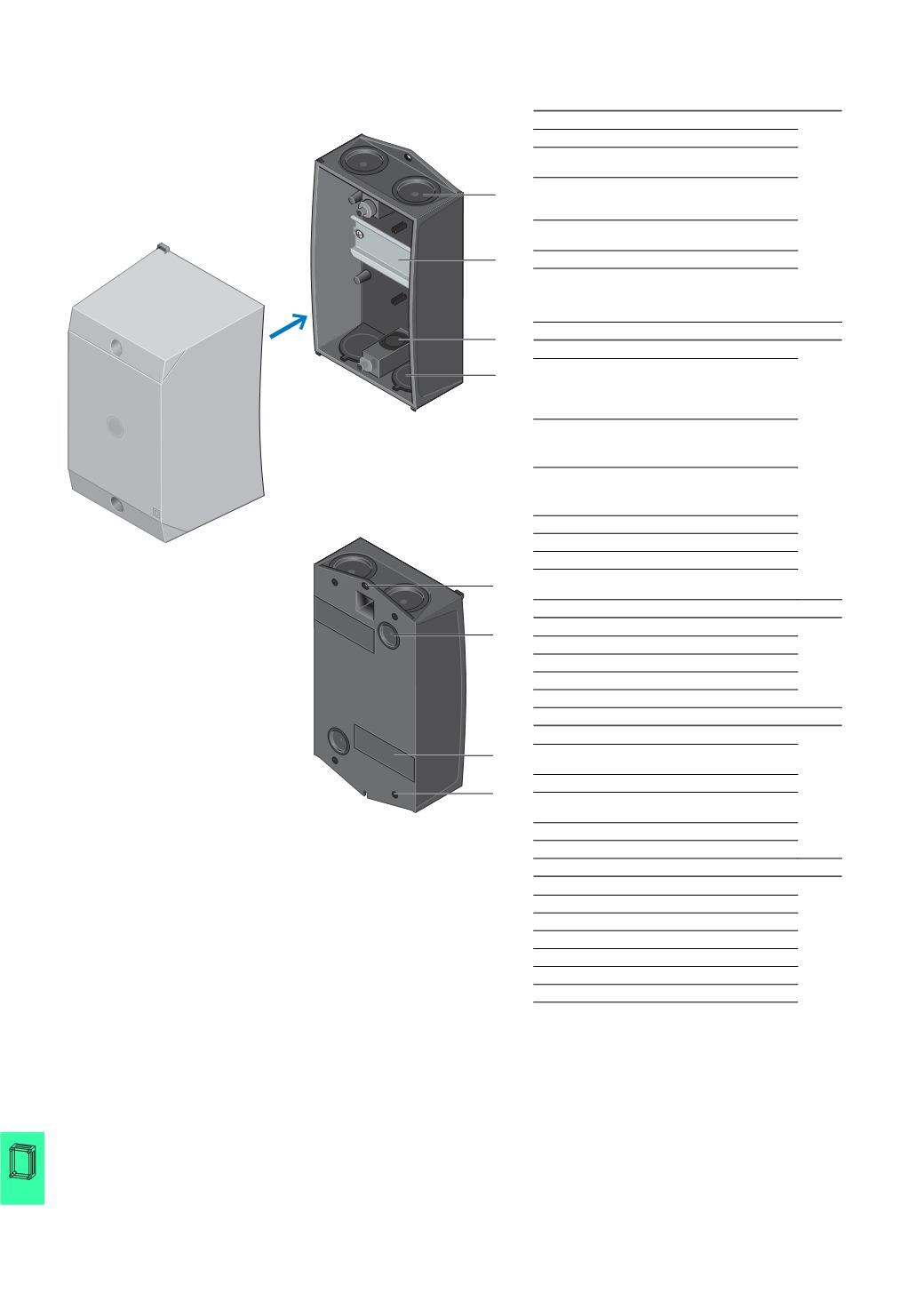

System overview
1
2
1
1
3
1
3
3
• Laser labelling
We can label the cover surface
of the small enclosures CI-K according to your specifications.
Washable and permanent with modern laser inscription.
Please contact:
Technical information/product advice
Tel. +49 (0)228 602-3704
Fax. +49 (0)0228 602-69403
E-mail:
CI-K-Combination-*￫Page 20/94
Approved enclosures for use in UL/CSA￫Page 20/96
• Cutouts in enclosure covers
We can drill cutouts in enclosure covers to your requirements.
Please contact:
Technical information/product advice
Tel. +49 (0)228 602-3704
Fax. +49 (0)0228 602-69403
E-mail:
General
Protection type IP65 (except CI-K2-80-A)
Five basic sizes (floor area of enclosure lower
section)
Two overall depths per base surface
(exception: CI-K1 enclosure depth always 95 mm,
CI-K2-80-... enclosure depth always 80 mm)
Enclosure made of glass-fibre reinforced with
self-extinguishing polycarbonate, halogen free
Captive gasket
Enclosure base RAL 9005 )
Black (matt)
Enclosure cover RAL 7035, light grey (matt)
Metric cable entries 1
CI-K1 and CI-K2:
metric cable entry knockouts with push-through
cable entry diaphragm in the sides, top and bottom
and also in the rear wall
CI-K1H, CI-K2H:
metric cable entry knockouts in the enclosure sides,
top and bottom
CI-K3 to CI-K5:
metric cable entry knockouts in the sides, top and
bottom and also in the rear wall
Control cable entry with CI-K2
Metric cable glands to EN 50 262
Push-through metric cable grommets
￫Page 20/95, ￫Chapter 16: Accessories for
control panel building
Mounting systems for basic enclosures 2
Mounting rails to IEC/EN 60 715
Sheet steel mounting plates
Accessories for mounting systems
￫Page 20/97
Mounting 3
Horizontal and vertical slot apertures for
wall-mounting enclosures
Captive cover screws
Rubber feet on the back plate to compensate for
uneven walls for CI-K1 and CI-K2
External fixing bracket for CI-K4 and CI-K5
￫Page 4/67
Mounting units
Miniature circuit breakers (MCB)
Rotary switches
Switch-disconnectors
Contactors
easy control relays
Timing relay
Pilot devices
