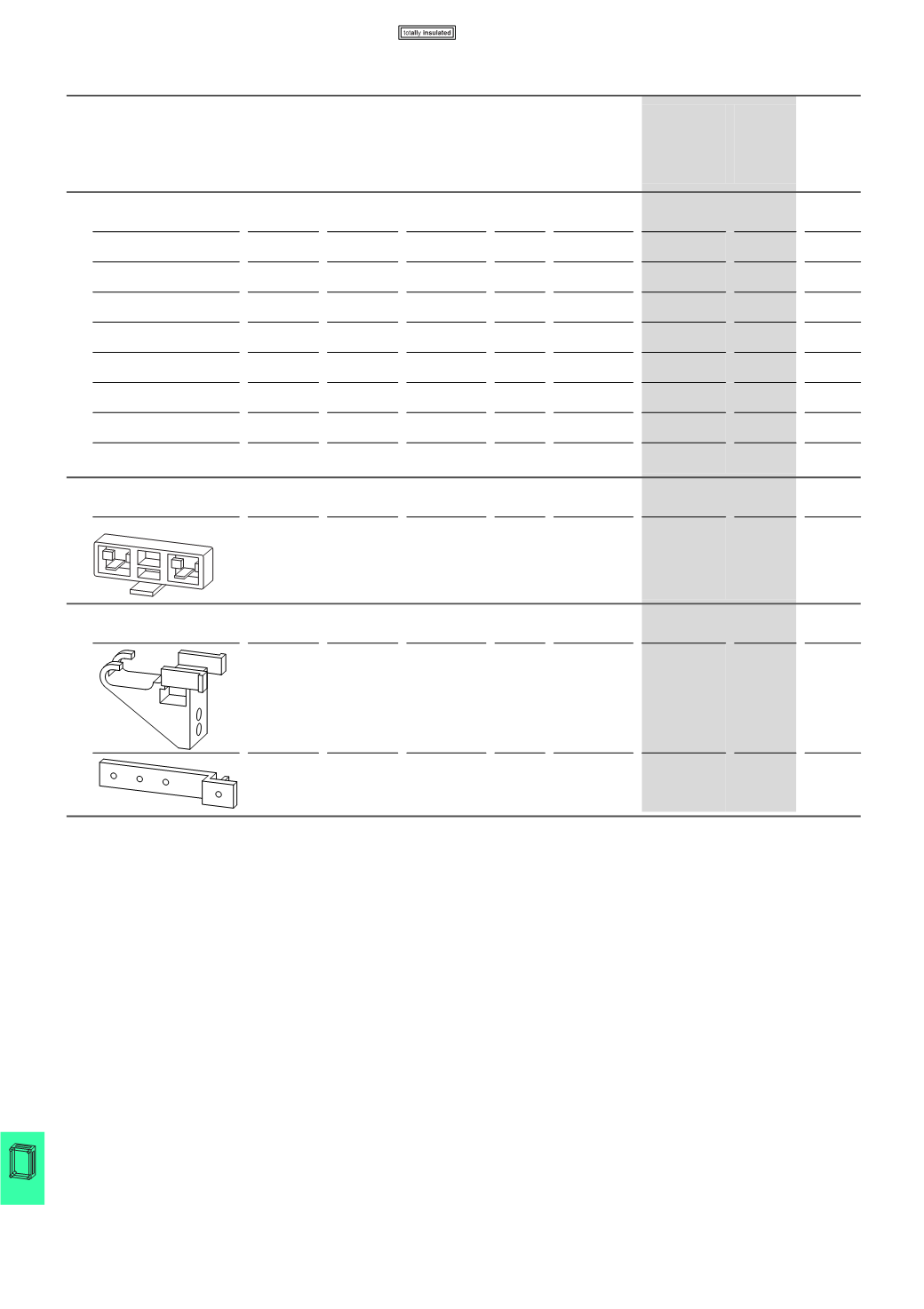

20/44 CI insulated enclosures
Modular busbar system
2010 CA08103002Z-EN
Prepared enclosures
PreparedenclosuresModularbusbarsystem
Rated
operational
current
Supplied in
lengths of
For use with Copper
factor
Dimensions Part no.
Article no.
Price
See price
list
Std. pack
Ie
A mm mm
Busbars
Flat copper busbars
Tinned 160 1500 SH0165/2 12 x 5 CU12X5
034121
10 off
Tinned 160 2250 SH0165/2 12 x 5 CU12X5-2250
005093
10 off
Tinned 250 1500 SH0635/3 20 x 5 CU20X5
044092
10 off
Tinned 250 2250 SH0635/4
SH0632
20 x 5 CU20X5-2250
007466
10 off
Tinned 400 1500 SH0635/3 20 x 10 CU20X10
041719
5 off
Tinned 400 2250 SH0635/4
SH0632
20 x 10 CU20X10-2250
009839
5 off
Untreated – 1500 SH1005/4 30 x 10 CU30X10
051211
1 off
Untreated – 1500 SH1603/4 40 x 10 CU40X10
063076
3 off
PE/N busbar supports
For relocating PE/N bars from the busbar enclosure to the terminal compartment (floor-standing distribution boards)
250
400
630
– – 20 x 5
20 x 10
20 x 15
SH0632
067739
5 off
Support bracket for busbar supports
To secure busbar supports in the first and last enclosures when using busbar links and transport splits
– – SH0635/… – HSH-CI
002320
5 off
– – SH0165/2 to
SH0632
– HSH0632
002321
5 off
Notes
Calculation of additional material cost ￫Page 23/2
Selection of busbar cross-section and usable device ￫Page 20/73
