Eaton Industrial Switchgear - Xboard Optimal switchgear enclosure

44 / 140

20/40 CI insulated enclosures
Busbar enclosures
2010 CA08103002Z-EN
Prepared enclosures
PreparedenclosuresBusbarenclosures
Dimensions Rated
operational
current
Ie
A
Features Copper
factor1)
Part no.
Article no.
Price
See price
list
Std. pack
mm

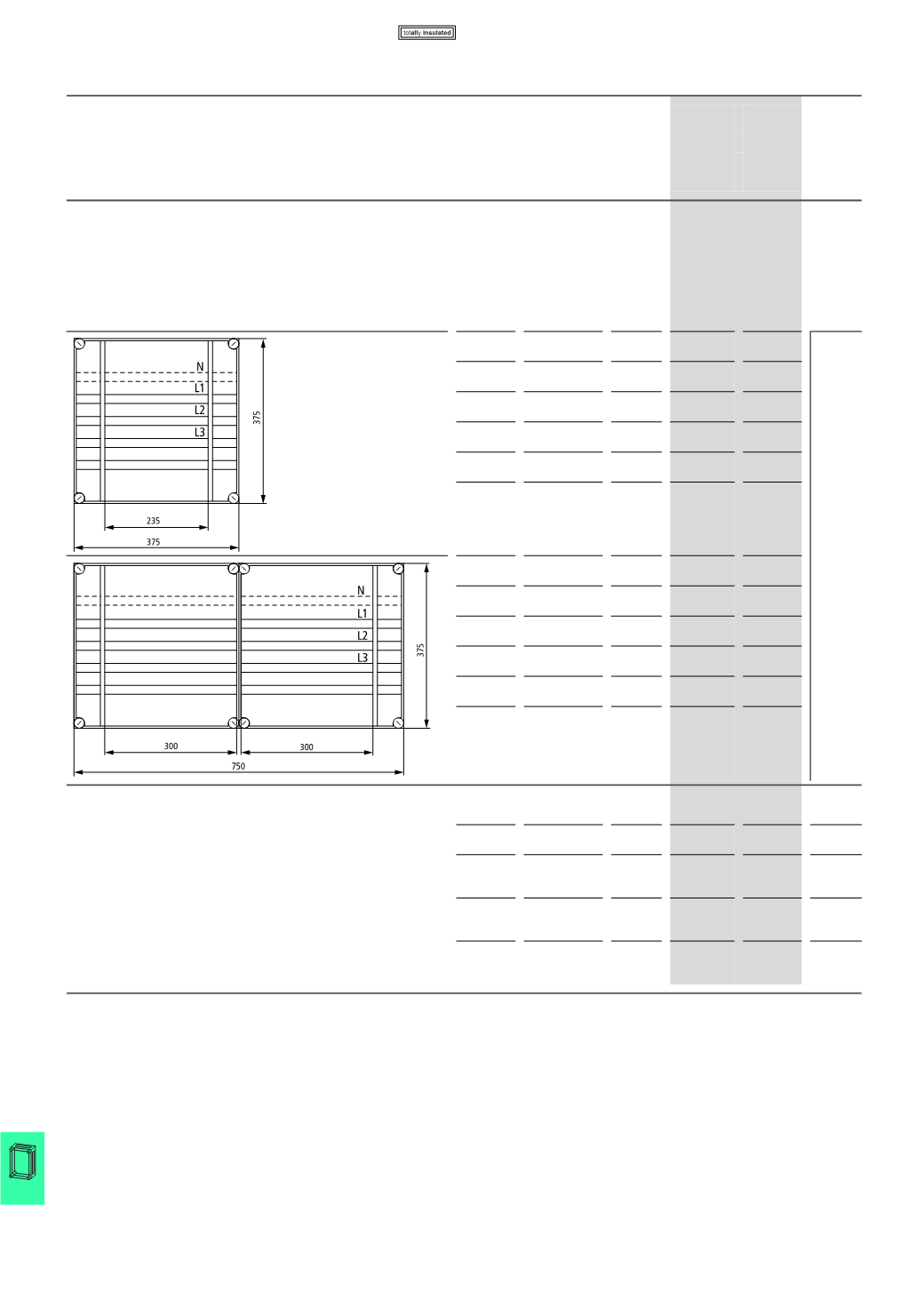

Busbar enclosures
• Protection type IP65
• Transparent cover
• Top and bottom with full area knockouts
• Sides closed, but with full area knockout
• Fixing straps for wall fixing
• Sealable cover fasteners
• Enclosure depth 225 mm
• 50 mm between busbar centres
250 L1, L2, L3, PEN SKA254-I44
034221
1 off
400 L1, L2, L3, PEN SKA404-I44
034220
630 L1, L2, L3, PEN SKA634-I44
090135
250 L1, L2, L3, PE, N SKA255-I44
034209
400 L1, L2, L3, PE, N SKA405-I44
034208
630 L1, L2, L3, PE, N SKA635-I44
090138
250 L1, L2, L3, PEN SKA254-2I44
034207
400 L1, L2, L3, PEN SKA404-2I44
034204
630 L1, L2, L3, PEN SKA634-2I44
090141
250 L1, L2, L3, PE, N SKA255-2I44
034203
400 L1, L2, L3, PE, N SKA405-2I44
034202
630 L1, L2, L3, PE, N SKA635-2I44
090144
Busbar coupling kits
Including sealing and fixing material
250 - 630 L1, L2, L3, PE, N SVS250630-5
002066
1 off
1000 L1, L2, L3 for
copper busbars
2 × 30 × 10 mm
AVS30L
093842
3 off
500 PE, N, PEN for
copper busbar
30 × 10 mm
AVS30PEN
096215
2 off
1600 L1, L2, L3 for
copper busbars
3 × 40 × 10 mm
AVS40
098588
3 off
Notes
1) Calculation of additional material cost ￫Page 23/2
Selection of busbar cross-section and usable device ￫ Page 20/73
PE (PEN)
PE (PEN)
SKA..., SVS..., AVS... HPL20040EN
