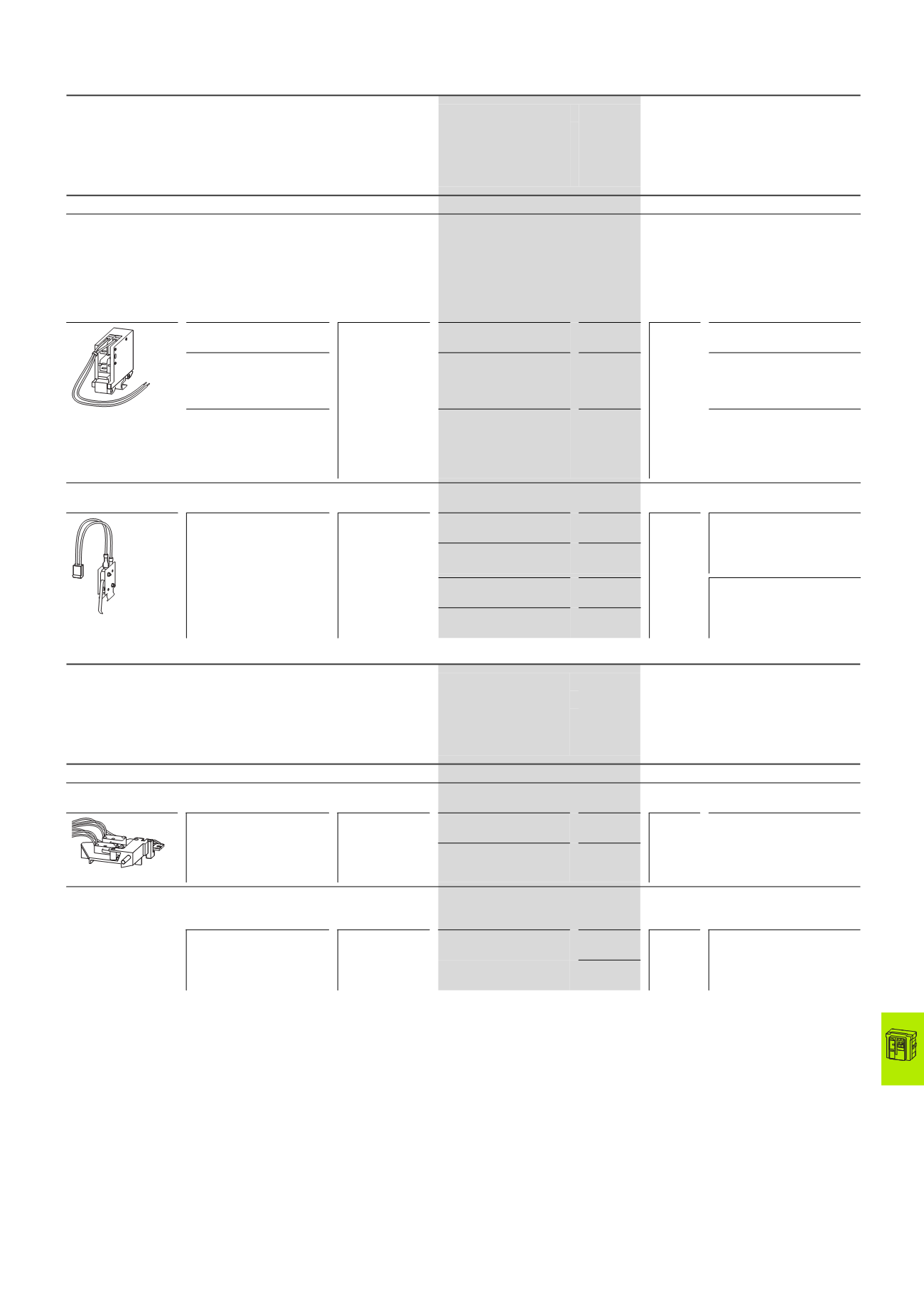

IZM circuit-breakers, IN switch-disconnectors
Accessories for IZM26
2010 CA08103002Z-EN
18/67
Accessories for IZM26
For use with Part no.
Article no.
Part no. suffix “+IZM...”
Article no. for ordering with
basic device
Price
See price
list
Std. pack Notes
Auxiliary contacts
Standard auxiliary switch for On-Off signaling
2 NC contacts/N/O contacts are already contained in the basic device.
Maximum for IZM20, IN20: 4 N/O or NC contacts (corresponds with an
additional AS22).
Maximum, for IZM32, IZM40, IZM63: 6 N/O or NC contacts (corresponds with
an additional AS44).
6 N/O or NC contacts are possible only when no second shunt release is
installed.
Additionally 2 NC contact/
NO contact
IZM20, 32, 40, 63...
IN20, 32, 40, 63...
+IZM-AS22
122758
1 off –
Additionally 4 NC contacts/
N/O contacts
+IZM-AS44
122759
Cannot be combined with a
second shunt release;
can not be combined with
IZM20, IN20.
Additionally 2 NC contact/
N/O contact
IZM-AS22
122958
If ordered separately a second-
ary terminal block IZM‐SEC‐…
is necessary for connection.
Order separately if required.
Terminal assignment page 77
Latch check switch
Latch check switch with one changeover contact.
– IZM20, 32, 40, 63...
IN20, 32, 40, 63...
IZM-LCS-SR
122974
1 off for internal wiring
with closing release
+IZM-LCS-SR
122760
IZM-LCS
122959
for external keypad Indication
+IZM-LCS
122761
Rated control voltage For use with Part no.
Article no.
Part no. suffix “+IZM...”
Article no. for ordering with
basic device
Price
See price
list
Std. pack Notes
Us
V
Trip indication and reset options
Trip-indicating auxiliary switch (OTS)
Two changeover contacts
– IZM20, 32, 40, 63... IZM-OTS
122960
1 off If ordered separately a second-
ary terminal block IZM‐SEC‐…
is necessary for connection.
Order separately if required.
Terminal assignment page 77
+IZM-OTS
122762
Automatic reset
The circuit-breaker is immediately ready to close again. Not fitted with
mechanical trip indicator (red pin). Can not be combined with remote reset.
– IZM20, 32, 40, 63... IZM-RA
122964
1 off –
+IZM-RA
122766
IZM-AS..., IZM-LCS..., IZM-OTS..., IZM-RR... HPL18067EN
