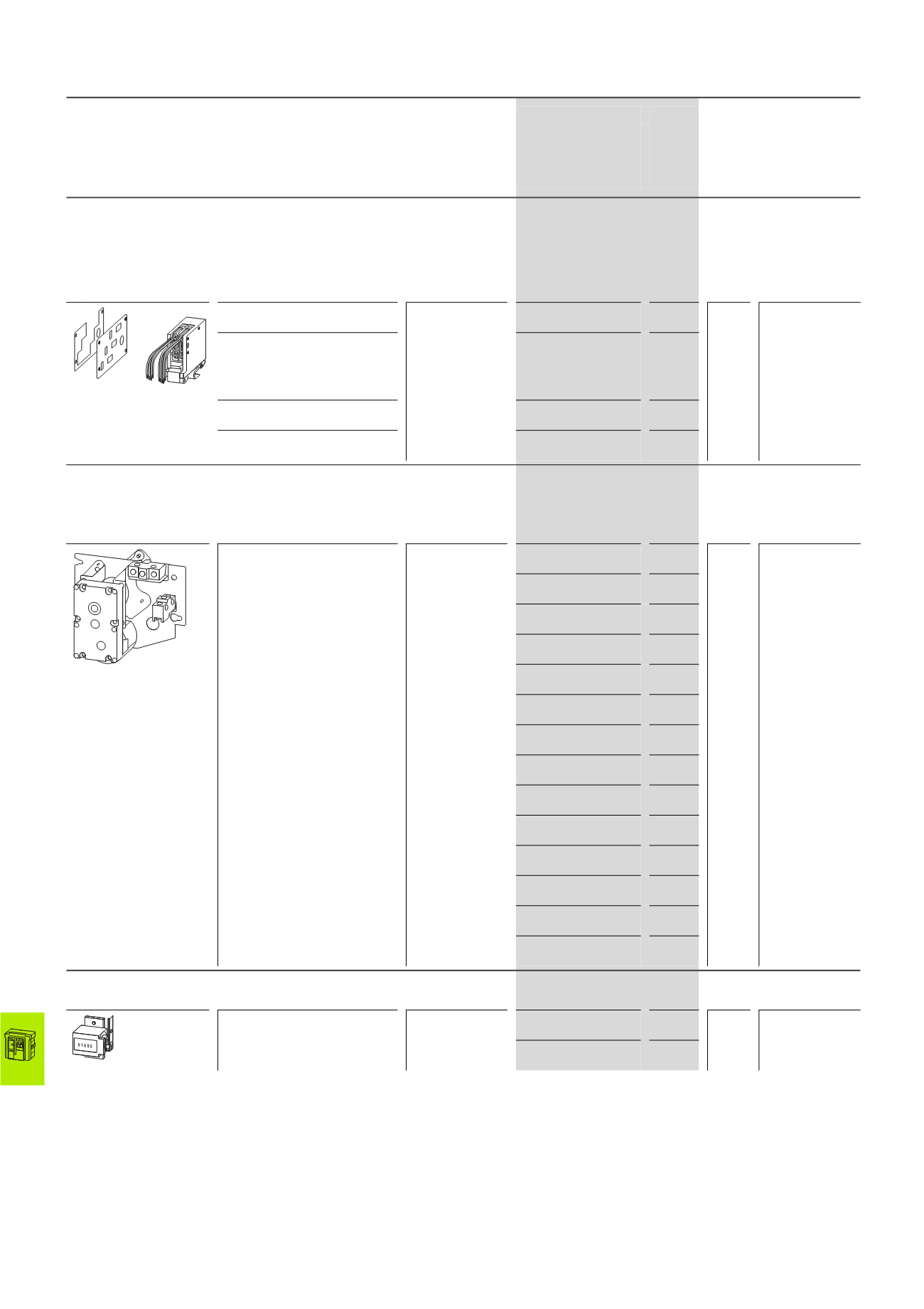

18/64 IZM circuit-breakers, IN switch-disconnectors
Accessories for IZM26
2010 CA08103002Z-EN
www.eaton.comFor use with
Part no.
Article no.
Part no. suffix “+IZM...”
Article no. for ordering
with basic device
Price
Seeprice
list
Std.
pack
Notes
Position signalling switches
One module each with 4 changeover contacts is possible for indication of each position
(extended, Test, retracted).
Only one mounting plate is required per withdrawable unit.
Each additional auxiliary contact (up to 3) requires 2 secondary terminal blocks IZM-SEC...;
alternatively it can be wired directly to external terminals.
If a shutter is used, mounting is possible on the right side only.
Four changeover contacts:
One module without mounting plate
IZM20, 32, 40, 63...W
IN20, 32, 40, 63...W
IZM-CS4
122879
1 off
–
Four changeover contacts:
One module with mounting plate
IZM-CS4MB
122880
Eight changeover contacts:
Two modules with mounting plate
IZM-CS8MB
122881
Twelve changeover contacts:
Three modules with mounting plate
IZM-CS12MB
122882
Motor drive
The motor operator electrically tensions the spring-operated stored energy mechanism. For
electrical remote On and Off switching, a closing release and a voltage release are required.
A signaling switch labeled “Spring-operated stored energy mechanism tensioned” is included
as standard.
–
IZM20, 32, 40, 63...
IN20, 32, 40, 63...
IZM-M24DC
122927
1 off
Iforderedseparately
a secondary
terminal block
IZM‐SEC‐… is
necessary for
connection. Order
separately if
required.For
terminalassignment,
see page 77
+IZM-M24DC
122729
IZM-M48DC
122928
+IZM-M48DC
122730
IZM-M60DC
123093
+IZM-M60DC
123079
IZM-M110DC
122929
+IZM-M110DC
122731
IZM-M220DC
122930
+IZM-M220DC
122732
IZM-M110AC
122931
+IZM-M110AC
122733
IZM-M230AC
122932
+IZM-M230AC
122734
Switching cycle counter
Counts the number of On-Off operations. Can also be used without motor operator.
–
IZM20, 32, 40, 63...
IN20, 32, 40, 63...
IZM-OC
122933
1 off
–
+IZM-OC
122735
IZM-CS..., IZM-M..., IZM-OC
