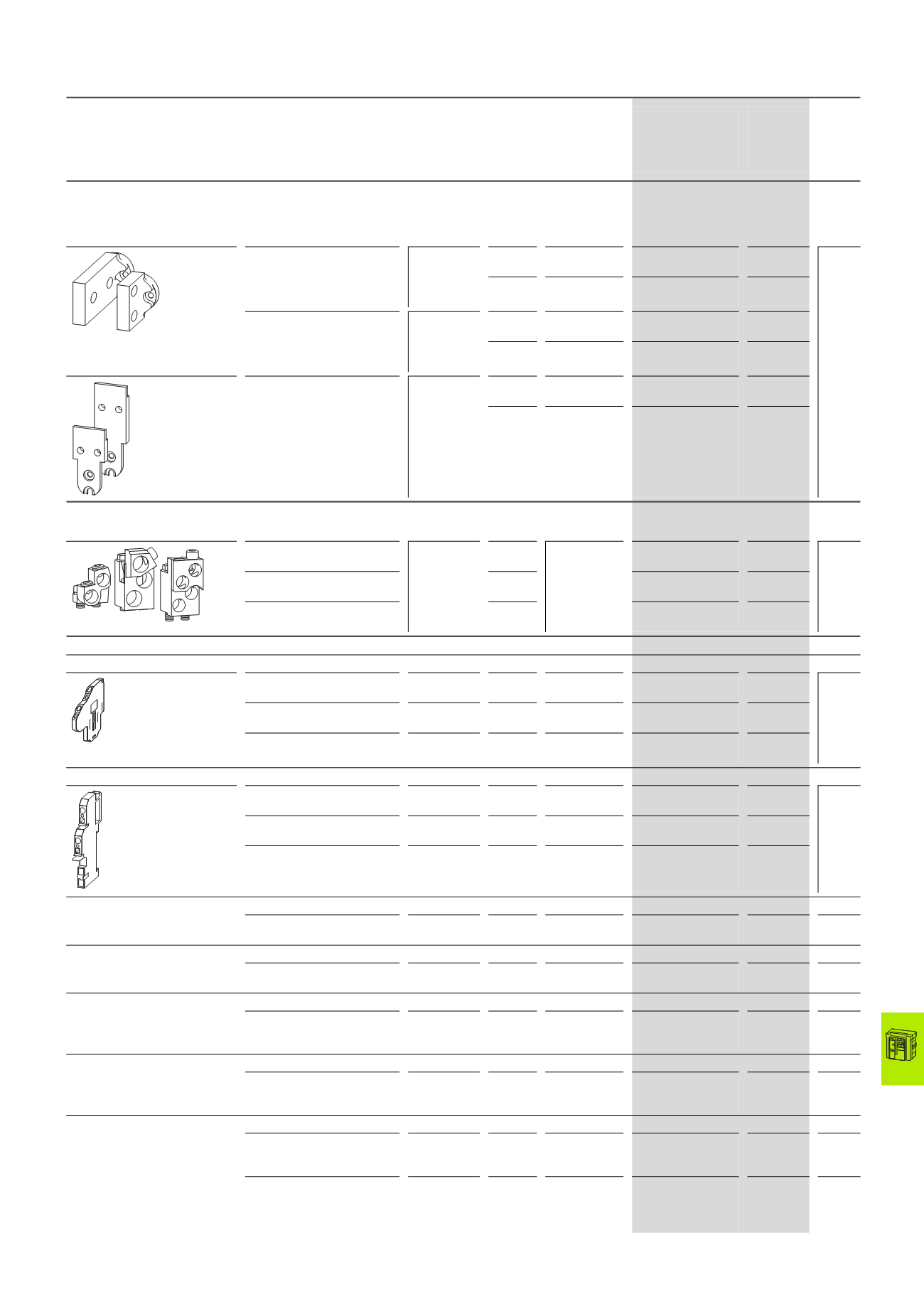

IZM circuit-breakers, IN switch-disconnectors
Accessories for IZMX16
2010 CA08103002Z-EN
www.eaton.com18/19
Rated opera-
tional current
Pole
For use with
Part no.
Article no.
Price
See price
list
Std.
pack
I
n
A
Main terminal kits
Main terminals are not supplied as standard with the basic devices and cassettes.
This universal adapter can be used both as horizontal and as vertical connector.
Each set contains the connections for top and bottom. 3 pole = 6 off; 4 pole = 8 off
Rear universal connection for
fixed/withdrawable mounting
800 - 1600
3
IZMX16…3-W
INX16…3-W
IZMX-THV163
124181
1 off
4
IZMX16…4-W
INX16…4-W
IZMX-THV164
124177
Rearuniversalconnection(long)
for fixed/withdrawable
mounting
800 - 1600
3
IZMX16…3-W
INX16…3-W
IZMX-THVL163
124233
4
IZMX16…4-W
INX16…4-W
IZMX-THVL164
124234
Front universal connection
(long) for withdrawable
mounting
800 - 1600
3
IZMX16…3-W
INX16...3-W
IZMX-TFL163
124183
4
IZMX16…4-W
INX16...4-W
IZMX-TFL164
124179
Tunnel terminals
For use only in combination with front universal connection IZMX-TFL...
For connecting cables with
50-240 mm²
800 - 1600
–
IZMX16…3-
INX16…3-
IZMX-TCA16-2
124230
1 off
For connecting cables with
95-185 mm²
–
IZMX-TCA16-3
124231
For connecting cables with
120-240 mm²
–
IZMX-TCA16-4
124232
General accessories
Control circuit terminal blocks for fixed mounting
Control circuit terminals,
8 blocks
–
–
IZMX16…F
INX16…F
IZMX-SEC16-TB8-F
124166
1 off
Control circuit terminals,
20 blocks
–
–
IZMX16…F
INX16…F
IZMX-SEC16-TB20-F
124167
Control circuit terminals,
30 blocks
–
–
IZMX16…F
INX16…F
IZMX-SEC16-TB30-F
124168
Control circuit terminal blocks for withdrawable blocks
Control circuit terminals,
8 blocks
–
–
IZMX16…W
INX16…W
IZMX-SEC16-TB8-W
124162
1 off
Control circuit terminals,
20 blocks
–
–
IZMX16…W
INX16…W
IZMX-SEC16-TB20-W
124163
Control circuit terminals,
30 blocks
–
–
IZMX16…W
INX16…W
IZMX-SEC16-TB30-W
124165
Protective cover, IP55
The protective cover allows a
higher protection type.
–
–
IZMX16…
INX16…
IZMX-DC 16
124171
1 off
Blank cover for door cutout, IP41
Cover for a door cutout
(reserved compartment)
–
–
IZMX16…
INX16…
IZMX-BC16
124172
1 off
Replacement coding, basic device to cassette
This is a spare part. The coding
is supplied as standard with
withdrawable switches.
–
–
IZMX16…W
INX16…W
IZMX-CRB16
124173
1 off
Replacement hand lever
This is a spare part. The hand
lever is supplied as standard
with withdrawable switches.
–
–
IZMX16…W
INX16…W
IZMX-LT16
124174
1 off
Spare door seal, IP41
This is a spare part. The door
sealing frame is supplied as
standard with fixed mounting.
–
–
IZMX16…F
INX16…F
IZMX16-DEG-F
124335
1 off
This is a spare part. The door
sealing frame is supplied as
standard with withdrawable
units.
–
–
IZMX16…W
INX16…W
IZMX16-DEG-W
124390
1 off
IZMX-THV..., IZMX-SEC16-TB..., IZMX-DEG16, IZMX-DC16
HPL18019EN
