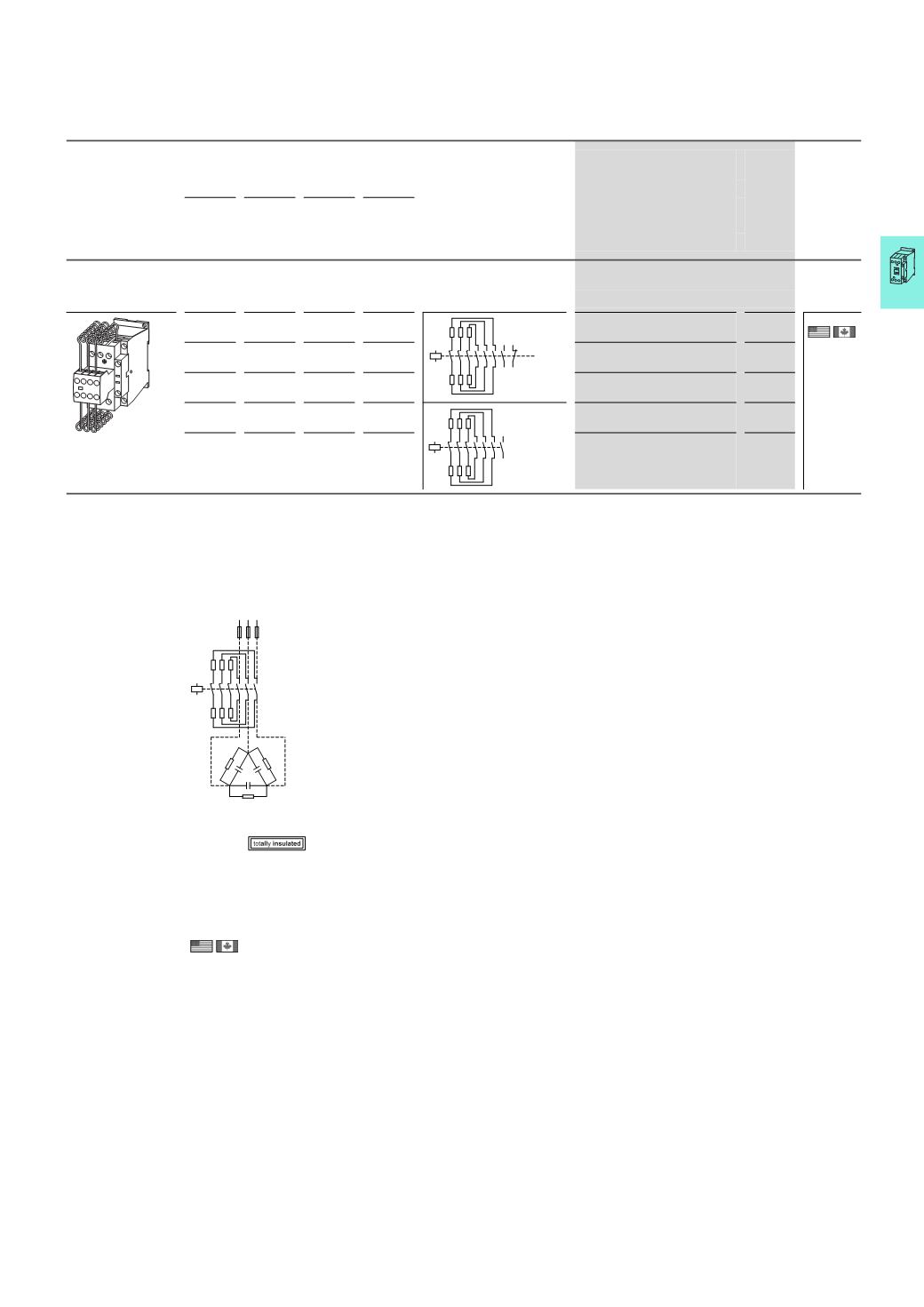

Contactors
Contactor for capacitors
2010 CA08103002Z-EN
5/43
Contactor forcapacitors
Ordering
Three-phase capacitors
50 – 60 Hz
Circuit symbol Part no.
Article no.
Price
See price
list
Std. pack
Open
230 V 400 V 525 V 690 V
kvar kvar kvar kvar
With series resistors
Basic Units
7.5 12.5 16.7 20 DILK12-11(230V50HZ,240V60HZ)
293988
1 Off
11 20 25 33.3 DILK20-11(230V50HZ,240V60HZ)
294010
15 25 33.3 40 DILK25-11(230V50HZ,240V60HZ)
294032
20 33.3 40 55 DILK33-10(230V50HZ,240V60HZ)
294054
25 50 65 85 DILK50-10(230V50HZ,240V60HZ)
294076
Notes Weld-resistant for capacitors with inrush current peaks up to 180 x I N
With group compensation multi-stage capacitor banks are connected to the mains as required. This can cause, transient currents of up to 180 x I e
to flow between the capacitors.
The capacitors are pre-charged via the early-make auxiliary contacts and the fitted wire resistors, thereby reducing the inrush current. The main
contacts then close after a time lag and carry the continuous current.
The contactors for capacitors are weld-resistant with inrush current peaks up to 180 x l e due to their special contacts.
DILK… cannot be combined with other auxiliary contacts.
For the switching of reactive-power compensation equipment please see Engineering notes on power factor correction￫page 5/35.
Information relevant for export to North America
Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No. E29096
UL CCN NLDX
CSA File No. 012528
CSA Class No. 3211-04
NA Certification UL Listed, CSA certified
See also Further approvals￫page 5/70
1 3 5
2 4 6
13 21
14 22
A1
A2
1 3 5
2 4 6
13
14
A1
A2
R11 R11
R11
C1
L1 L2 L3
1 3 5
642
A2
A1
Accessories Page
Enclosures
Accessories ￫5/56
Further actuating
voltages ￫5/80
DILK HPL05043EN
