Frequency inverters
Interface cards
2010 CA08103002Z-EN
10/15
XMX-NET-CO-A, XMX-PD-A, XMX-PS-A
Interfacecards
Type overview
Application
XMX-NET-CO-Aallowsthe connection
as slave of the M-Max™ and H-Max™
frequency inverters to the standard
CANopen field bus. They are con-
nected to the field bus through 5-pole
screw terminals.
Features
On the H-Max™ frequency inverters,
the XMX-NET-CO-A interface card is
slotted into the housing.
On M-Max™ frequency inverters,
mounting frame MMX-NET-XA is
required. Here the interface card is
connected via a plug-in connector on
the right side of the frequency inverter.
Technical data:
• Communications protocol:
CiA DS-301,
• CiA-DSP-402
• Data transfer: CAN (ISO 11898)
• Transfer rate (adjustable): 10 Kbits/s
up to 1 Mbit/s
• Maximum cable length, depending
on transfer rate (without amplifier):
• 30 m up to 2.5 km
• Addressing (adjustable): 1 - 127
• Status indication via LEDs
Documentation
Instructional leaflet AWA8240-2426
(included as standard with each card)
Manual AWB8240-1632
Documentation availablefordownload
at
Type overview
Application
XMX-NET-DP-... allows the connec-
tion as slave of the M-Max™ and
H-Max™ frequency inverters to the
standard PROFIBUS-DP field bus.
The XMX-NET-PS-A is connected to
the field bus through 5-pole plug-in
screw terminals and XMX-NET-PD-A
through a 9-pin Sub-D connector.
Features
On the H-Max™ frequency inverters,
the XMX-NET-DP-... interface card is
slotted into the housing.
On M-Max™ frequency inverters,
mounting frame MMX-NET-XA is
required. Here the interface card is
connected via a plug-in connector on
the right side of the frequency inverter.
Technical data:
• Communication protocol: Profidrive
(PROFIBUS profile for variable-
speed drives)
• Data transfer: RS485, half-duplex
• PPO type: 1, 2, 3, 4, 5
• Transfer rate (adjustable): 9.6 Kbits/s
up to 12 Mbit/s
• Maximum cable length, depending
on transfer rate (without amplifier):
100 m up to 1.2 km
• Addressing (adjustable): 2 - 126
• Status indication via LEDs
Documentation
Instructional leaflet AWA8240-2427
(included as standard with each card)
Documentation availablefordownload
at

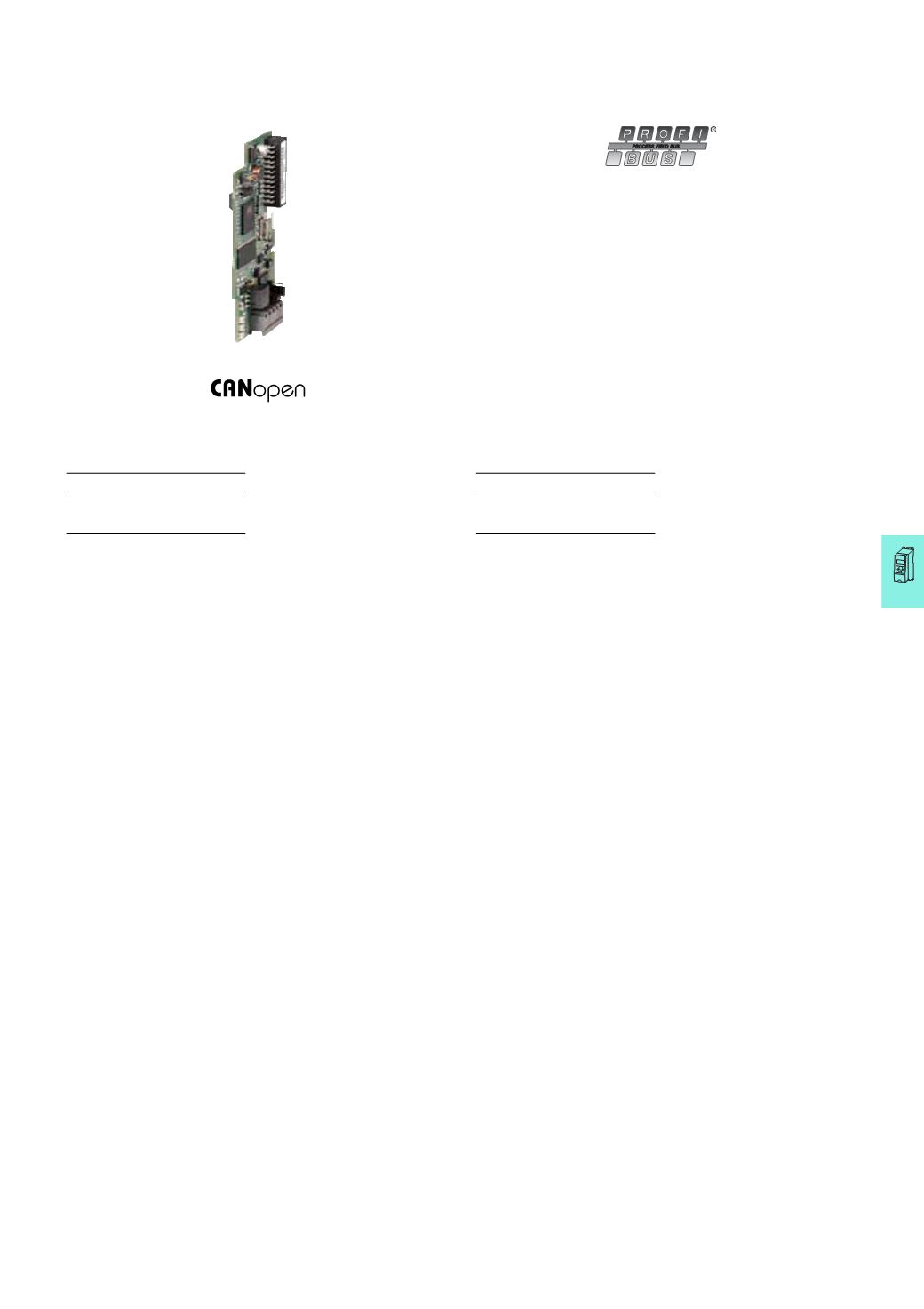

XMX-NET-CO-A
CANopen connection for the
frequency inverters of the
M-Max™ and H-Max™ series
XMX-NET-PD-A, XMX-NET-PS-A
PROFIBUS-DP connection for the
frequency inverters of the
M-Max™ and H-Max™ series
