10/14 Frequency inverters
Interface cards
2010 CA08103002Z-EN
Interfacecards
MMX-COM-PC, XMX-NET-DN-A
Type overview
Application
MMX-COM-PC allows communication
and data transfer between a fre-
quency inverter and a PC.
The parameters can also be coplied
directly between frequency inverters
of the same device series without a PC
connection. If a battery (9 V block) is
fitted, mains power supply is also not
required for this.
Features
The MMX-COM-PC communication
module is plugged in at the front of
M-Max™ frequency inverters.
The connection cable included as
standard (length: 3.2 m) with an
isolated interface converter allows
connection to a PC with a USB port.
This communication module can help
increase data security and cut
commissioning and maintenance
times:
• Online parameterization and
monitoring display (oscilloscope)
on a PC; on a connected printer
parameter lists and monitor displays
can also be printed out
• Upload and download of all
parameters
• Parameter backup and comparison
• Parameter copy function (e.g. for
series machines or for device
replacement)
Documentation
Instructional leaflet AWA8240-2428
(included as standard with each card)
Documentation availablefordownload
at
Type overview
Application
XMX-NET-DN-A allows the connec-
tion as slave of the M-Max™ and
H-Max™ frequency inverters to the
standard DeviceNet field bus.
The fieldbus connection is imple-
mented via pluggable 5-pole screw
terminals with the XMX-NET-PS-A and
a 9-pole SUB-D connector with the
XMX-NET-PD-A.
Features
On the H-Max™ frequency inverters,
interface card XMX-NET-DN-A is
slotted into the housing.
On M-Max™ frequency inverters,
mounting frame MMX-NET-XA is
required. Here the interface card is
connected via a plug-in connector on
the right side of the frequency inverter.
Technical data:
• Communication protocol: CAN
• Data transfer:
ODVA 2.0 compliant
• Transfer rate (adjustable):
125, 250 and 500 Kbit/s
• Maximum cable length, depending
on transfer rate: 125 Kbits/s → 500 m,
250 Kbits/s → 250 m, 500 Kbit/s
→ 100 m
• Network supply: 11 to 25 V DC, 28 mA
(typical), peak inrush current 125 mA
• Addressing (adjustable): to 64 (nodes)
• Status indication via LEDs
Documentation
Documentation availablefordownload
at

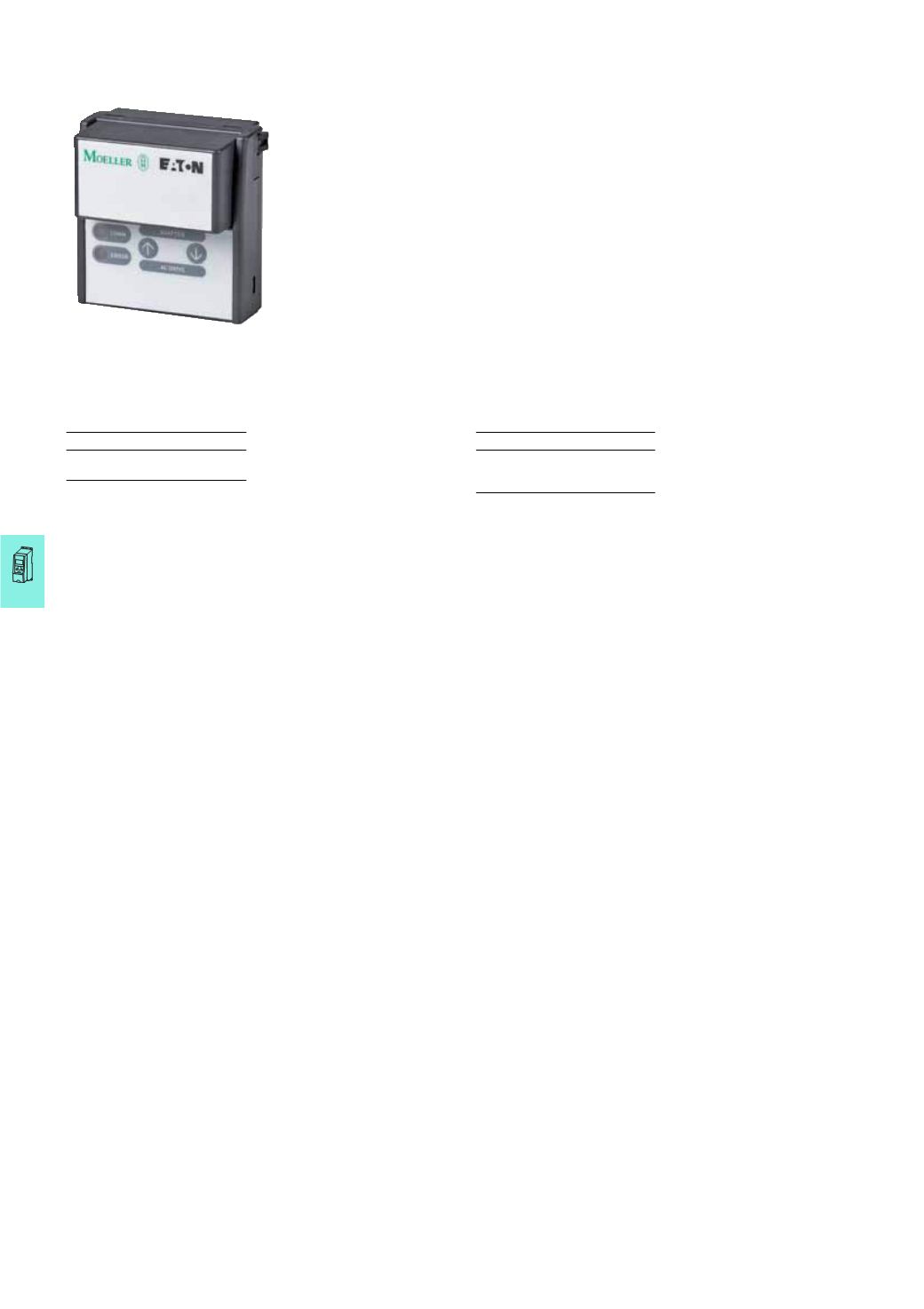

MMX-COM-PC
PC connection for the frequency
inverters of M-Max™ series
XMX-NET-DN-A
DeviceNet fieldbus connection for
the frequency inverters of the
M-Max™ and H-Max™ series
