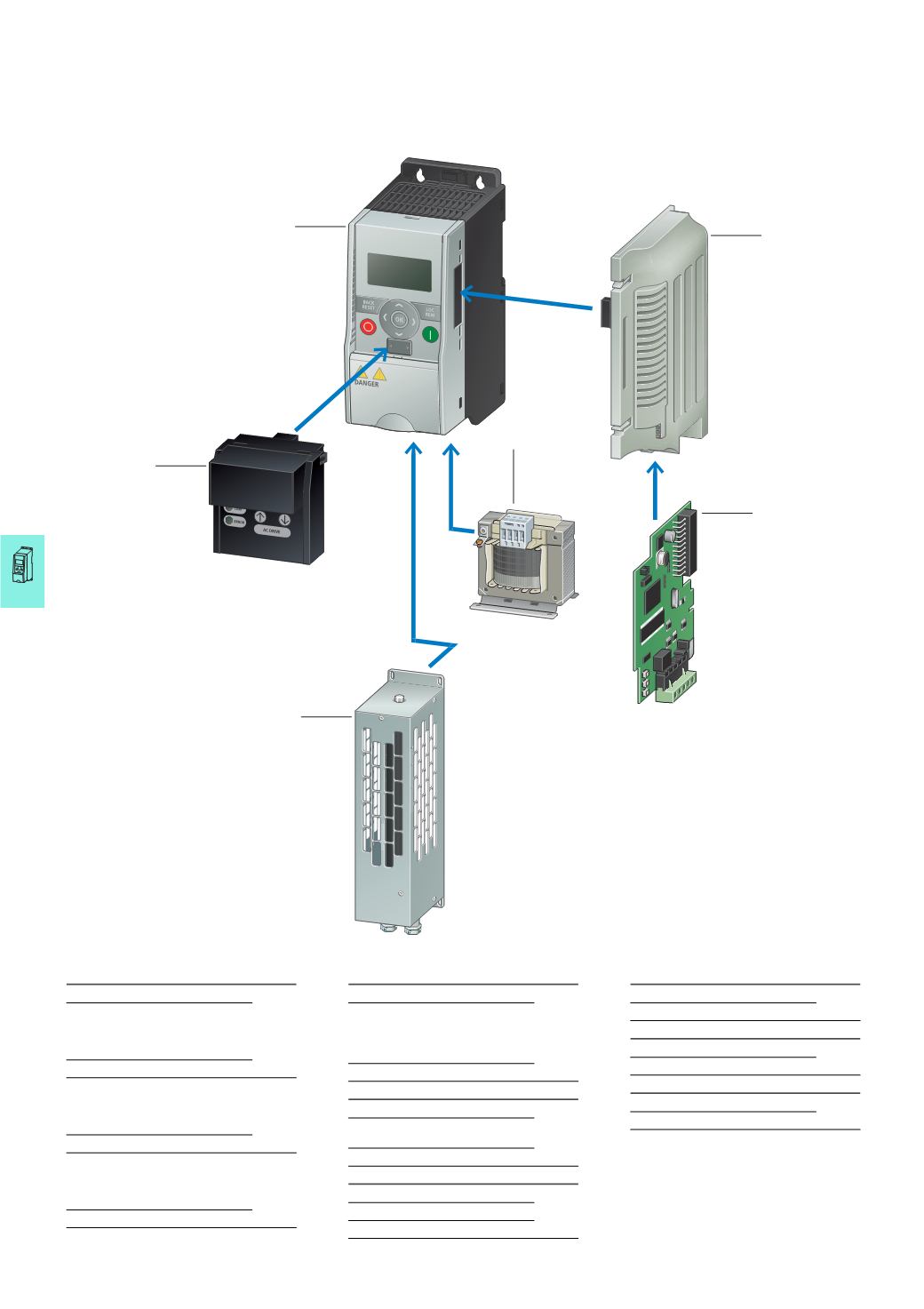

M-Max™
M-Max™System overview
5
6
3
2
1
4
Basic device
Frequency inverters 1
MMX12…
Mains: single-phase, 230/240 V
Assigned motor rating
from 0.25 up to 2.2 kW (230 V)
￫Page 10/5
MMX32…
Mains: 3-phase, 230/240 V
Assigned motor rating
from 0.25 up to 2.2 kW (230 V)
￫Page 10/6
MMX34…
Mains: 3-phase, 400/480 V
Assigned motor rating
from 0.37 up to 7.5 kW (400 V)
￫Page 10/7
System accessories
Communication module 3
Versions
• CANopen fieldbus connection
• PROFIBUS DP fieldbus connection
• DeviceNet fieldbus connection
￫Page 10/18
PC interface card 6
MMX-COM-PC communication
module
￫Page 10/18
Mounting frame 2
For fieldbus connection
￫Page 10/18
Accessories
Mains chokes 4
￫Page 10/20
Motor chokes 4
￫Page 10/21
Braking resistor 5
￫Page 10/17
