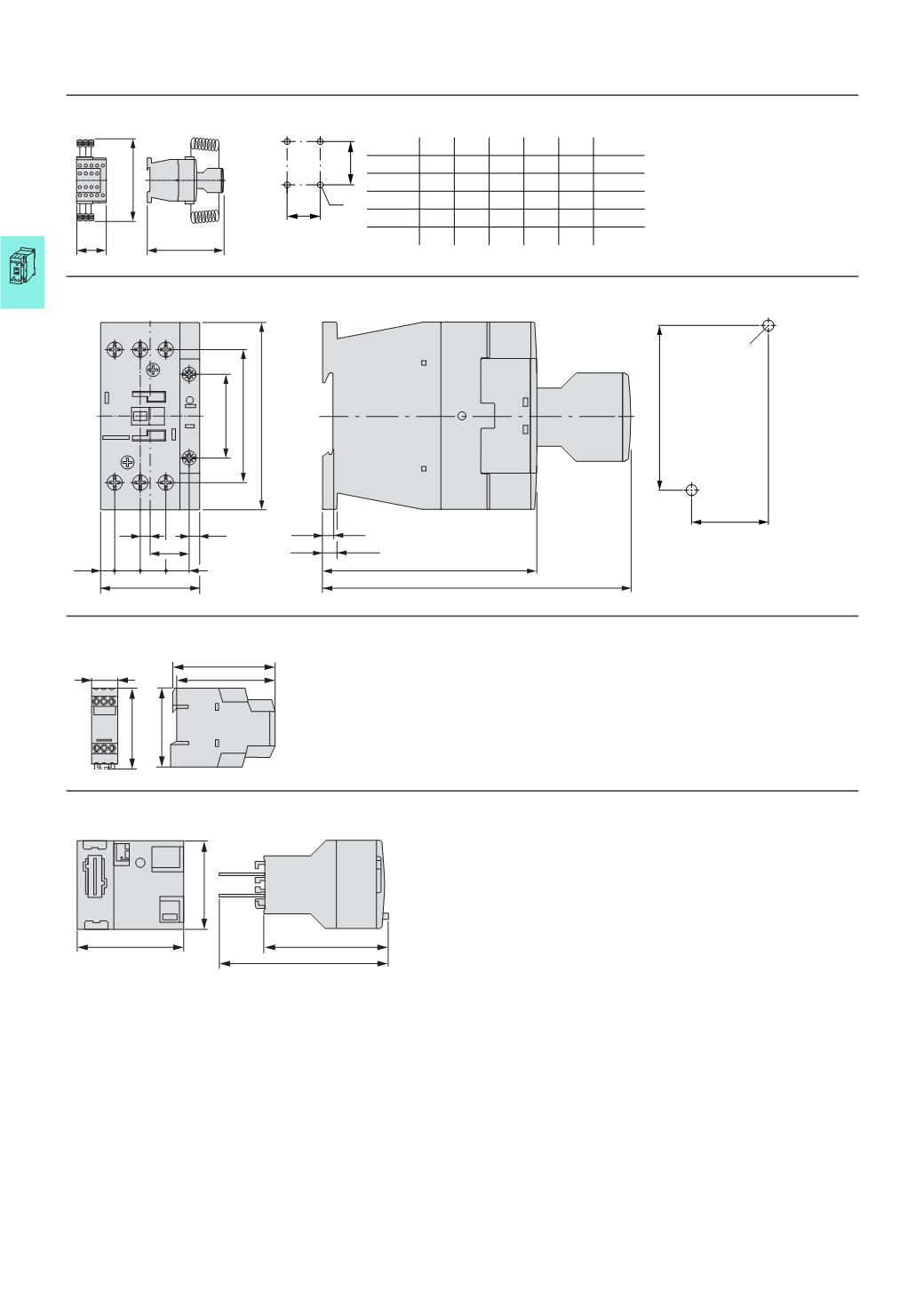

5/140 Contactors
Capacitor contactors, lamp contactors, contactor monitoring devices, SWD contactor modules
2010 CA08103002Z-EN
Capacitorcontactors, lampcontactors,contactormonitoringdevices,SWDcontactormodulesContactor for capacitors
DILK…
Illumination contactors
DILL…
Clearance at side to grounded parts: 6 mm
Contactor monitoring devices
CMD(...)
SWD contactor modules
DIL-SWD-32-...
b
c a
a1
b1
d
Part no. a b c a1 b1 d
DILK12 45 135 138 35 75 2 x M4
DILK20 45 135 138 35 75 2 x M4
DILK25 45 135 138 35 75 2 x M4
DILK33 55 190 147 45 105 2 x M4
DILK50 55 190 147 45 105 2 x M4
11.6 11.6
4.5
17.7
10.6 (6.4)
38 60.4 85
45
4.8
138
6.5
97.4
4.5
35
2 x M4
75
103
98
78
22.5
82.5
38
45 53.1
72.3
DILK..., DILL..., CMD, DIL-SWD
