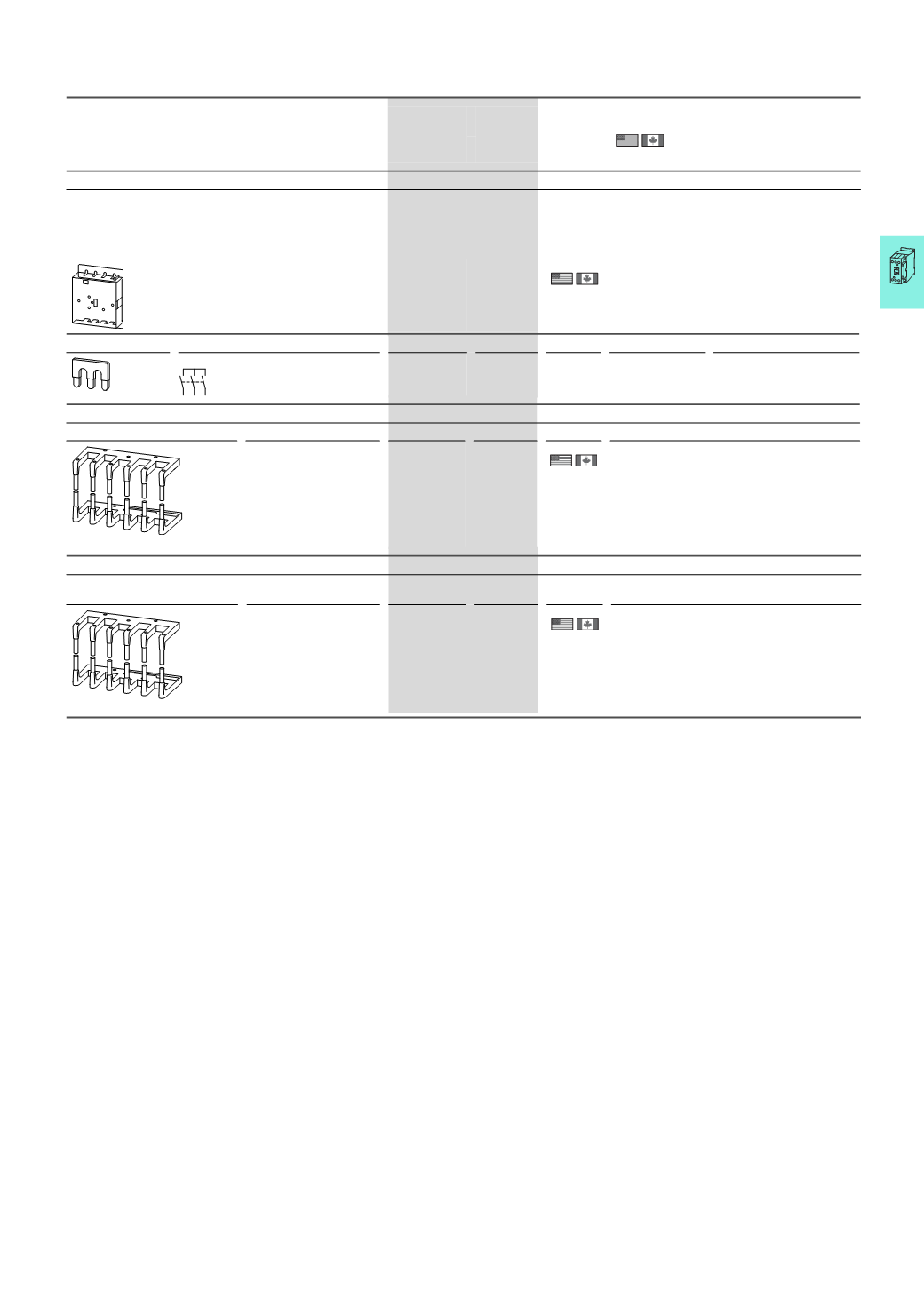

Mini contactor relays
Accessories
2010 CA08103002Z-EN
5/9
Accessories
Contact
sequence
For use with Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America
Sealable shrouds
Transparent
Snap-fitting on contactor.
Can be used with open installation or on service distribution board.
Protection type: IP40 front
Can be drilled to accommodate timing relay setting dials.
DILE…
DILET…
HDILE
010482
1 off UL/CSA certification not required
Start-point bridge
DILEEM
DILEM12
DILEM
S1DILEM 1)
220218
20 off
Reversing starter wiring kit
Main current wiring for reversing combinations
DILEEM (+MVDILEM)
DILEM12 (+MVDILEM)
DILEM (+MVDILEM)
MVS-WB-EM2)
220209
1 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV7
CSA File No. 012528
CSA Class No. 3211-06
NA Certification UL Listed, CSA certified
Star-delta wiring kit
Main current wiring for star-delta combination incl. star-point
bridge
DILE(E)M (+MVDILEM)
DILE(E)M12 (+MVDILEM)
DILE(E)M star contactor
MVS-SB-EM3)
220213
1 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E36332
UL CCN NLRV7
CSA File No. 012528
CSA Class No. 3211-06
NA Certification UL Listed, CSA certified
Notes 1) Protected against accidental contact in accordance with VDE 0106 Part 100
2) The following control cables are integrated in addition to electrical interlock:
• Q11: A1 -Q12: 21
• Q11: 21 - Q12: A1
• Q11: A2 - Q12: A2
For use with overload relay separate mounting.
3) The following control cables are integrated in addition to electrical interlock:
• Q13: A1 -Q15: 21
• Q13: 21 - Q15: A1
• Q13: A2 - Q15: A2
For use with overload relay separate mounting.
HDILE, ...DILEM, MVS HPL05009EN
