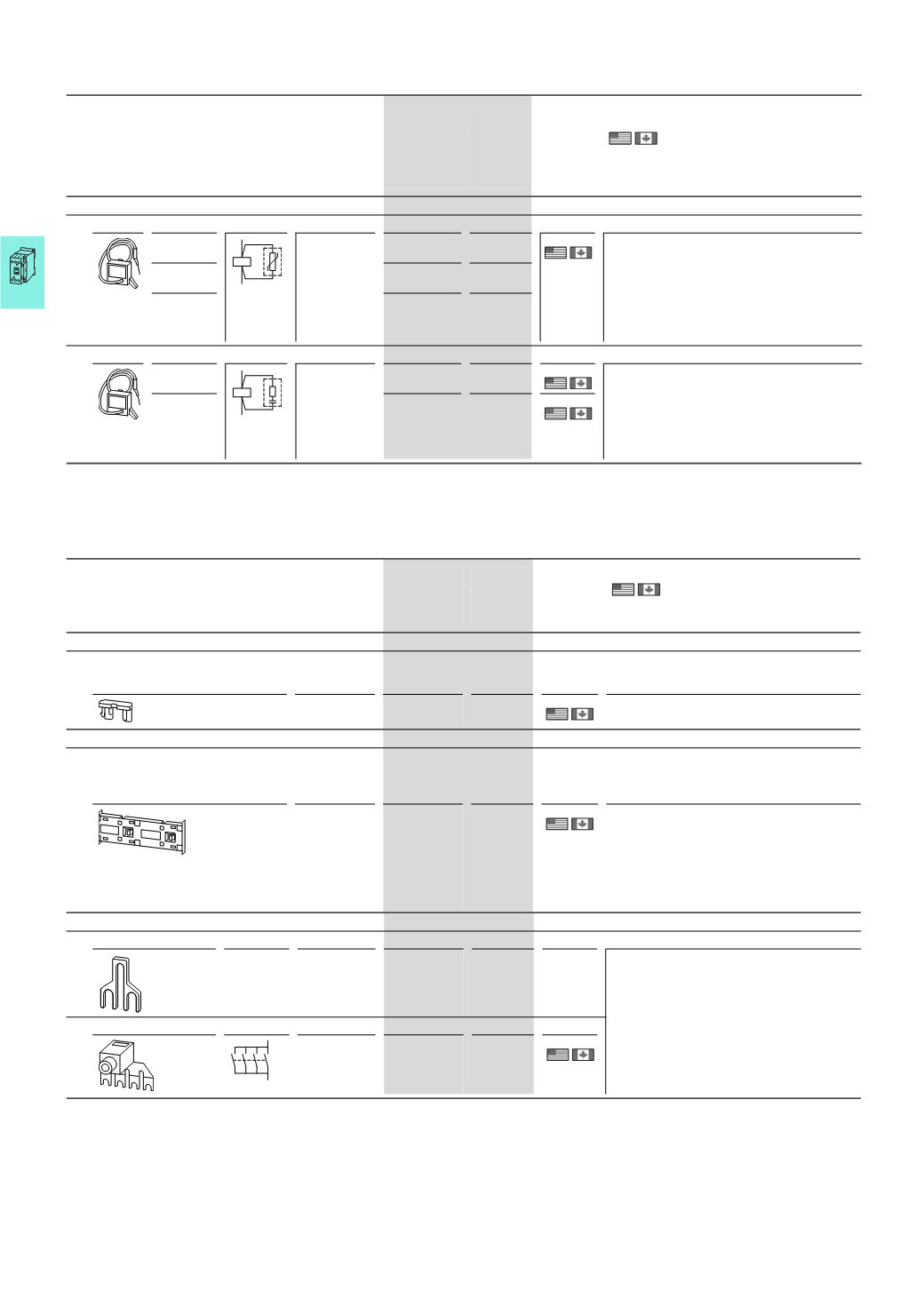

Eaton Industrial Switchgear - xStart switching, protections and actuating motors

12 / 439

5/8 Mini contactor relays
Accessories
2010 CA08103002Z-EN
Accessories
Accessories
Actuating
voltage
Circuit
symbol
For use with Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America
Us
V AC
Suppressor circuits
Varistor suppressor
24 - 48 AC DILE... VGDILE48
010320
10 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29096
UL CCN NLDX
CSA File No. 012528
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
110 - 250 AC VGDILE250
010336
380 - 415 AC VGDILE415
010463
RC-Suppressor
24 - 48 AC DILE... RCDILE48
044264
10 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR2
CSA File No. -
NA Certification UL Recognized
110 - 250 AC RCDILE250
046320
10 off
Notes For AC operated contactors 50 - 60 Hz.
DC operated contactor relays have an integrated suppressor.
Note drop-out delay.
For use with Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to North America
Mechanical interlocks
For mechanical connection of contactor and timing relays in
combinations.
0 mm distance between contactors.
DILE…
DILET…
V0DILE
026634
50 off UL/CSA certification not required
Mechanical interlock
For contactors with the same or different magnet system.
0 mm distance between contactors.
Mechanical lifespan 2.5 x 106 operations.
Additional auxiliary contact modules possible.
– DILE… MVDILE
010113
5 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR2
CSA File No. 012528
CSA Class No. 3211-07
NA Certification UL Recognized, CSA certified
Paralleling link
For parallel connection of contacts
– DILE…
DILE…
BT480 2)
052785
100 off Product Standards IEC/EN 60947-4-1; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29096
UL CCN NLDX
CSA File No. 012528
CSA Class No. 3211-07
NA Certification UL Listed, CSA certified
Consisting of two four-pole paralleling links.
DILEEM
DILEM12
DILEM
P1DILEM 2)
019095
5 off
Notes 1) Not protected against accidental contact as specified in VDE 0106 Part 100.
2) 4th pole can be broken off
4 pole: Ith = 60 A open
3 pole: Ith = 50 A open
AC-1 current carrying capacity of the open contactor increases by a factor of 2.5
Protected against accidental contact in accordance with VDE 0106 Part 100
A2
A1
A1
A2
VGDILE..., RCDILE..., MVDILE, BT480, P1DILEM HPL05008EN
