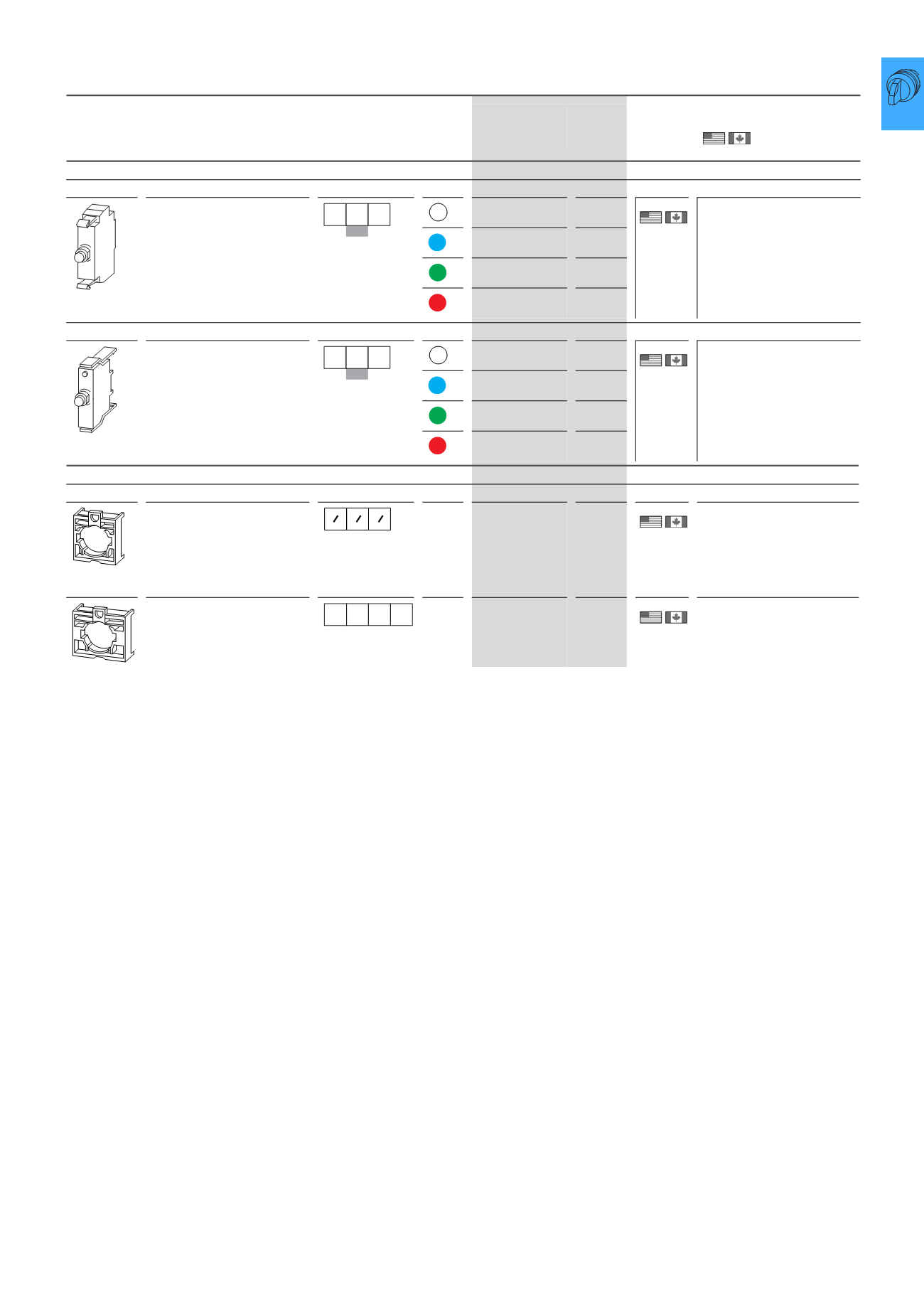

SmartWire-Darwin
SWD RMQ connections
2010 CA08103002Z-EN
2/69
SWDRMQconnections
Configuration Colour
LED
Part no.
Article no.
Price
See price
list
Std. pack Information relevant for export to
North America
LED elements
Front fixing
M22-SWD-LED-W
115966
20 off NA Certification Request filed
for UL and CSA
M22-SWD-LED-B
115967
M22-SWD-LED-G
115968
M22-SWD-LED-R
115969
Base fixing
M22-SWD-LEDC-W
115997
20 off NA Certification Request filed
for UL and CSA
M22-SWD-LEDC-B
115998
M22-SWD-LEDC-G
115999
M22-SWD-LEDC-R
116000
Fixing adapters
Front fixing
For 1 function element
M22-SWD-K… or LED element
M22-SWD-LED…
In addition 1 or 2 contact elements
M22-K... possible
Sequence number on fixing
adapter
– M22-A
216374
50 off UL/CSA certification not required
For 2 function elements
M22-SWD-K22…
For use with M22-WR4,
-WRJ4, -D4 in conjunction with
M22-(SWD)-K
– M22-SWD-A4
116016
10 off NA Certification Request filed
for UL and CSA
1
4
3
6
2
5
3 1 2
1
4
3
6
2
5
2 1 3 4
