2/62 RMQ-Titan pilot devices
RMQ-Titan
2010 CA08103002Z-EN

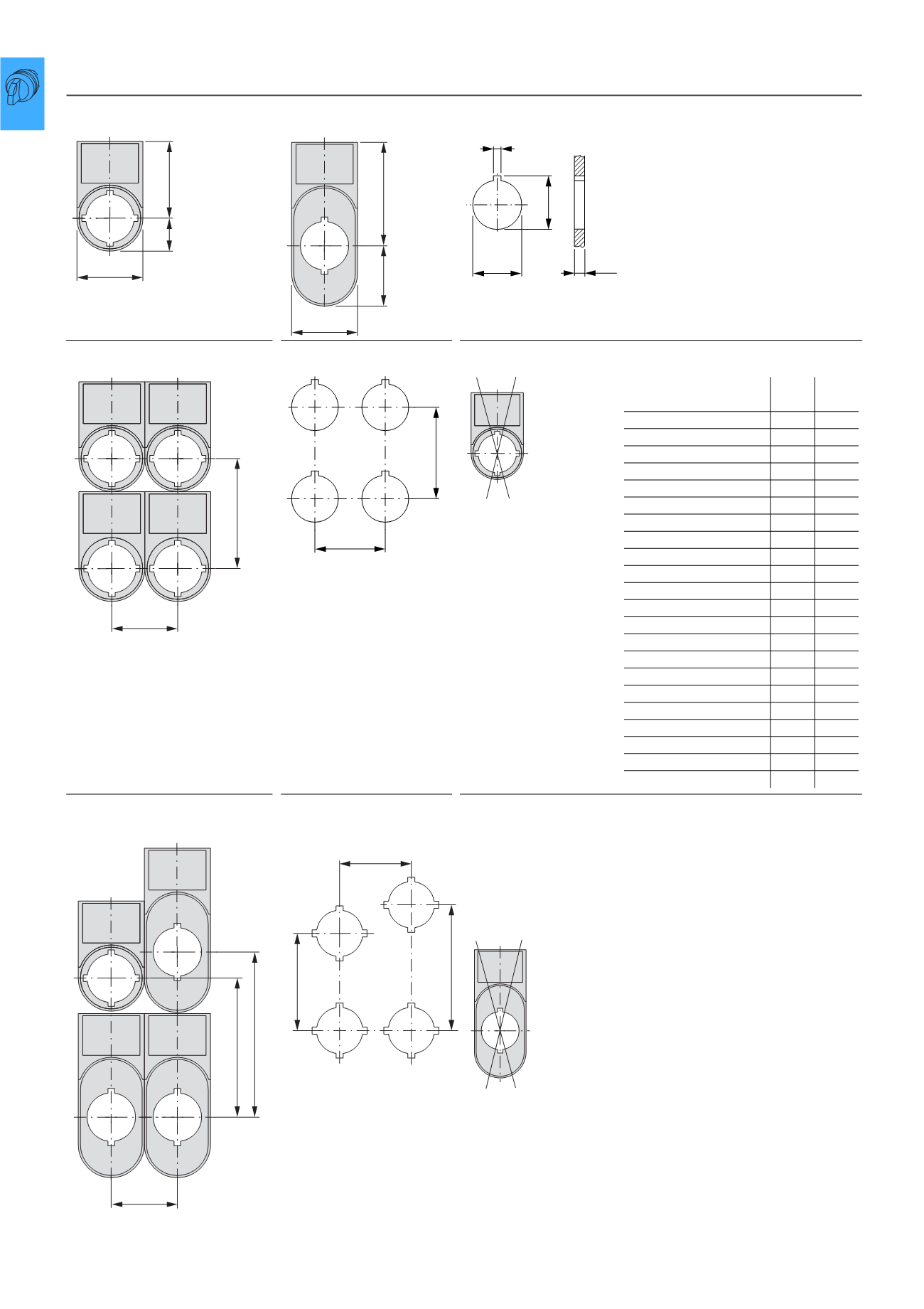

RMQ-TitanLabel mounts Mounting hole with lug slot
M22S-ST... M22S-STDD-X
Grid dimension to IEC/EN 60947 Grid dimension for various
combinations
Actuator diaphragm cannot be
combined with label mount
Grid dimension for M22-DD… Grid dimension for M22-DDL Pushbutton diaphragmM22-T-DD
Actuator diaphragm cannot be
combined with label mount
30
15
35
27.5
47
30
3.2
1 – 6
24.1
+0.40
22.3 +0.4
0
30
50
A
B
Part no. A f B f
mm mm
M22(N/O)‐…(IEC/EN 60947) 30 50
RMQ‐Silver min. 30 40
M22-D... + M22-T-D 33 40
M22‐D(R)P… 38 40
M22-PV... 45 45
M22-PV...45 55 55
M22-PV...60 70 70
M22‐PV(L) + M22‐PL‐PV 48 56
M22‐PV(L)(N/O…) + M22‐D… 33 40
M22-DDL... 30 55
M22-DDL... + M22-T-DD 33 58
M22-ST... 30 50
M22-STDD... 30 75
M22-CK... 30 45
M22-CLED... 30 45
M22-XAK... 90 90
M22-XZK... 33 52
M22-XBK... 60 60
M22-XYK... 50 50
M22-D4 60 60
M22-WR...4 50 50
M22‐W…J4 100 100
75
63
30
a f 30
b
f
44 b
f
58
M22
