Cam switches, switch-disconnectors
2010 CA08103002Z-EN
www.eaton.com4/87
FS-SOND

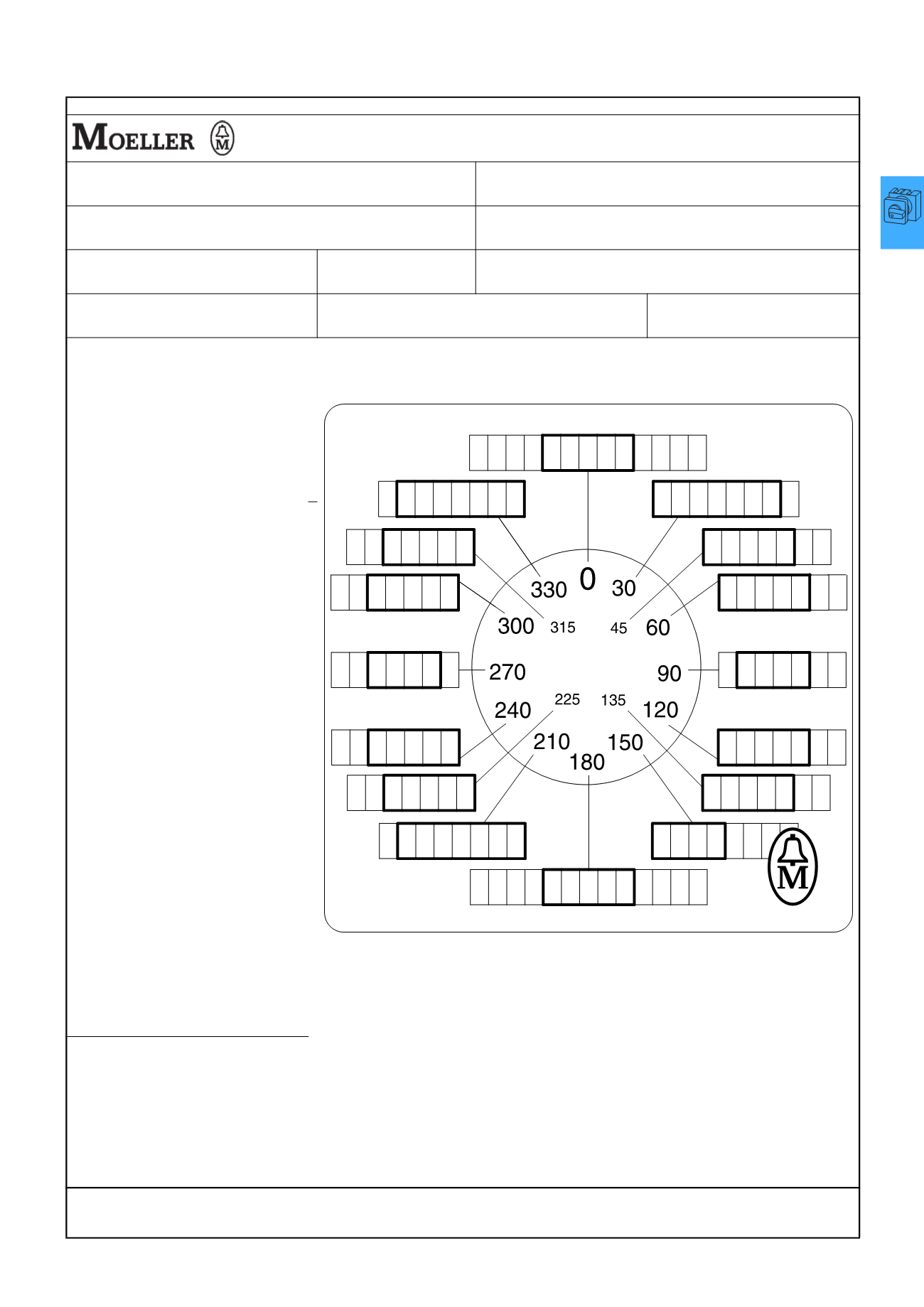

Ordering non-standard front plates
Binding document for ordering non-standard front plates for the first time
Order No.:
Item:
Office:
Name:
Customer:
Customer no.:
Quantity:
Euros/unit:
Date:
The text is always centered in the text block
Non-standard front plates
Inscription:
Front plate with black lettering
Insert text
Note the maximum number of characters
allowed outside the marked areas!
Part no.
□
FS-SOND-
T0 (T3, P1)
Letter height
≤ 2 Characters
≥ 2 Characters
4 mm
3 mm
□
FS-SOND-
P3 (T5B, T5)
Letter height
≤ 2 Characters
≥ 2 Characters
8 mm
5 mm
□
□
FS-SOND-TM-E
FS-SOND-TM-EZ
≤ 2 Characters approx.
≥ 2 Characters
3.5 mm
3 mm
For P1 and P3, fill out positions 270° and 0° only
Max. possible number of characters
Position
Degrees
TM-E TM-EZ T0/P1 T5/P3
Dimensions
0, 180
5
5
13 13
Part no.
Front plate size
30, 210, 330
8
7
8
8
45, 135, 225, 315 6
5
6
7
TM-.../E
29 x 29 mm (for frame 30 x 30)
60, 120, 240, 300 5
5
5
7
TM-.../EZ(-...)
29 x 29 mm (for frame 30 x 30)
90, 270
5
4
4
7
T0, T3, P1
45 x 45 mm (for frame 48 x 48)
150
4
4
8
8
P3, T5, T5B
84 x 84 mm (for frame 88 x 88)
Part no. for repeat orders (to be filled in by factory)
FS
.....................................................................................
