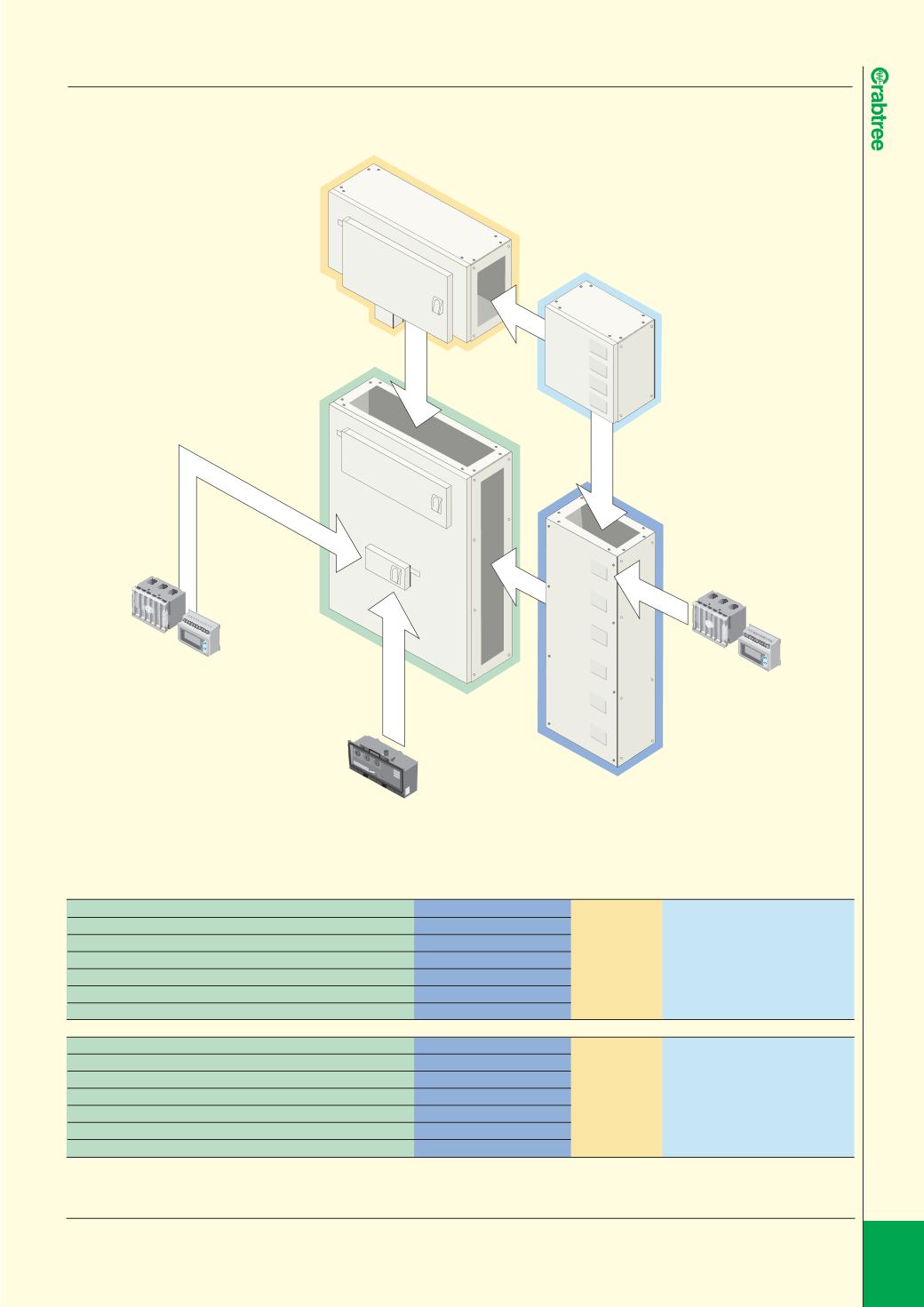

POWERSTAR 250
SE L ECT I ON GU I DE
15
17T22CWM
2 way Main Unit
Metering Cableway
17GG8CWMA
8 way Add-on
Metering Cableway
17GG408A
8 way 400A GG Frame
Add-on unit
17INMK400CT
Incomer Integral
Meter Pack
173T2402
2 way 400A Panelboard
with Switching unit
7 T340/OR3 400A
Overcurrent Release
17OUMK250CT
Outgoing Meter Pack
(requires one voltage supply
cable loom per bank of meters)
POWERSTAR 250 SELECTION GUIDE l
An appropriate overcurrent release or switch disconnector module must be selected for Powerstar 250 Panelboards
Each bank of outgoing main or add on unit meter packs to must be installed in conjunction with a voltage supply cable loom (17OUMKCL)
Product list numbers and descriptions can be found within the body of the catalogue
400A 3P with 400A 4P with 630A 3P with 630A 4P with Main Unit Main Unit Add-on
switching switching switching switching Standard Metering Add-on Standard Metering
unit unit unit unit Cableways Cableways Add-on units Cableways Cableways
173T2402 - - - 17T22CW 17T22CWM
T2 frame
173T2404 - - - 17T24CW 17T24CWM
17T2408A
17 T28CWA 17GG12CWMA
173T2406 - - - 17T26CW 17T26CWM
GG frame
17GG404A
17GG4CWA 17GG4CWMA
- 174T2402 - - 17T22CW 17T22CWM
17GG408A
17GG8CWA 17GG8CWMA
- 174T2404 - - 17T24CW 17T24CWM
17GG4012A
17GG12CWA 17GG12CWMA
- 174T2406 - - 17T26CW 17T26CWM
- - 173T2632 - 17T22CW 17T22CWM
- - 173T2634 - 17T24CW 17T24CWM
- - 173T2636 - 17T26CW 17T26CWM
17T2638A 17 T28CWA 17GG12CWMA
- - - 174T2632 17T22CW 17T22CWM
- - - 174T2634 17T24CW 17T24CWM
- - - 174T2636 17T26CW 17T26CWM
