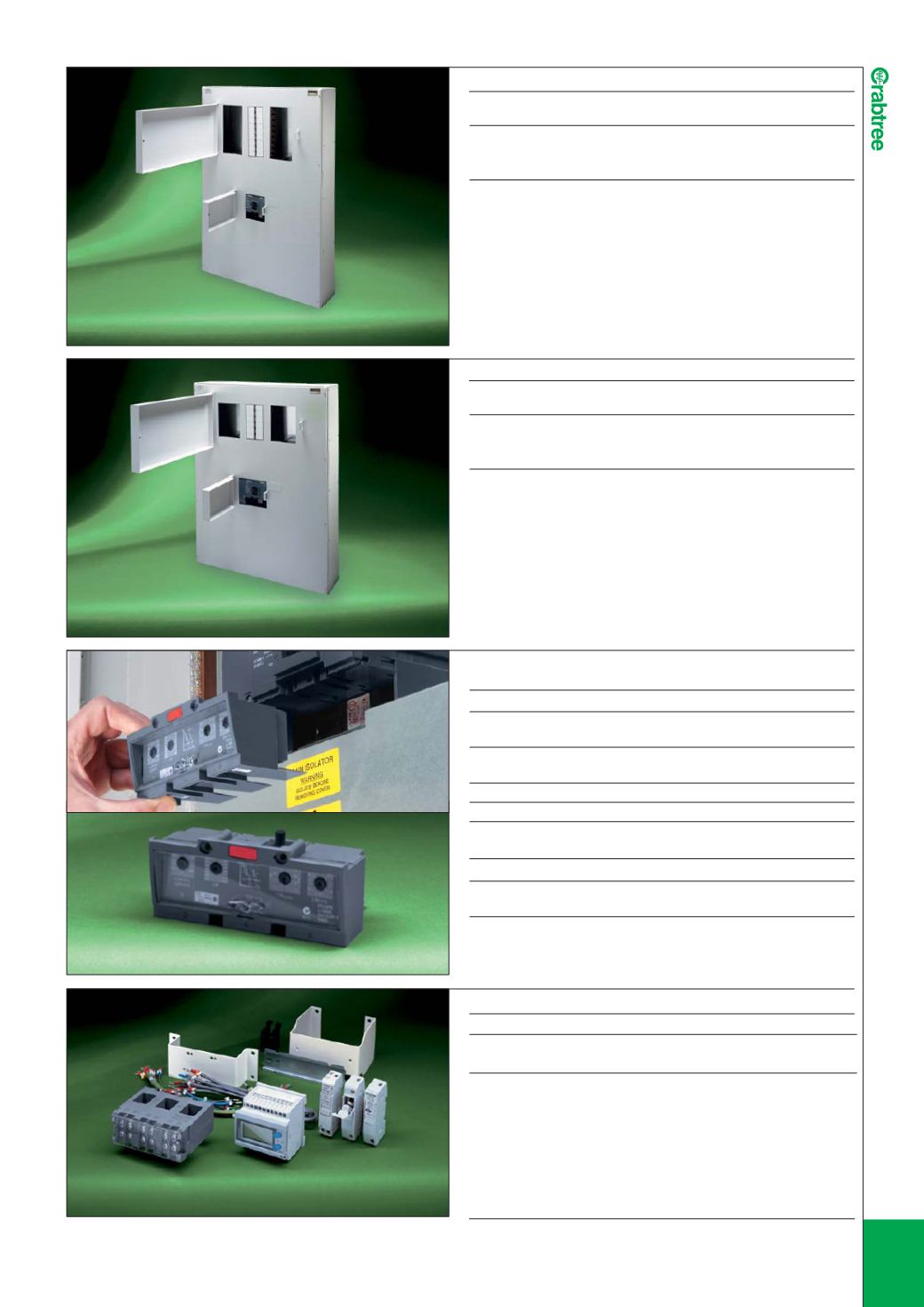

13 / 20
OVERCURRENT RELEASE AND SWITCH
DISCONNECTOR MODULES FOR TP SWITCHING UNIT
l
Rated Current (
I
n) Overcurrent adjustment (0.4 to 1x
I
n) LIST No
400
A
160
A .... 400A
7
T340/OR3
630
A
250
A .... 630A
7
T363/OR3
•
Adjustable overcurrent release
•
Adjustable short circuit release
630
A
Switch Disconnector
7
T363/SD
POWERSTAR 250
PANE LBOARDS & I NCOMI NG DEV I CE MODUL ES
11
OVERCURRENT RELEASE MODULES FOR 4P
SWITCHING UNIT
l
Rated Current (
I
n) Overcurrent adjustment (0.4 to 1x
I
n) LIST No
400
A
160
A .... 400A
7
T340/OR4
630
A
250
A .... 630A
7
T363/OR4
•
Adjustable overcurrent release
•
Adjustable short circuit release
•
Protected neutral function
• 4
P Switch Disconnector available upon request
173
T2634
174
T2634
7
T363/OR4
17
INMR630CT
630
A PANELBOARD WITH TP SWITCHING UNIT
l
Outgoing TP Height
ways (mm) LIST No
630
A
2 1055
173
T2632
4 1160
173
T2634
6 1265
173
T2636
• 630
A rated Panelboards
• 900
mm wide x 250mm deep (including door)
•
Busbar fault rated 50kA for 1 sec
• 250
A outgoing TP MCCBs (T2 frame size)
•
IP3X (door closed)
•
Twin 240mm
2
4
Core Maximum on Incoming Terminals
•
M10 cable lugs maximum 30mm wide
•
BSEN/IEC 61439-2: 2009
Designation of the incoming device is defined by the selection of an
overcurrent release or Switch Disconnector module.
THE SWITCHING UNIT MUST BE FITTED WITH ONE OF THESE MODULES.
630
A PANELBOARD WITH 4P SWITCHING UNIT
l
Outgoing TP Height
ways (mm) LIST No
630
A
2 1055
174
T2632
4 1160
174
T2634
6 1265
174
T2636
• 630
A rated Panelboards
• 900
mm wide x 250mm deep (including door)
•
Busbar fault rated 50kA for 1 sec
• 250
A outgoing TP MCCBs (T2 frame size)
•
IP3X (door closed)
•
Twin 240mm
2
4
Core Maximum on Incoming Terminals
•
M10 cable lugs maximum 30mm wide
•
BSEN/IEC 61439-2: 2009
Designation of the incoming device is defined by the selection of an
overcurrent release.
THE SWITCHING UNIT MUST BE FITTED WITH ONE OF THESE MODULES.
INCOMER INTEGRAL METER PACKS
I
Rating Description LIST No
630
A Integral 3 Ph CT operated Energy meter
17
INMK630CT
630
A Integral 3 Ph CT operated Energy meter MID
17
INMK630MCT
•
Integral meter packs include a digital energy meter, current
transformers, fuses, wiring loom and mounting base plates
