RCD INCOMER
CAT REF RCD RATING MCB WAYS
NHRS206/40 40A 30mA 2
NHRS206/63 63A 30mA 2
NHRS506 100A 30mA 5
NHRS806 100A 30mA 8
NHRS1106 100A 30mA 11
NHRM206/40 40A 100mA 2
NHRM206/63 63A 100mA 2
NHRM506 100A 100mA 5
NHRM806 100A 100mA 8
NHRM1106 100A 100mA 11
NHTM506 100A 100mA time delay 5
NHTM806 100A 100mA time delay 8
NHTM1106 100A 100mA time delay 11
9
NH Metal
Cased Range
METAL - DUAL RCD 2x 80A 30mA RCD
MS RCD 1 RCD 2 TOTAL No of
CAT REF WAYS MCB WAYS MCB WAYS MCB WAYS
NHISS3406 - 3 4 7
NHISS4606 - 4 6 10
NHISS5506 - 5 5 10
NHISS8706 - 7 8 15
METAL - FLEXIBLE DUAL RCD 2x 80A 30mA RCD
MS RCD 1 RCD 2 TOTAL No of
CAT REF WAYS MCB WAYS MCB WAYS MCB WAYS
NHISS10SLM - 6 Max 6 Max 10
NHISS15SLM - 9 Max 9 Max 15

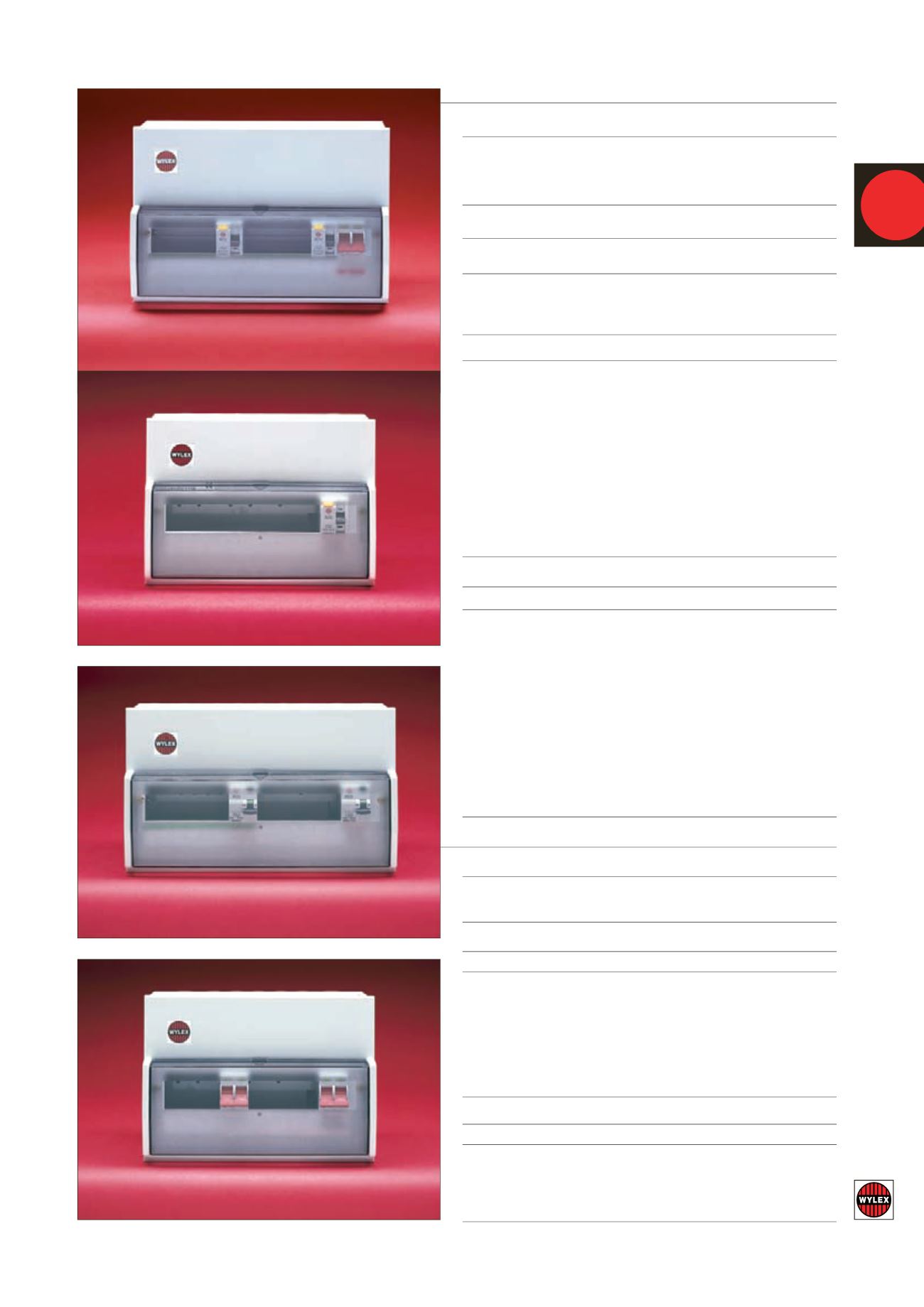

NHISS5506
NHRS1106
NHSTM9SLM
SPLIT LOADWITHTIME DELAY RCD INCOMER
CAT REF RCD RATING MCB WAYS TD RCD RATING *WAYS
NHSTM3606 80A 30mA 3 100A 100mA 6
NHSTM4506 80A 30mA 4 100A 100mA 5
NHSTM5406 80A 30mA 5 100A 100mA 4
NHSTM6306 80A 30mA 6 100A 100mA 3
NHSTM3906 80A 30mA 3 100A 100mA 9
NHSTM4806 80A 30mA 4 100A 100mA 8
NHSTM6606 80A 30mA 6 100A 100mA 6
NHSTM7506 80A 30mA 7 100A 100mA 5
NHSTM9306 80A 30mA 9 100A 100mA 3
NHSTM8906 80A 30mA 8 100A 100mA 9
NHSTM9806 80A 30mA 9 100A 100mA 8
NHSTM71006 80A 30mA 7 100A 100mA 10
NHSTM61106 80A 30mA 6 100A 100mA 11
NHSTM51206 80A 30mA 5 100A 100mA 12
FLEXIBLE SPLIT LOAD CONSUMER UNITS (TIME DELAY)
CAT REF
RCD RATING MCB WAYS TD RCD
*
WAYS
*
WAYS
MIN MAX MIN MAX TOTAL
NHSTM9SLM 80A 30mA 3 6 100A 100mA 3 6 9
NHSTM12SLM 80A 30mA 3 9 100A 100mA 3 9 12
NHSTM17SLM 80A 30mA 5 12 100A 100mA 5 12 17
DUAL TARIFF 100A MAIN SWITCH & 100A MAIN SWITCH
CAT REF MS RATING *WAYS MS RATING *WAYS
NHIIX2406 63A 2 100A 4
NHIIX3306 100A 3 100A 3
NHIIX4506 100A 4 100A 5
NHIIX7506 100A 7 100A 5
NHIIX6606 100A 6 100A 6
NHIIX5706 100A 5 100A 7
NHIIX8906 100A 8 100A 9
NHIIX51206 100A 5 100A 12
NHIIX11606 100A 11 100A 6
DUAL TARIFF 100A MAIN SWITCH & 100A 30mA RCD SWITCH
CAT REF RCD RATING
MCB WAYSMS RATING*WAYS
NHRSX5706 100A 30mA 5 100A 7
NHRSX6606 100A 30mA 5 100A 6
NHRSX7506 100A 30mA 7 100A 5
NHRSX8906 100A 30mA 8 100A 9
NHRSX9806 100A 30mA 9 100A 8
* RCBOs or MCBs may be fitted to unprotected ways depending upon the
installation requirements see page 59.
