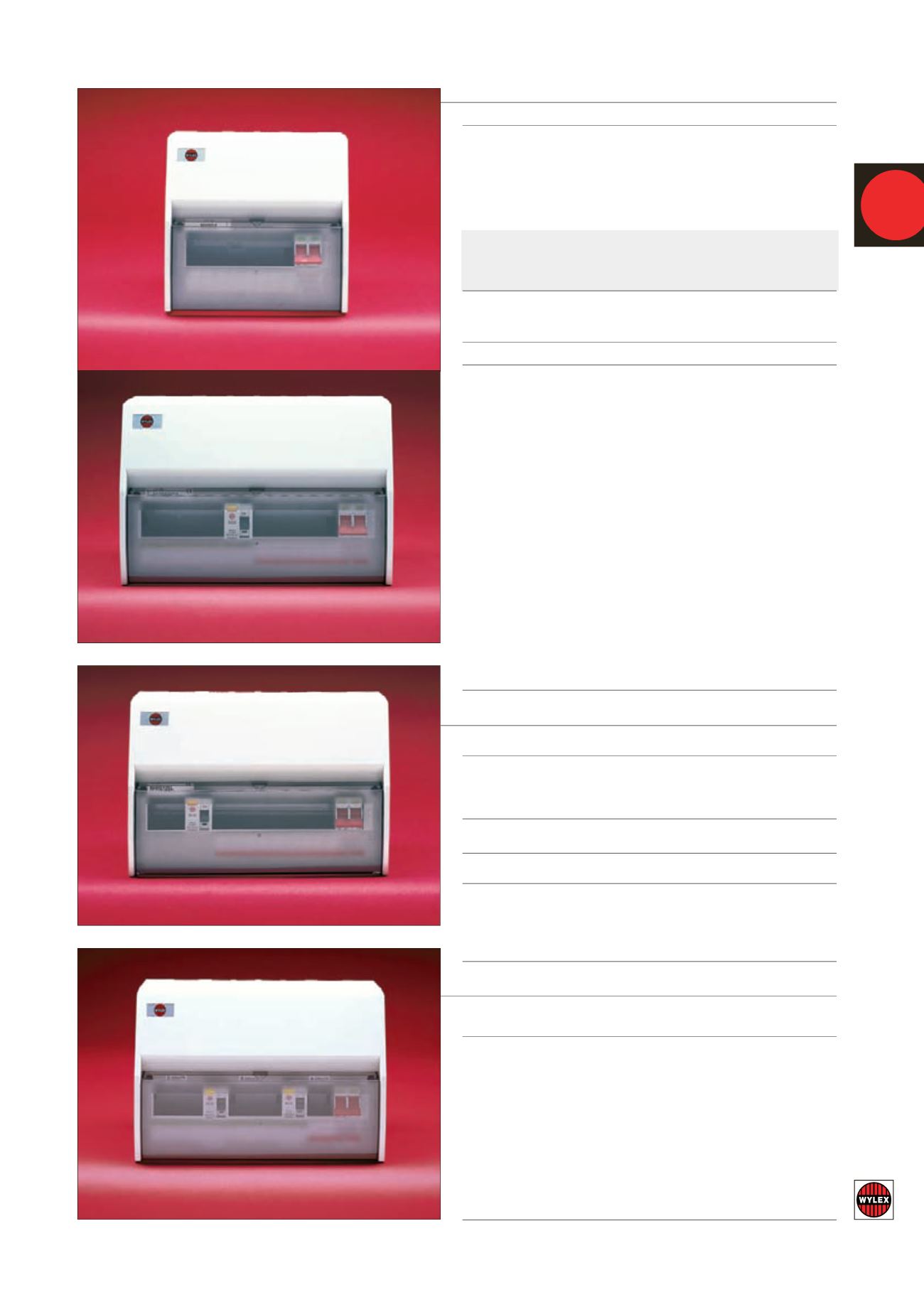

5 / 81
NH804
NHRS6604
NHRS12SL
NHRS44204
With DIN
Accessory
Section
5
NH Insulated Range
MAIN SWITCH
CAT REF MS RATING * WAYS DINMODULES
NH204/40 40A 2
NH204/63 63A 2
NH504 100A 5
NH804 100A 8
NH1104 100A 11
NH1404 100A 14
NH1904 100A 19
NH504+3 100A 5 3
NH804+3 100A 8 3
NH804+6 100A 8 6
NH1104+3 100A 11 3
Flexible - comb busbar and full DIN rail MS units available
Suffix catalogue ref with FLEX e.g. NH804FLEX
SPLIT LOAD
CAT REF RCD RATING MCB WAYS MS RATING * WAYS
NHRS2404 80A 30mA 2 100A 4
NHRS3304 80A 30mA 3 100A 3
NHRS4204 80A 30mA 4 100A 2
NHRS5404 80A 30mA 5 100A 4
NHRS4504 80A 30mA 4 100A 5
NHRS3604 80A 30mA 3 100A 6
NHRS6304 80A 30mA 6 100A 3
NHRS3904 80A 30mA 3 100A 9
NHRS4804 80A 30mA 4 100A 8
NHRS6604 80A 30mA 6 100A 6
NHRS5704 80A 30mA 5 100A 7
NHRS7504 80A 30mA 7 100A 5
NHRS8404 80A 30mA 8 100A 4
NHRS9304 80A 30mA 9 100A 3
NHRS12504 80A 30mA 12 100A 5
NHRS11604 80A 30mA 11 100A 6
NHRS10704 80A 30mA 10 100A 7
NHRS61104 80A 30mA 6 100A 11
NHRS71004 80A 30mA 7 100A 10
NHRS9804 80A 30mA 9 100A 8
NHRS8904 80A 30mA 8 100A 9
NHRS51204 80A 30mA 5 100A 12
FLEXIBLE SPLIT LOAD CONSUMER UNITS
CAT REF RCD RATING MCB WAYS MS RATING * WAYS * WAYS
MIN MAX TOTAL
NHRS6SL 80A 30mA 2 4 100A 2 4 6
NHRS9SL 80A 30mA 3 6 100A 3 6 9
NHRS12SL 80A 30mA 3 9 100A 3 9 12
NHRS17SL 80A 30mA 5 12 100A 5 12 17
SPLIT LOADWITH DIN RAIL ACCESSORY SECTION
CAT REF RCD RATING MCB WAYS MS RATING * WAYS NO OF
MODULES
NHRS6504+6 80A 30mA 6 100A 5 6
NHRS5604+6 80A 30mA 5 100A 6 6
NHRS7704+3 80A 30mA 7 100A 7 3
NHRS8604+3 80A 30mA 8 100A 6 3
NHRS6804+3 80A 30mA 6 100A 8 3
HIGH INTEGRITY
CAT REF 30mA 30mA
MCB MCB MS * MS
WAYS WAYS RATING WAYS TOTAL *
NHRS23204 2 3 100A 2 7
NHRS44204 4 4 100A 2 10
NHRS43304 4 3 100A 3 10
NHRS33404 3 3 100A 4 10
NHRS76204 7 6 100A 2 15
NHRS66304 6 6 100A 3 15
NHRS46504 4 6 100A 5 15
NHRS55504 5 5 100A 5 15
NHRS45604 4 5 100A 6 15
NHRS7SSLHI 2 to 4 2 to 4 100A 1 to 4 7
NHRS10SSLHI 2 to 5 2 to 5 100A 2 to 5 10
NHRS15SSLHI 2 to 9 2 to 9 100A 2 to 9 15
* RCBOs or MCBs may be fitted to unprotected ways depending upon the
installation requirements see page 59.
