11 / 81
DIN RAIL MODULAR DEVICES FOR USE IN + UNITS & FLEXIBLE UNITS
CAT REF PRODUCT MODULE
ME242/230 Staircase timer 1
SMSCD11 Digital time clock 1 channel 1xNO/NC contact 16A 1
TMSCD21 Digital time clock 1 channel 1xNO contact 16A 2
TMTCD22 Digital time clock 2 channel 24 hour 7Day prog 2
MESB-20NO 20A 2 pole contactor 1
MESB-24NO 24A 4 pole contactor 2
MESB-40NO 40A 4 pole contactor 3
MESB-63NO 63A 4 pole contactor 3
MTS8 Bell transformer 12V 8VA 2
MTS6/1 Bell transformer 6V 8VA 1
MTS8/1 Bell transformer 8V 8VA 1
MTS12/1 Bell transformer 12V 8VA 1
TRMSCT31 Disc type time clock 1 channel 1xNC contact 16A 3
TRMSCT11 Disc type time clock 1 channel 1xNC contact 16A 3
SMSCT11 Disc type time clock 1 channel 1xNO contact 16A 1
When fitting in NH Consumer Units contactWylex technical services department
NH ACCESSORIES
CAT REF PRODUCT MODULE
NHB1PP Blanking plate - Busbar & cover 1
NH00PP Blanking plate -Twist fit 1
NH00 Blanking plate - Push fit 1
NHET25 25mm EarthTerminal
-
NHLDK Visor locking kit
WPL Padlock for NHLDK & MCBLDX
NH13CBKIT 13 pin comb busbar c/w labels and 5 protection covers
11
NH Consumer Unit Outgoing Devices & Control
Modules
MINIATURE CIRCUIT BREAKERS (6KA)
B CURVE C CURVE RATING POLES MODULES
NHXB06 NHXC06 6A 1 1
NHXB10 NHXC10 10A 1 1
NHXB16 NHXC16 16A 1 1
NHXB20 NHXC20 20A 1 1
NHXB32 NHXC32 32A 1 1
NHXB40 NHXC40 40A 1 1
NHXB50 NHXC50 50A 1 1
ACCESSORIES
MCBLDX MCB Locking device
WPL Padlock for MCBLDX
MODULAR CARTRIDGE FUSE HOLDERSWITH FUSE
CAT REF RATING POLES MODULE SPARE FUSE
NSC05 5A 1 1 CFL05
NSC10 10A 1 1 CFL10
NSC15 15A 1 1 CFL15
NSC20 20A 1 1 CFL20
NSC30 30A 1 1 CFL30
NSC35 35A 1 2 CFL35
NSC40 40A 1 2 CFL40
NSC45 45A 1 2 CFL45
NSBS RCBO (combined MCB/RCD device)
B CURVE C CURVE
CURRENT RATING RCD RATING POLES MODULES
NHXSBS1B06 NHXSBS1C06 6A 30mA 1 1
NHXSBS1B10 NHXSBS1C10 10A 30mA 1 1
NHXSBS1B16 NHXSBS1C16 16A 30mA 1 1
NHXSBS1B20 NHXSBS1C20 20A 30mA 1 1
NHXSBS1B32 NHXSBS1C32 32A 30mA 1 1
NHXSBS1B40 NHXSBS1C40 40A 30mA 1 1
NHXSBS1B50 NHXSBS1C50 50A 30mA 1 1
-
WRCBL6C2+ 6A 30mA 2 2
-
WRCBL10C2+ 10A 30mA 2 2
-
WRCBL16C2+ 16A 30mA 2 2
-
WRCBL20C2+ 20A 30mA 2 2
-
WRCBL32C2+ 32A 30mA 2 2
-
WRCBL40C2+ 40A 30mA 2 2
+ Suitable for flexible comb busbar consumer units only

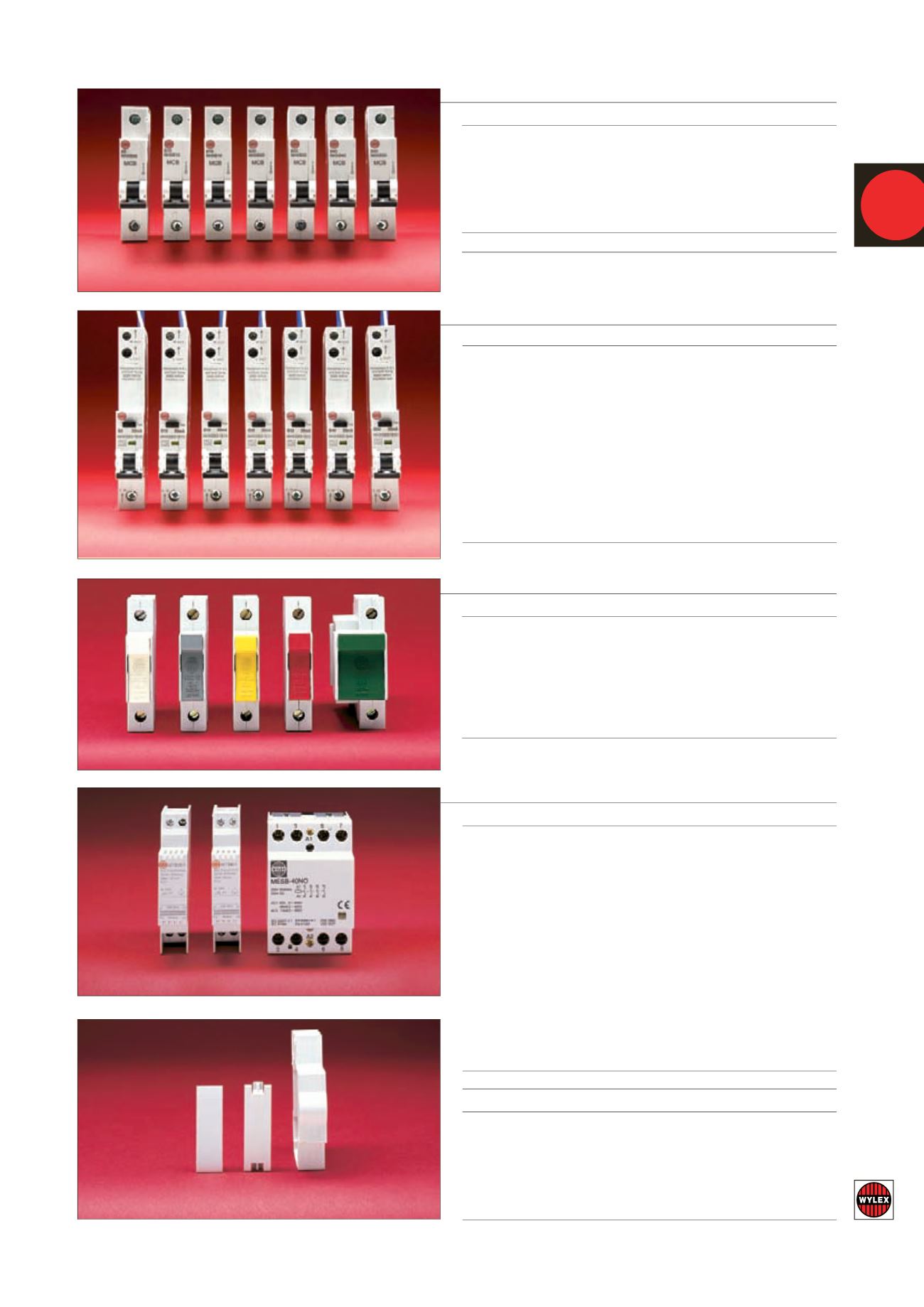

NHXB06 NHXB16 NHXB32 NHXB50
NHXB10 NHXB20 NHXB40
NSC05 NSC10 NSC20 NSC30 NSC45
NH00 NH00PP NHB1PP
MTS12/1 MTS8/1 MESB-40NO
NHXSBS1B06 NHXSBS1B16 NHXSBS1B32 NHXSBS1B50
NHXSBS1B10 NHXSBS1B20 NHXSBS1B40
